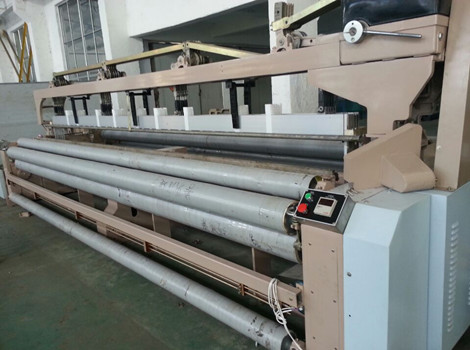

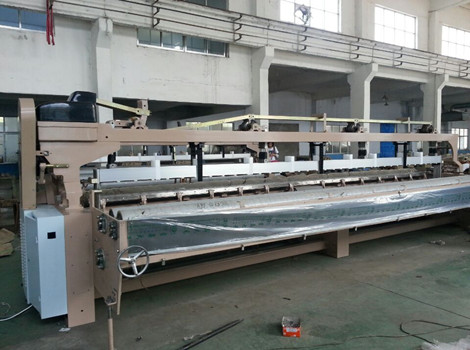

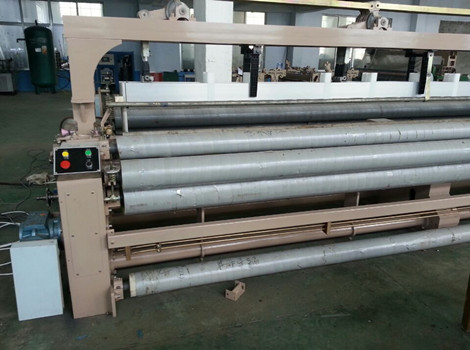

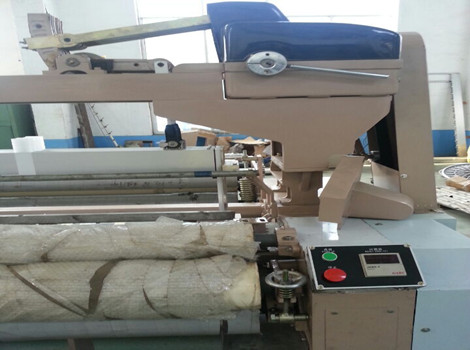

Dobby Shedding Water jet loom for PP fabric
PP fabric weaving machineThis model is developed with combination of Korea plastic weaving technology and Tsudakoma high-speed weaving machine.
It is characterized by high speed, high efficiency, fine flatness of fabric, high density, wide application range, easy adjustment, low maintenance cost and low cost of labor and power.
This model is developed with combination of Korea plastic weaving technology and Tsudakoma high-speed weaving machine.
It is characterized by high speed, high efficiency, fine flatness of fabric,high density, wide application range, easy adjustment,
low maintenancecost and low cost of labor and power.
The model is designed with plain and cam shedding, accompanied by single nozzle and electric feeder.
It is mainly designed to produceplain and satin plastic fabric which is wisely used to manufacture such
packing material as collection bag, tarpaulin, woven bags and geo textiles.
| The reed | 230~450cm according the user can set smple making |
| Open mode | Flat shedding,cam shedding |
| Driving mode | Crank four connecting rod |
| Let-off way | Direct positive feeding type yarn |
| Dynamic force | The main motor- 1.8kw or 2.2 kw |
| control motor-1.15kw | |
| Electric cutting-1kw | |
| Volume | Tension automatich control motor |
| Weft interting way | Mechanical or electronic weft type |
| Desiccant way | squeeze water and water |
| Design Speed | Flat Shedding 190cm -700~900rpm |
| 230cm - 600~800rpm | |
| | 280cm - 500~ 700rpm |
| | 350cm - 400~ 500rpm |
| 450cm - 280~ 300rpm | |
| | Cam shedding:190cm 600~ 800rpm |
| 280cm 400~ 600rpm | |
| Wove wire | 500D-2000D |
