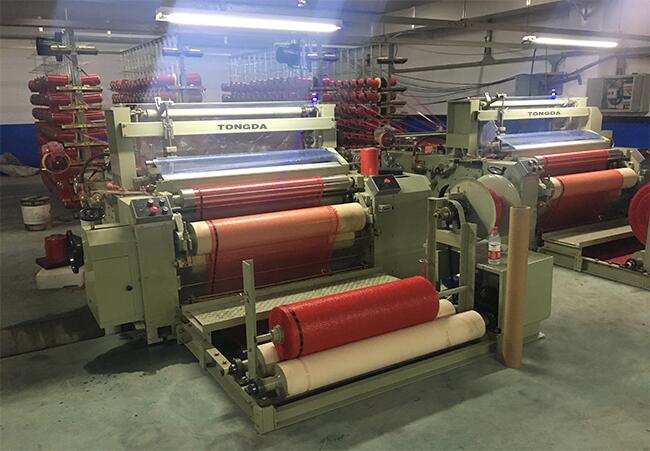

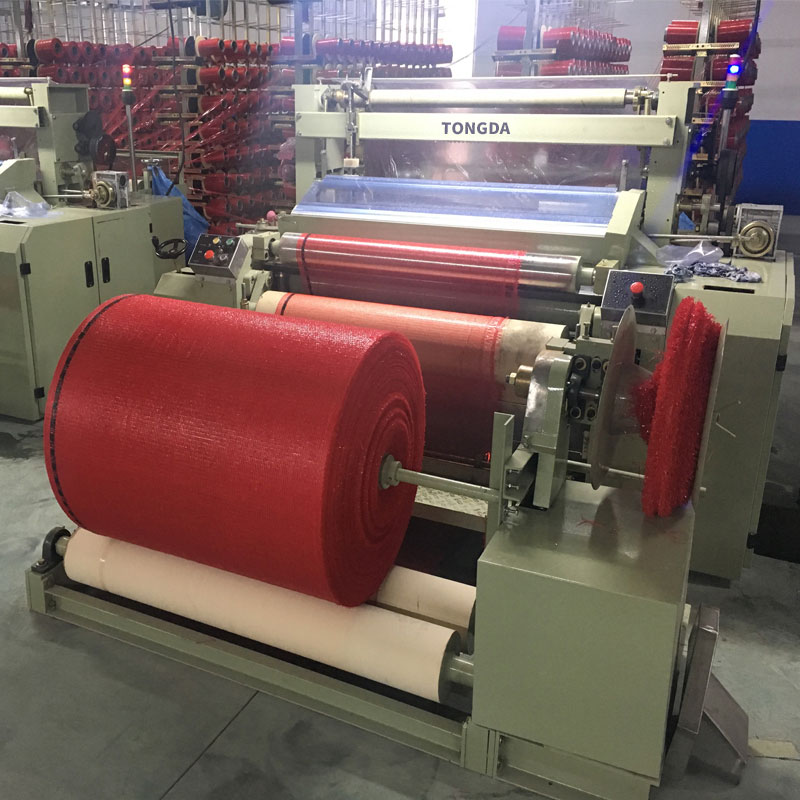

TDP-501 PP PE for Leno Fabric & Onion Bag Weaving Machine
Water jet loomTDP-501 is a new type water jet loom,which could be uesd to produce leno of PP or PE.
Great technology Performance:
Strong frame and loom body,electronic feeder and automatic weft density change ensure smooth running,high efficiency and better fabric quality. This design cuts the production cost and makes the operation and maintenance much easier.
High cost performance:
Economic configurations use mechanical feeder and weft density change by gear
TDP-501 is a new type water jet loom,which could be uesd to produce leno of PP or PE.The final products can be used into packaging of onion, garlic, fruits etc.
Great technology Performance:
Strong frame and loom body,electronic feeder and automatic weft density change ensure smooth running,high efficiency and better fabric quality. This design cuts the production cost and makes the operation and maintenance much easier.
High cost performance:
Economic configurations use mechanical feeder and weft density change by gear

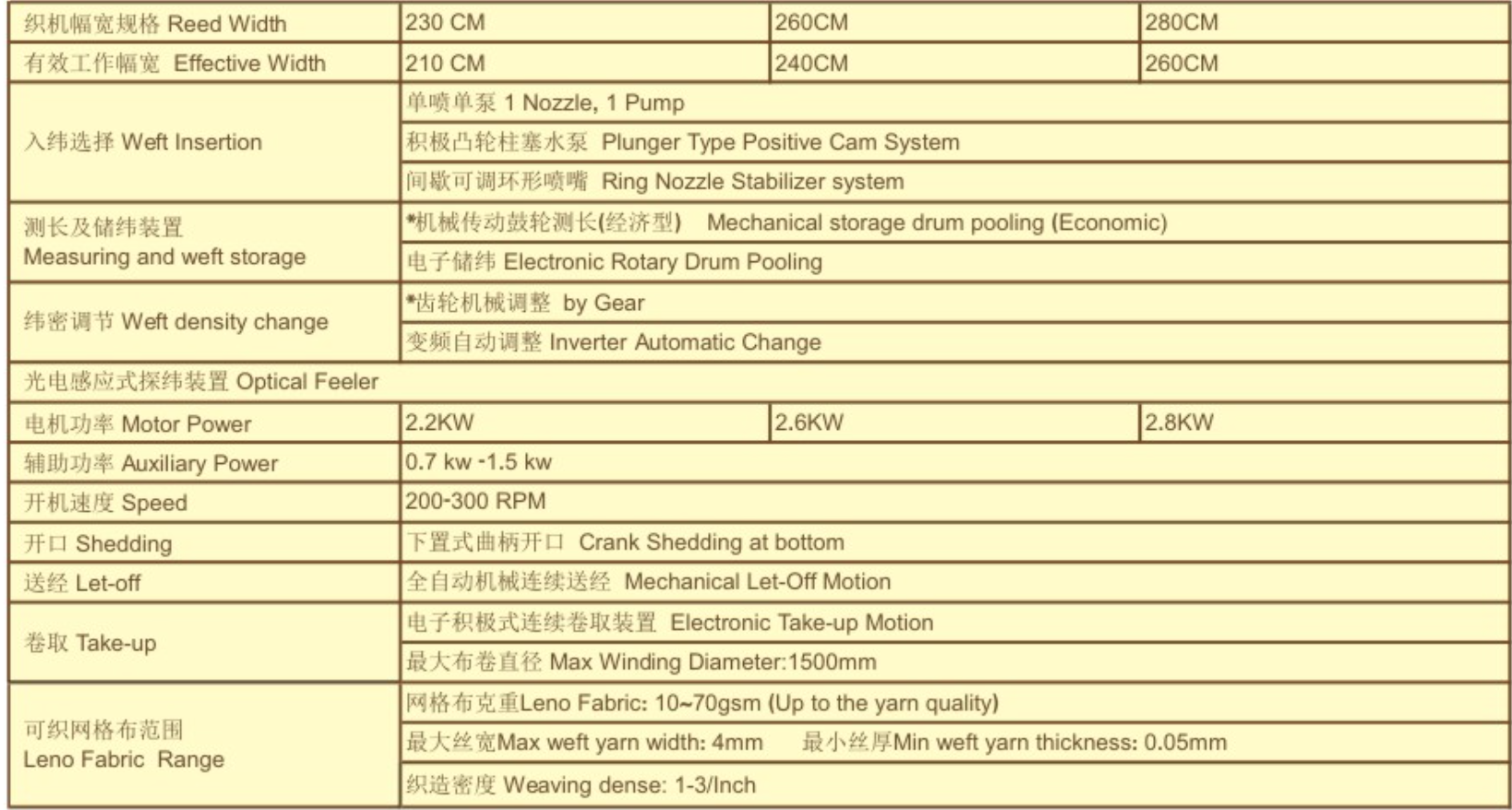

1、Main motor power | 150CM Reed~ 2.2 KW |
2、 Speed | 150CM Reed/350~450 rpm |
3、Fabric Range | Fabric weight：10～70gsm (According the the yarn quality) |
Weft density: 1~3/inch Warp density: 6/inch | |
Max weft yarn width: 4mm Min weft yarn thickness: 0.05mm | |
Weft feeding is electronic ROJ feeder from Italy | |
4、Take up | A、 Out of the loom |
B、 Maximum take up diameter: 1500 mm | |
5、Output (in 24 hours based on 6 mesh/according to customer yarn) | 3000-3600M |
6、Water Consumption (in 24 hours/ Recyclable) | 5~7m³ |
