SPINNING
Cotton waste recycling machine
Supporting you in the recycling of textile waste
TONGDA high quality products
Promoting sustainable development
Operational stability

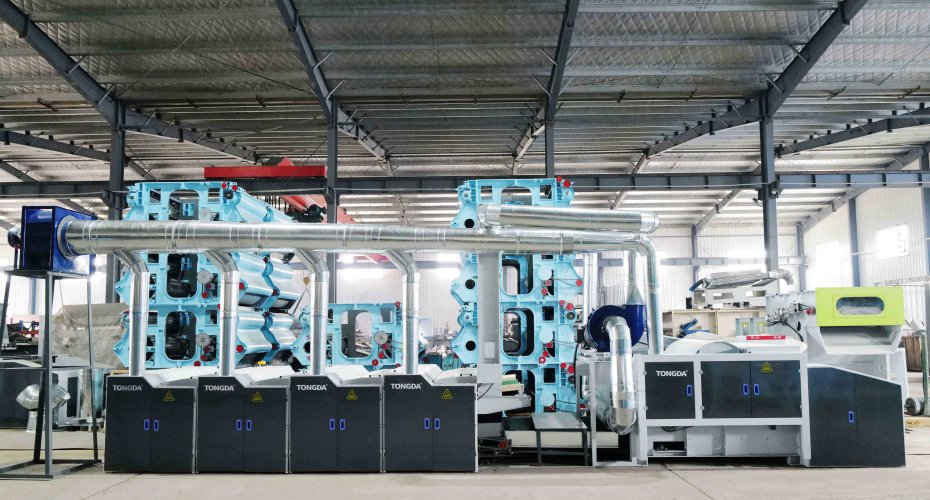

TD-1390 Opening Recycling Line
main feature :
This machine is mainly to process all kinds of waste cotton, clips, leftover, waste yarn, thread, flock and flax etc.
This machine is TD630 opening machine combined with mode1390 cotton recycling machine, that make the bestresult.
Product details
Airflow recovery instead of bamboo and rubber belt, clean,safe and anti-fireFrequency conversion instead of chain and sprocket drive,High efficiency, energy saving and environmentalprotection.
Main technical parameters
Opening machine Overal dimensions (installed safety caseLxWxH) | 7500mm×2860mm×1380mm |
Recycling machine Overal dimensions (installed safety case LxWxH) | 8500mm×2600mm×1200mm |
Weight | 1500kg |
Output | 280-400kg/h, depending on different material |
Capacity of removing impurities | 6%-10% |
Cylinder diameter | 780-780-300-300-300-300-300-300mm |
Cylinder rotation speed | 960-1100-1890-1890-1890-1890-1890-1890rpm/min |
Power (kw) | 45-37-11-7.5-7.5-7.5-7.5-7.5kw |
Wire of cylinder | Card clothing/pin/Utype |
