TD1816 High-speed digital printing machine for Textile fabrics

main feature :

1Printing Control System

2Belt Cleaning System

3High Precision Belt moving System

4"A frame" Feeding System

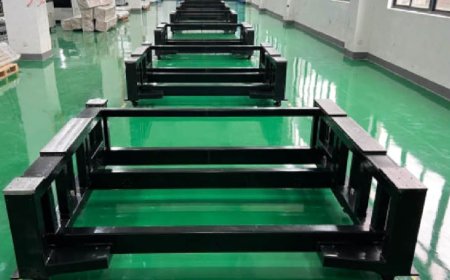

5Precision, solid and stable structure

6Automatic Ink Supply System, Easy And Reliable

-1 拷贝

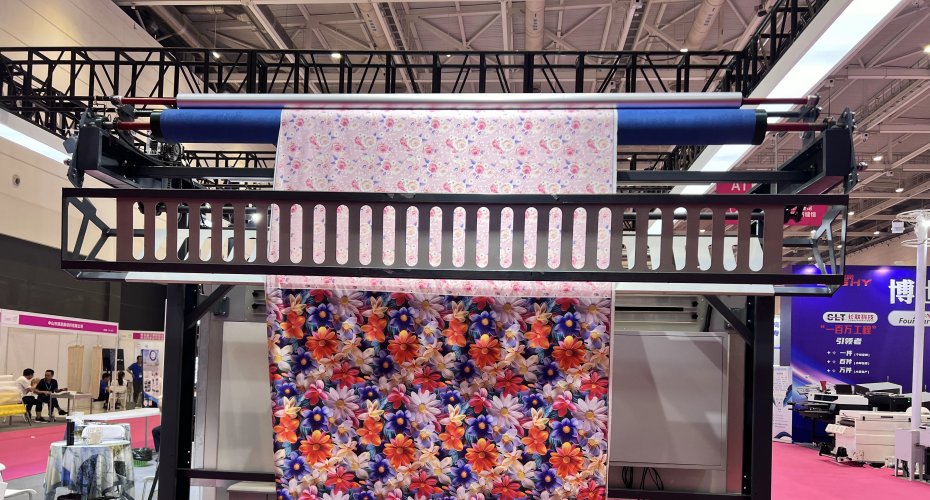

20240703-103307
20240703-103404
20240703-103337
20240703-103453
20240703-103432
20240703-103528
20240703-103351

Product details

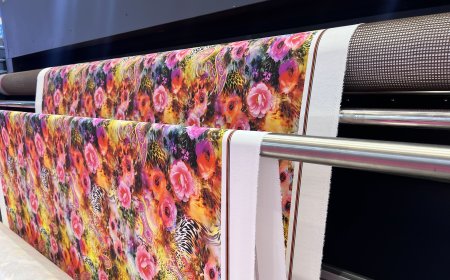

Suitable for all kinds of knitted / woven fabrics

(Cotton,silk,wool,polyester,acetate,nylon,blended fabric,linen,etc)

Main technical parameters

Product mode
TD1816

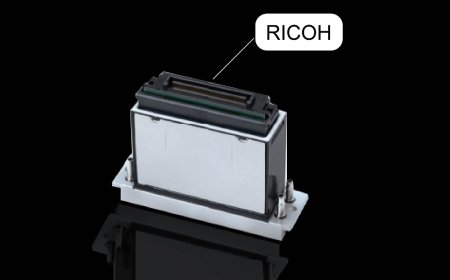

Print head

Ricoh GEN5E/GEN6
Fabric conveyance modeAdhesive belt with cleaning and heating system
Effective print width1800/2200/2600mm
Maximum printing resolution2400DPI
Speed

Gen6

1 pass:540m2/h

2 pass:330m2/h

RIP softwareNeostampa/Texprint
Printing part introduction

Automatic negative pressure ink supply, automatic car lifting,automatic positive pressure cleaning, automatic moisturizing,sprinkler anti-collision system.

Main ink tank10L
Belt system introduction

Automatic drying and winding system, automatic cleaning guide belt system, anti-pressure roller print, synchronous pressure roller

Dryer unitSingle-layer tunnel oven (optional steam configuration)

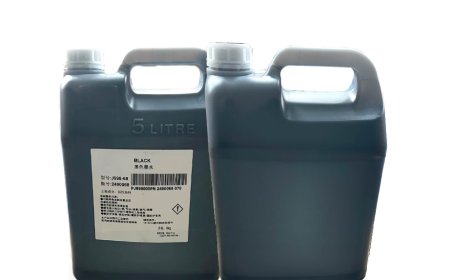

Ink Typereactive/disperse/acid/pigment ink
InterfacePower voltageOptical fiber
Print head height

Height adjustable 1.5-30mm,to adapt medium

of different thickness

Power voltage380V, 3L+N+G(with independent reliable effective earth wire)
Power frequency50HZ/60HZ+1HZ
Power Consumption

Print 16KW, Oven 20KW (steam oven 4KW)

Workshop Condition

Temperature:20-30°C, humidity: 50-65%

Effective width





Size


1800mm


2200mm

(Effective width2180mm)

2600mm
Printer4165mm*2200mm*1600mm

(L*W*H)

4615mm*2200mm*1700mm

(L*W*H)

5195mm*2200mm*1750mm(L*W*H)
Dryer
2555mm*2150mm*1467mm (L*W*H)
Ink cabinet

1900mm*700mm*1000mm (L*W*H

Weight

Printer:3100Kg

Printer:3800KgPrinter:5000Kg
