| Head | 8 |
| Number of Delivery | 1 |
| Head Distance | 470 mm |
| Speed | 60, 280, 300, 320 nips according to different process |
| Bobbin Size | 200x300 mm (inner 180 mm, out $200x300 mm) |
| Feed Lap | Width:300mm; dia: less then 600 mm |
| Lap Count | 60-80 ktex, |
| Fiber Length | 20-50 mm |
| Noil | 8-25% |
| Feed Length Per Nipper | 4.3/4.7/5.2/5.9 (standard: 5.2) |
| Drafting Type | 3 over 3 or latest curve drafting, pneumatic load |
| Draft Ratio | Pre-draft:1.14; 1.36; 1.5; total draft: 9-19.3 |
| Draft Gauge | Main draft: 41-54 |
| Coiling Style | Single can sing coiling |
| Sliver Can Size | $600x1200 mm (with caster) |
| Comber Sliver | Count 3-6 ktex |
| Suction Style | Central suction |
| Compressed Air | Pressure: 6-8x105 pa Or 0.6-0.8 mpa |
| Capacity | 1.5 m3/h |
| Exhaust Air Volume | 3000 m3/h |
| Suction Pressure | 250 pa |
| Source of Electricity | 380 v+10%; 50 Hz |
| Auto Counter | Meter & 4 shift |
| Motor Power | Inverter motor 3.5 kw-4.7 kw; brush motor 11.3 kw (approx) |
| Suction Motor | 1.5 kw, if the suction style is group suction, |
| Top Comb Graf | 26 N/CM |
| Coiler Trumpet | 3.4, 3.7, 4.1 |
| Change Gear & Pulley | Complement |
| Top Roller Cots | Becker |
| Overall Size | 7145×2145×1700 mm (approx) |
| U% | <3.5%, |
| Neps | <50 |
| Machine Weight | 5000 kgs (approx) |
FAQ
Q1: What material can the FA588 cotton comber process?
A1: The published fiber length range is 20–50 mm. The machine processes prepared cotton laps and removes a controlled share of short fibers, neps and impurities before delivering combed sliver for the next drawing stage.
Q2: What feed lap and noil settings are available?
A2: The FA588 accepts a 300 mm feed lap with a diameter below 600 mm and a lap count of 60–80 ktex. The listed noil range is 8%–25%. The final setting depends on cotton staple length, lap evenness, fiber-yield target and required yarn count.
Q3: What details should a buyer provide for an FA588 proposal?
A3: Please provide cotton type, staple length, micronaire, feed lap count, lap diameter, required noil level, planned nip rate, daily output, sliver-can size and target yarn count. Middle East projects should also state local voltage, frequency, compressed-air data, exhaust connection, room temperature, humidity and mill dimensions.
Product Advantages

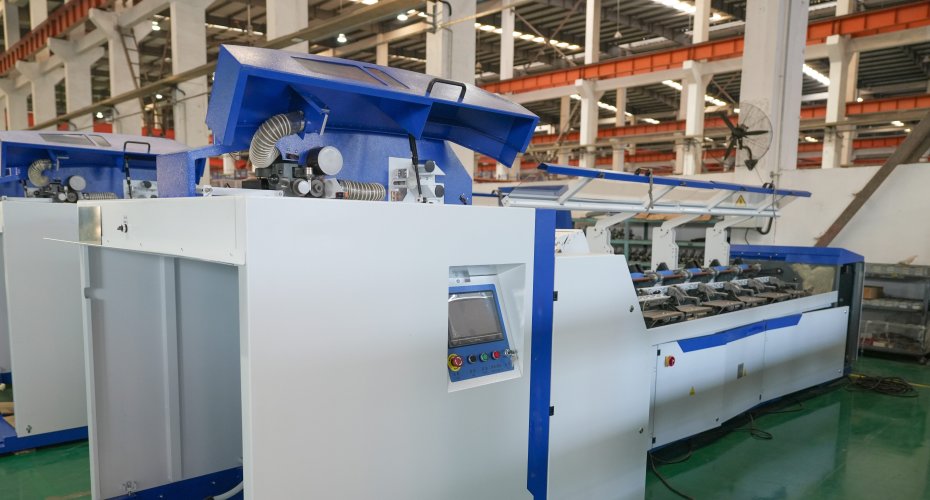

1.Eight-Head Combing Layout
Eight combing heads work with one sliver delivery at a head distance of 470 mm. The layout processes the feed lap into combed sliver while separating a set share of short fibers, neps and impurities.
2.Defined Feed Lap Range
The FA588 accepts a 300 mm lap with a diameter below 600 mm and a lap count of 60–80 ktex. Its listed fiber length range of 20–50 mm covers several cotton spinning plans.
3.Multiple Process Settings
Feed length can be set at 4.3, 4.7, 5.2 or 5.9 mm per nip, while the noil range is 8%–25%. These settings allow the mill to prepare the process around cotton length, lap data and yarn requirements.
4.Pneumatic Drafting and Coiling
The three-over-three drafting section uses pneumatic loading with pre-draft ratios of 1.14, 1.36 or 1.5 and a total draft range of 9–19.3. Finished sliver of 3–6 ktex is coiled into one Ø600 × 1200 mm can.
5.Utility Data for Mill Planning
The listed configuration uses central suction, compressed air at 0.6–0.8 MPa with a stated use of 1.5 m³/h, and an exhaust-air figure of 3000 m³/h. The published power source is 380 V at 50 Hz.
