Hydro Extractor

Hydro Extractor

Hydro Extractor

Hydro Extractor

main feature :

Applicable for yarn woven fabrics, knitted fabrics, garments, tow and dehydrated in the textile industry.

1
2
4
3
5
6
8
7
9

Product details

Applicable for yarn woven fabrics, knitted fabrics, garments, tow and dehydrated in the textile industry.

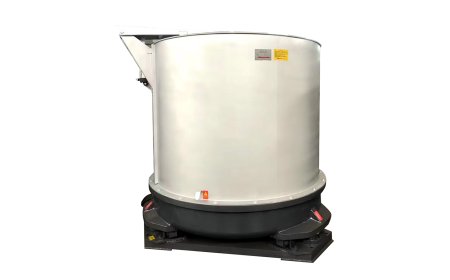

  • Frequency Conversion Loose  Fiber Hydro Extractor

    Frequency Conversion Loose Fiber Hydro Extractor

    It is suitable for dehydrating fibrous objects such as loose fibers, cotton, textiles, etc. It adopts variable frequency speed regulation, direct drive special motor and dynamic balancing technology, with the characteristics of compact structure, large capacity and low energy consumption. It can dehydrate the cage at one time, with full automation and timing, saving costs, and the size can be customized.

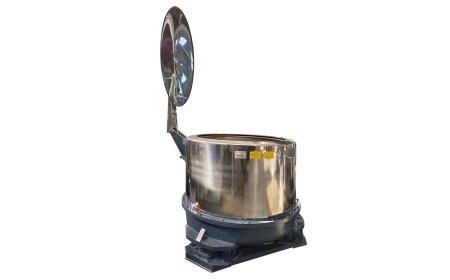

  • Advanced Frequency  Conversion Technology

    Advanced Frequency Conversion Technology

    It adopts advanced frequency conversion technology, with adjustable speed, automatic timing and energy saving. It adopts advanced variable frequency automatic brake and abandons mechanical brake, thus greatly reducing the mechanical maintenance rate.

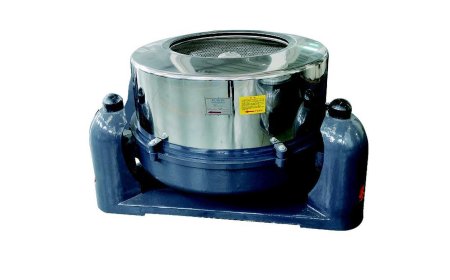

  • Long Service Life

    Long Service Life

    High-quality stainless steel inner and outer cages, beautiful and sturdy.

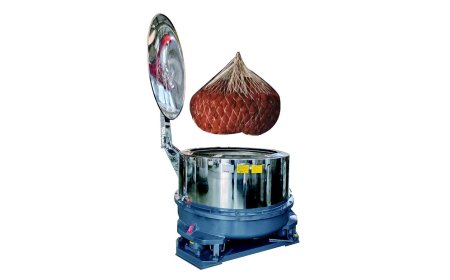

  • Hanging Bag Frequency  Conversion Hydro Extractor

    Hanging Bag Frequency Conversion Hydro Extractor

    Compared with ordinary variable frequency dehydrators, the advantages of hanging bag dehydrators are that they save more labor and energy. A brief description of the operation process: put the net bag into the cart - put the material into the net bag - hang the net bag into the dehydrator for dehydration - after dehydration, hang the net bag out.

  • Normal (Heavy) Hank Hydro  Extractor

    Normal (Heavy) Hank Hydro Extractor

    The chassis, shell, main shaft assembly and drum are suspended via three spring-covered suspension rods on spherical seats above three column feet. This setup eases drum imbalance from uneven loading, reducing impact on the main shaft and bearings. Driven by a motor via a centrifugal clutch and V-belt, it starts smoothly with motor overload protection.

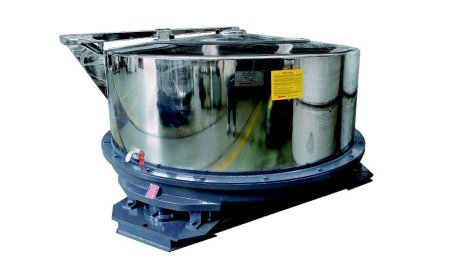

  • Frequency Conversion Cone  Yarn Hydro Extractor

    Frequency Conversion Cone Yarn Hydro Extractor

    The equipment is made of high-quality stainless steel and outer cage, with long life, large capacity, high dehydration rate and low energy consumption. It is equipped with advanced frequency conversion full-automatic control, which can automatically time and brake, with adjustable speed, no mechanical brake to reduce maintenance rate; it has an organic cover to protect safety and life, and super static and dynamic balance to create a good environment.

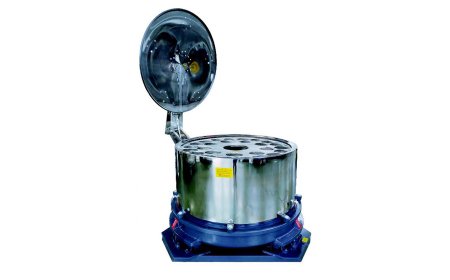

  • Three-Legged/Ball-head  Variable Frequency Hank  Hydro Extractor

    Three-Legged/Ball-head Variable Frequency Hank Hydro Extractor

    Frequency conversion fully automatic control, no mechanical brake, greatly reducing the mechanical maintenance rate. The automatic control system adopts advanced and reliable frequency conversion control, which can automatically time and automatically brake the speed to be set according to needs, saving more electricity.

Main technical parameters

Model1260 1500 1800 2000 2200 2400
Rotating cage inner diameter (mm)1260 1500 1800 2000 2200 2400
Volume (Green-weight)(kg)180 500 800 1000 1200 1500
Rotating cage height (mm)500 700 850 900 900 1000
Variable frequency motor Power(Kw)7.5 10 12 15 18.5 30
Inverter power11 11 15 18.5 22 37
Rotate speed(r/min)750 Adjustable600-750 Adjustable550-600 Adjustable550 Adjustable500 Adjustable500 Adjustable
Dmension(mm)1850×1700×11002250×2100×13002400×2250×15502500×2350×16002700×2550×16002800×2650×1700







ModelBall head typeBall head typeThree-legged type (heavy)Ball head typeThree-legged typeBall head type
Rotating cage inner diameter (mm)80010001200126013501500
Volume (Green-weight)(kg)80100160180250450
Rotating cage height (mm)380380480500500650
Variable frequency motor Power(Kw)57.5117.51010
Inverter power7.57.515111111
Rotate speed(r/min)750  Adjustable750  Adjustable750  Adjustable750  Adjustable650-750 Adjustable650-750 Adjustable
Dmension(mm)1450×1450×8501600×1600×9001750×1750×9501850×1750×10002050×2050×10502250×2100×1200
Please consult us for more model parameter information!
