OVERHEAD TRAVELLING CLEANER SERIES

overhead travelling cleaner series

Used in various types of spinningmachines at home and abroad
Blow-Suction Cleaner series

main feature :

The overhead travelling cleaner series series which is used for spinning line has a neat and consistent cleaning effect. It can fully handle the clean-ing work of the textile equipment, reduce product defects, improve product quality and output, and reduce or elimi-nate manual cleaning. In addition, the blow-suction cleaner is durable, maintenance-free, and re-quires litle maintenance. The latest developed blow-suction cleaner can be practical, durable, and useful.

Product details
Main technical parameters
Product evaluation

Inquire Now

Product details

The stretching blow nozzle component can accuratelyclean the fine yarn stretching area.

The adjustable extended blow nozzle can be close to theblow point,and both the height of the blow nozzle and the airvolume can be adjusted.

The yarn frame cleaning horizontal blow pipe is set withcorresponding adjustable blow nozzles according to the differ-ent arrangements of the yarn frame.

The self-cleaning mechanism of the blow-suction cleanercleans itself once every round trip (at the head or tail of the car),saving about 10%of energy.

The host automatically collects the door opening mecha-nism outside the flower to ensure the stability of the cleaningeffect.

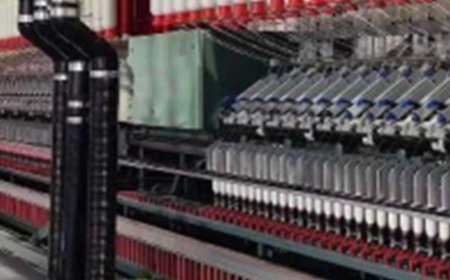

Intelligent blow suction cleaner

Used in various types of spinning machines at home and abroad

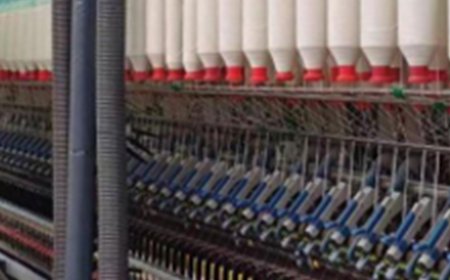

New TD-2Hseries cleaning machine

With automatic return function when meeting an obstacle, the user-friendly design makes the machine safe and reliable Electrically designed with intermittent operation, the running tirme can be freely adjusted to meet the requirements of production eleaning and energy saviing
Special TD -2X series roving machine energy-saving cleaning machine

Using single-outlet high efficiency fan at the 0.55 KW supporting power, it saves 40% electricity more than the products of similar specification Suction port can be rotated 70-90 degrees counterclockwise during the maintenance of the equipment Meeting the needs of automatic doffing-roving machine, increasing the blowing cleaning spots, improving the cleaning effect and product quality
TD-3 centralized vacuum unit

It is suitable for fine drop coupling, air jet spinning, loom, self winding, doubling and twisting equipment.

Main technical parameters

Technical Parameters
Item	umit	TD-2A	TD-2B	TD-2C	TD-2D	TD-2E
Motor powcr	KW	0.75	1.1	1.5	2.2	3
Wind volume	m3/h	1050	1200	1700	1900	2300
Wind pressure	Pa	1500	1800	2400	2600	2880
Noise	dB(A)	≤80	≤80	≤82	≤82	≤82
Operation speed	m/min	8-10	8-12	8-15	10-15	10-15
