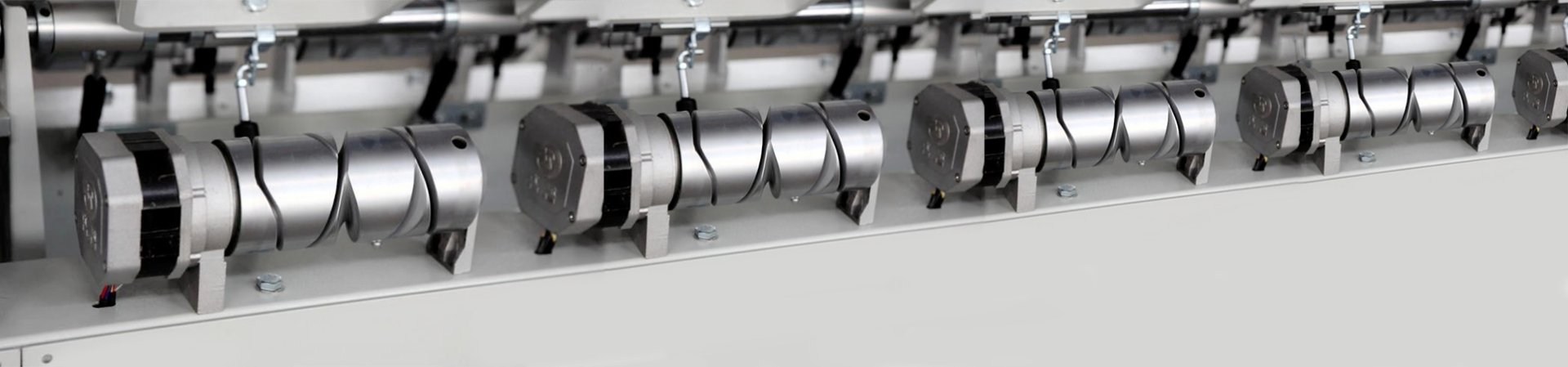

Grooved drum

main feature :

Grooved drums are made from high-quality materials such as bakelite, alloy drum, super plastic alloy, and Ni-P alloy. They feature improved groove curves, stable yarn linear density, and perfect molding. The surface is coated with a high-density, low-porosity layer, providing excellent wear resistance, static elimination, and a smooth finish. The Ni-P alloy drums offer superior corrosion resistance, wear resistance, uniformity, and a longer lifespan.

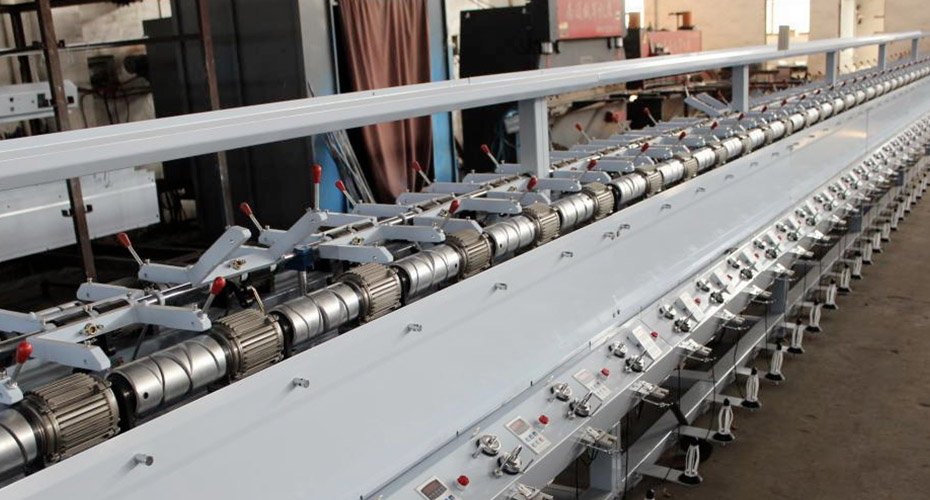

_0001_Customer Use 4
_0001_Customer Use 4
_0000_Customer Use 7
_0002_Customer Use 3

Product details

Modified groove curve, steady yarn linear density and perfect forming.

Ultra-fine processing, high smooth finish Ra<0.4μm.

Cr-plated on the surface, the hardness of the surface is higher than HV900, high wear resistance, static elimination, less hairness and surface inferior smooth processing.


Main technical parameters

Super-plastic alloy Grooved Drum

Code

Cirde  No.

OD.

Hole Dia.

L.

Stoke

Bobbin
Taper

Applicable Model

CC-01

2.5

81.5

20

176

152

3º30’
—9º15’

Winder Grooved Drum
And High-Speed
spindle machine

CC-02

2.5

82

20

176

154

0º-3º30’

Double winder and High-Speed spindle machine

CC-03

2.5

81

20

183

147,142

0º-3º30’

Slack Grooved Drum Machine

CC-04

1.5

78

30

100

80

0º-3º30’

Rotor Spinning Machine

CC-05

1.5

88

20

124

100

0º-3º30’

Winder machine,

CC-06

2

95

20

176

150

4º20’

Spindle winder,
winder singeing Machine

CC-07

2

95

20

176

150

Spindle winder,Winder and Double winder

CC-08

2

95

--

166

150

4º20’

With novel structure ,
cabbe applicable to Automatic winders

code

Apellation

Applicable
 Model

Cirde
No.

Stoke

Hole

Dia.

OD.

L.

TD-Z

Metal Grooved Drums of Automatic Winder
钢质槽筒

Savio Orion
Automatic Winder

2

152

conical
hole

94

166

TD-J

Grooved Drum
of Hard Winder

High Speed
Hard Winder

2.5

152

20

82

176

TD-S

Grooved Drum
of Soft Winder

High Speed
Soft Winder

2.5

147

20

82

183

TD-B

Grooved Drum
of Doubling Winder

High Speed
Doubling Winder

2.5

154

20

82

176

TD-Y

Andoizing Grooved Drum

All kinds of
Slotted Drum
or Winder






TD-K

Knurl Grooved Drum
超塑滚花槽筒

High Speed
Winder Machine
