Automatic winding machine auto Coner VCRO

main feature :

Automatic winding machine auto Coner VCRO adopts bran-new profile design - featured by beautiful and dignified, adopts the bran-new smart anti-pattering device, new type of tension control system and new type of balloon control mechanism to ensure perfect package building, more even winding tension, high machine operation stability and reliability to meet customer requirement better.

_0003_IMG_2656
_0001_IMG_2666
_0000_IMG_2667
_0002_IMG_2664

Product details

VCRO automatic winder inherits the advantages of SMARO-NEW series winder, adopts bran-new profile design - featured by beautiful and dignified, adopts the bran-new smart anti-pattering device, new type of tension control system and new type of balloon control mechanism to ensure perfect package building, more even winding tension, high machine operation stability and reliability to meet customer requirement better.


  •



    Better New type of anti-pattering mechanism. New type of the enclosed drum cover. New type of soft tension mechanism. Electronic anti-wrap drum. Drum optional freely.

  •



    Faster Tension close loop control system. Optimized bobbin yarn suction nozzle. Optimized package yarn suction program. Optimized gill pin structure. Improved spindle panel installation method.

  •



    More Reliable New type of soft tension structure. New type of grid tension mechanism. Optimized tension yarn-catcher structure. Optimized empty bobbin conveyor. Increased empty bobbin selection box. Optimized air door structure. Transparent lints box window. Optimized mobile fan structure.

Main technical parameters

Main Technical Specification

Type

Single-spindles, single-sided arrangement, left or right hand.

Application

Nm3.5 to the highest count cotton, wool, synthetic yarn and blended single yarn.

Winding Speed

400-2200 m/min, step-less speed regulation.

Number Of Winding Spindles

6 to 80 every two spacing increment.

Spindle Distance

320 mm.

Applicable Bobbin Taper

4°20', 5°57".

Feeding Bobbin

Diameter = 32 - 65 mm, Length = 180 - 300 mm.

Joint Type

Airsplicer, Aquasplicer.

Magazine Type

9 holes or 6 holes.

Joint Type

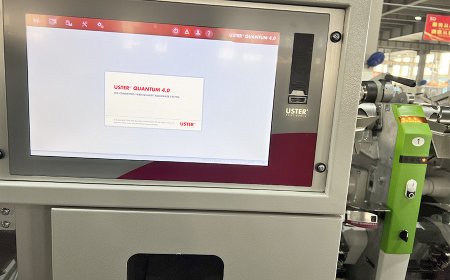

The latest USTER/ LOEPFE electronic yarn clearer.

Drum

DC motor coaxial transmission, step-less speed regulation.

Circles On Drum

2 or 2.5.

Anti - Pattering

Motor speed variation controlled in whole process.

Joints Circle

Electrical logic control, intelligent cycle.

Tension Control

Electromagnetic pressure.

Power Installed

33.57kW ( Actual consumption 11-15 kW).

Overall Dimension (60 Spindles)

22627 x 1365 x 2650 mm.
