Bleding Opener FA105

main feature :

Bleding Opener FA105 is designed to process various grades of cotton or made fibres. It not only has the mixing function but also includes higher opening and cleaning functions. Its cleaning efficiency is higher than similar machines. The special grid bars device, SFA035B(C), is of high nicety and convenience. The fully-enclosed steel plate structure for the frame gives it a neat and beautiful appearance.

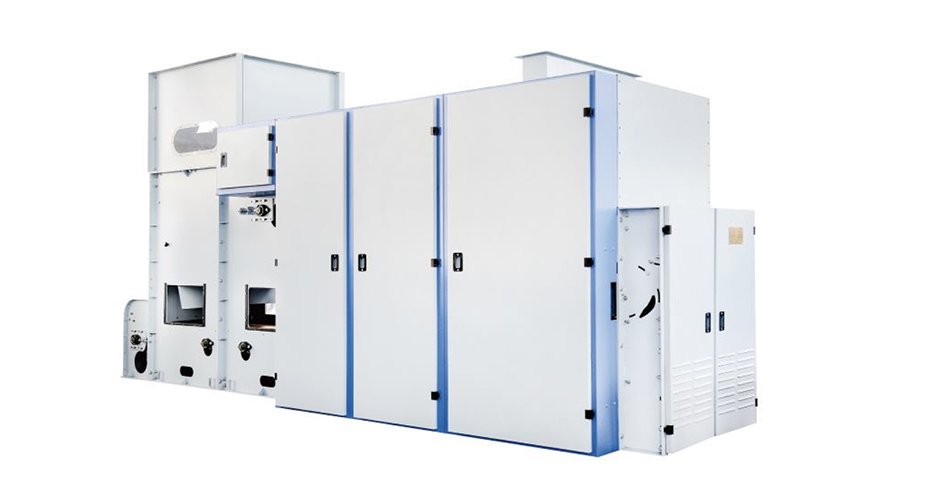

FA105 Bleding Opener
FA105 Bleding Opener
15

Product details

This machine is suitable for processing various kinds of cotton. A fiber condenser feeds the cotton picked up by an automatic bale plucker into this machine for further carding, opening, and cleaning. The cleaned cotton is then delivered to the next machine for further processing.

The cleaning unit comprises a spike beater, a U-type beater, a porcupine beater, and three groups of grid bars. Raw material is processed gradually by the spike beaters, U-type beaters, and porcupine beaters in sequence, and the clearances between grid bars are decreased accordingly. Thus, the fiber can be fully opened and cleaned with less damage too.

Main technical parameters

Production capacity (kg/h)

800

Working width (mm)

1060

Speed of feeding lattice (m/min)

1,1.25,1.5,1.75

Speed of control lattice (m/min)

1,1.25,1.5,1.75

Speed of spike 丨attice (m/min)

60,70,80,100

Evenness roller Dia. (mm)

260

Speed (rpm)

209,234,269

Spike beater Dia. (mm)

400

Speed (rpm)

450 503 578

U-type beater Dia.(mm)

400

Speed (rpm)

535598 687

Porcupine beaterDia.(mm)

400

Speed (rpm)

717, 801,920

Type of grid bar

Triangle grid bar

Gauges (mm)

5~11( adjustable)

Gauge between contro丨 lattice and spike 丨attice(mm)

60-80

Overall dimension(L x W x H)(mm)

5397x1576x2746

Total installation power (kw)

6.05
