Sock knitting machine
Advanced Technology for Versatile Sock Production
Ultra-Efficient Production Capacity
Intellectualized and Precision Control
Versatile and Flexible Adaptability

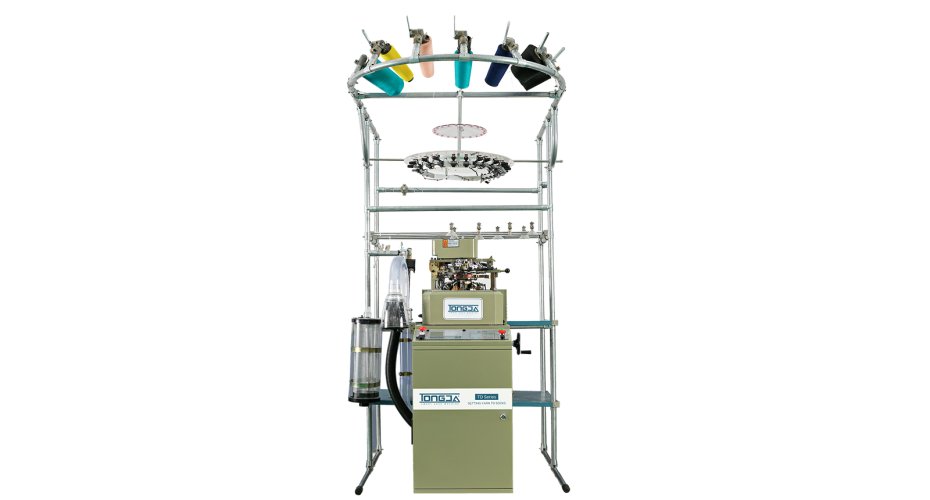

3¾”COMPUTERIZED TERRY/PLAIN DOUBLE USE SOCKS KNITTING MACHINE
main feature :
Adopting a single needle tube single or dual entry design, each row can present 6 colors, and the sock pattern can achieve 13 color interchangeability.
Can weave high heels, large heels small heels, and left and right foot styles, and has the ability to weave two-color sock heads/heels.
Nine main shuttles, shuttles 7, 8and 9 can be used as main lines.
Equipped with rubber shuttle(optional 2) for weaving two-color rubber thread.
Product details
The 3¾ gauge Computerized Terry/Plain Double Use Socks Knitting Machine is designed for producing terry loop socks (e.g., sports/winter thermal socks) and plain knit socks (e.g., ankle/no-show socks). It handles materials like cotton and blends, ideal for small-to-medium factories needing flexible switching between terry and plain knitting modes.
Main technical parameters
| MAIN PARAMETER | ||||||||||
| Model | Cylinder Diameter | Needle Range | Running Speed | Cylinder | Feed | |||||
| TD-6F-616B | 33¾inch | 72-240 needles | 200-350RPM | Single Cylinder | One feed Two feeds | |||||
| TD-6F-617B | 33¾inch | 72-240needles | 200-350RPM | Single Cylinder | One feed Two feeds | |||||
| 6 Actuator | Sock bod y300-350RPM | Sock heel:280-300RPM | ||||||||
| 13 side yarn shuttles | 9 Main Pneumatic yarn fingers | Automatic yarn feeding | ||||||||
| Option Function | Power Option | |||||||||
| Plain function socks machine Plain function Invisible socks machine | 380V,3phrase,50/60HZ 220V,3phrase,50/60HZ 415V,3phrase,50/60HZ | |||||||||
| Model | Floor space (L×W×H) | Package Dimension(L×W×H) | N.W | G.W | ||||||
| TD-6F-616B | 150×120×240cm | 113×75×157cm | 300kgs | 350kgs | ||||||
| TD-6F-618B | 150×120×240cm | 113×75×157cm | 300kgs | 350kgs | ||||||
Q1: What is the difference between plain and terry socks?
A1: Plain socks have a lighter knitted structure and lower fabric bulk. Terry socks contain looped areas that add cushioning, warmth and moisture absorption. The suitable structure depends on the sock style, yarn and end-use requirements.
Q2: Which sock styles can this 3.75 inch machine make?
A2: The machine can be configured for adult sports socks, crew socks, ankle socks, casual socks and other plain or terry styles. Actual sock sizes depend on cylinder diameter, needle count, yarn thickness, stitch settings and pattern data.
Q3: What information is needed for machine matching?
A3: Please provide a sock photo or sample, sock size range, plain or terry structure, yarn type, yarn count, color quantity, needle requirement and planned daily output. Voltage, frequency, compressed-air conditions and toe-closing requirements should also be confirmed.
1.Plain and Terry Knitting Functions
The 3.75 inch machine supports both plain and terry sock structures. A hosiery mill can make lightweight plain socks and cushioned terry socks with one machine type.
2.Computerized Pattern Changeover
Computer control helps operators load pattern files and adjust knitting settings when changing sock styles. This function suits production plans covering several colors, sizes or designs.
3.Yarn and Color Flexibility
The yarn arrangement supports plain designs, terry structures and multi-color patterns. The available color quantity depends on the confirmed yarn feeder and side-yarn finger configuration.
4.Sports and Casual Sock Applications
The 3.75 inch cylinder format can be used for adult sports socks, crew socks, ankle socks and casual socks. Finished size and fabric weight depend on needle count, yarn type and stitch settings.
5.Single-Cylinder Machine Layout
The single-cylinder structure combines the main knitting functions within one machine frame. This layout helps hosiery plants plan machine spacing, operator access and routine maintenance.
