High performance Cotton Carding machine

Carding machine

High performance Cotton Carding machine

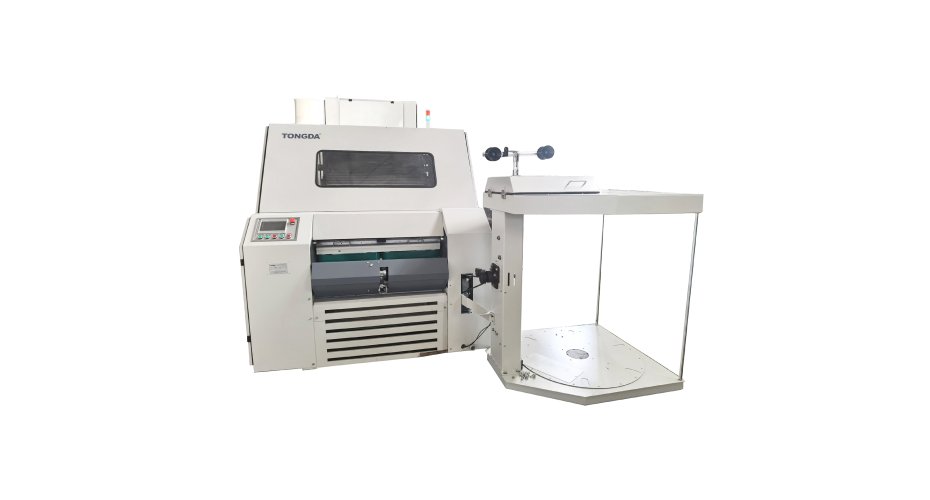

Cotton carding machine FA206B

main feature :

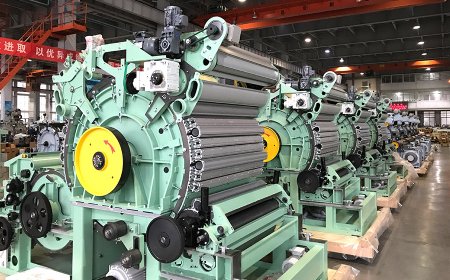

The cotton carding machine FA206B is the accurate and perfect cast iron entity cylinder and made with German resin sand technology. It is featured by netter stability without deformation to ensure precise gauge of various flats when spinning different yarn type.Rotary Flat is support by four points that is made by wear resistant material to ensure minimum flat tip height difference and extend duration.Front.rear stationery flats and web cleaner are made by aluminum alloy, good tip neatness and convenient gage adjustment to ensure fiber carding more fully and fine.

-2_0000_img_v3_026h_13452145-90db-4c90-8e9a-da5f98e2a3eg
-2_0000_img_v3_026h_13452145-90db-4c90-8e9a-da5f98e2a3eg

Product details

  •

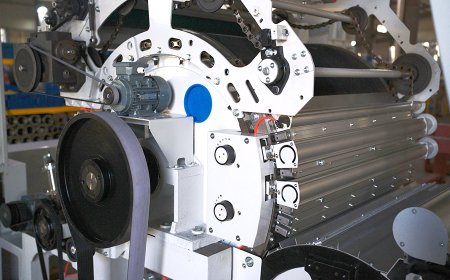

    FA206B Carding machine is the accurate and perfect cast iron entity cylinder is made with German resin sand technology. It is featured by netter stability without deformation to ensure precise gauge of various flats when spinning different yarn type.Rotary Flat is support by four points that is made by wear resistant material to ensure minimum flat tip height difference and extend duration.Front.rear stationery flats and web cleaner are made by aluminum alloy, good tip neatness and convenient gage adjustment to ensure fiber carding more fully and fine.

  •



    Web cleaner, stationer flat, cover sheet are designed in modular which can be grouped and fitted according to different material and flexible dismantled with better trash excluding efficiency.Singular licker-in is mounte. It is designed with note knife, pre-carding segment, around licker- in to efficiently exclude trash and short staple. Mote knife and dust dropping zone length can be used for adjusting noil quantity to reduce fiber loss.

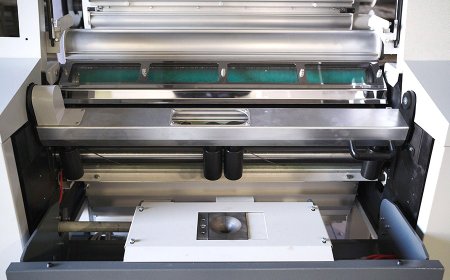

  • Advanced Control System Monitors.

    Advanced Control System Monitors.

    The Working Status and Running Efficiency. Safety Protections and Self-Diagnosis System. Sophisticated Suction System Provide Better Opening and Cleaning. Independent Transmission Motors Adjusted by Inverts For High Efficiency. User Friendly Graphical Interface. Easy Access to control Parameters. Smart Mechanical Design Makes maintenance An Easy Take.

Main technical parameters

Application

This machine is used for processing cotton and chemical

fibres or blends in length 22~76mm,lt is specially used for openend spinning

Production(kg/h)

6 5

Delivery speed (m/min)

320

Sliver count (g/m)

3.5~6.5

Feed weight (g/m)

300-1000

Working width (mm)

1000/1250

Total draft

60-300

Feed roller diameter(mm)

100

Licker-in speed

0)180,0180,0)250

Doffer diameter(mm)

①706

Doffer speed(r/min)

4^65

Cylinder diameter(mm)

CD 1288

Cylinder speed( r/min)

340-510

No. of revolving flats(working/total)

30/84

Flat speed(mm/min)

98-370

Auxiliary carding segment

4 licker-in Carding segments,4 front stationary flats(Cotton),4~6(Chemical fiber); 6 rear stationery flats(Cotton),6-10(Chemical fiber)

Web cleaner

Rear web deaner(2),Front web cleaner(1)(Cotton)

Diameter

60,001,000

Can size(mm)

Height

11,001,200

Continuous suction(m3/h)

Air volume 4000

Air pressure(Pa)

-920

Compressed air requirement(kg/cm2)

Pressure 5~7

Compressed air consumed(m3/h)

0.02

Total installed power(kw)

11,24

Safety cover form

Totally-enclosed structure

Space requirement(Lx W)(mm)

4007 x 1980 (Coiler no included)

Approx net weight) kg)

7500

Option

USTER UQAaotoleveller
