TD-D6 Digital High Speed Double Needle Bar Raschel Machine
main feature :
The machine produces short pile fabrics (1.5-6mm), sandwich mesh fabrics (3-12mm), and ensures wool yarn stays intact due to looping. It is widely used for car seat cushions, bedding, cotton blankets, curtains, clothing fabrics, and footwear materials.
Product details
CHARACTERISTIC
The mechanism is driven by a complete set of eccentric mechanisms or crankshaft connecting rod mechanisms, with faster speed; The needle slot plate is fixed, the fabric is tight, and an unloading device for holding the settling plate bed is added. When replacing the tongue needle, the settling plate bed can be swung away from the working area for easy operation.
The combination of electronic let-off and laser yarn breaking automatic stop device ensures the high-speed operation and convenient operation of the machine. And the number of comb bars of the machine has reached 7, and it can be equipped with electronic jacquard card, electronic pattern shifting, etc., making the fabric of the machine more able to meet the needs of customers.
APPLICATION
After finishing and processing, the fabric can form short pile fabrics with a pile height of 1.5-6mm, sandwich mesh fabrics with a spacing of 3-12mm, and the wool yarn is not easy to fall off from the bottom cloth due to looping. It is widely used in car seat cushion, sand release, Simmons Bedding Company, cotton blanket, curtain and other household decorative fabrics, as well as clothing fabrics and footwear materials.

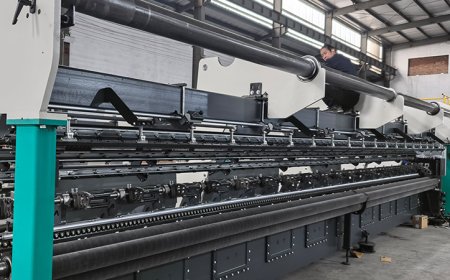

Strong Stability
Due to the fixed needle plate, the fabric is held tightly and stably, which helps maintain the long-term stable operation of the machine and reduces the failure rate.

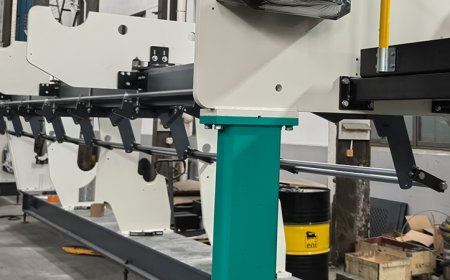

Easy Operation & Maintenance
The swingable design of the shaping plate bed facilitates the replacement of needle tongues, simplifying the operation and maintenance process and improving work efficiency.

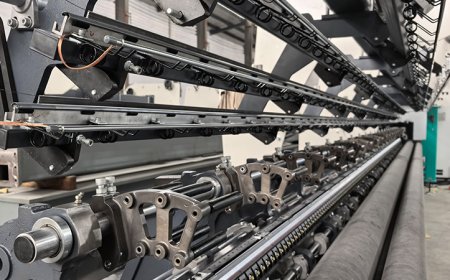

High Degree of Automation
Combined with electronic weft insertion and laser yarn break automatic stop system, the machine boasts a higher level of automation, ensuring safety and production continuity during high-speed operation.
Main technical parameters
Needle type | Latch needle |
Gauge | E18 E22 E24 |
Working width | 100 inches,138 inches,210 inches |
Guide Bar No | 6 |
Double pile height | 2-12mm |
Main drive | Oil-immersed cam,Eccentric linkage |
Max speed | 800 rpm |
Pattern drive | N-pattern drive,chain link or pattern disk(Optional: Electronic Control)
|
Yarn let-off device | EBC Electronic yarn let-off |
Fabric take-up | Electronic take-up |
Batching device | Independent batching device |
Main motor power | 7.5 kw |
Q1: What fabrics can the TD-D6 Raschel machine produce?
A1: The TD-D6 can produce short-pile textiles, sandwich mesh and 3D spacer fabrics. Typical uses include car seat material, mattress mesh, sofa upholstery, blanket fabric, curtains, footwear material and apparel components.
Q2: What working widths and gauges are available?
A2: Published TD-D6 data lists working widths of 100, 138 and 210 inches, equal to approximately 254, 351 and 533 cm. The listed machine gauges are E18, E22 and E24.
Q3: What information is needed for a TD-D6 machine proposal?
A3: Please provide the yarn material, yarn count, machine gauge, fabric width, fabric weight, pile height or spacer distance, lapping plan and planned daily output. Local voltage, frequency, ambient temperature and workshop dimensions should also be provided.
1.Working Width up to 210 Inches
The TD-D6 is available in 100, 138 and 210-inch working widths. The 210-inch configuration is intended for wide spacer mesh, mattress material and upholstery fabric.
2.Six-Guide-Bar Configuration
Six guide bars provide separate yarn paths for ground, pile and connecting yarns. The lapping plan can be arranged according to the required short-pile or spacer textile structure.
3.Yarn-Break Monitoring
The laser yarn-break detector monitors yarn movement during knitting. When broken yarn is detected, the machine can stop so that the operator can check the affected position.
4.Several Pattern Motion Methods
N-pattern drive, chain links and pattern discs can be used for different fabric structures. Electronic pattern control can also be included according to the confirmed machine configuration.
5.Maintenance Access
The fixed trick plate supports fabric formation. During latch-needle replacement, the sinker-bed structure can swing away to provide working access for the operator.
