TD2881 Digital Terry Warp Knitting Machine
main feature :
TONGDA digital terry warp knitting machines ensure stable operation and uniform loop formation for efficient production of terry and warp knitted fabrics.
Product details
CHARACTERISTIC
This equipment adopts a crankshaft connecting rod mechanism and is equipped with a forced oil pressure lubrication system and an oil temperature control system. Independent winding and yarn breaking automatic stop device with bristle brushing device (optional), electronic let-off, and electronic lateral movement (optional) to ensure high-speed operation and convenient operation of the machine.
APPLICATION
To produce terry fabrics such as towels, bed blanket, bamboo fiber dish towel etc.

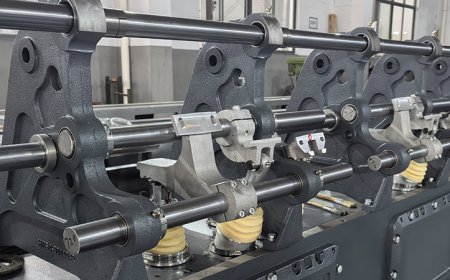

Stable Production Efficiency
The automatic yarn break detection device ensures the machine stops immediately when a yarn breaks, preventing production interruptions and improving production continuity.

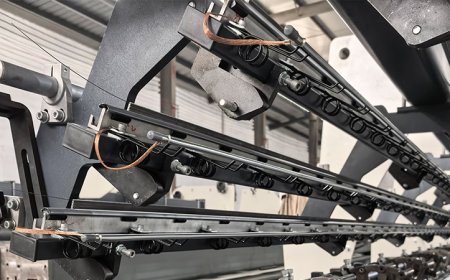

High-Precision Operation
The electronic side-shifting function provides higher precision and flexibility, allowing the machine to adapt to more complex production requirements and ensuring product quality.

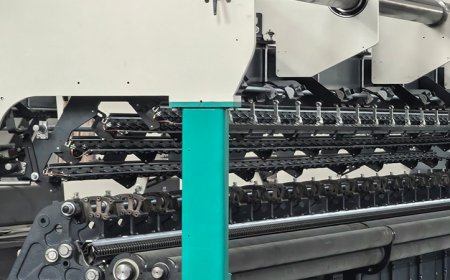

Reliable Lubrication System
Equipped with a forced oil pressure lubrication system and oil temperature control system, effectively reducing machine wear and extending equipment lifespan.
Main technical parameters
Needle type | Latch needle |
Gauge | E16 E18 E22 |
Working width | 100 inches |
Guide Bar No. | 5 |
Double pile height | 50-250mm |
Main drive | Oil-immersed cam |
Max speed | 500 rpm |
Pattern drive | Electronic Control |
Yarn let-off device | Two roller roller active let-off(optional:electronic let-off)
|
Fabric take-up | Change gear traction box(optional:electronic traction)
|
Batching device | Independent batching device |
Main motor power | 5kw(90"、100"、110")7.5kw(138") |
Q1: What products can the TD2886 make?
A1: The TD2886 can produce medium-pile fabric for plush toys, faux fur products, blankets, plush carpets and home textiles. Fabric programs may include coral fleece, PV plush and other synthetic pile structures.
Q2: Is the TD2886 the same as a 3D spacer fabric machine?
A2: No. The TD2886 is mainly intended for pile fabric that is split, cut and finished to create a soft surface. A 3D spacer machine produces two fabric surfaces connected by spacer yarns and normally retains the connected structure.
Q3: What data is needed for a TD2886 quotation?
A3: Please provide the target fabric sample, ground yarn, pile yarn, yarn denier, finished pile height, fabric width, fabric weight, stitch density and planned output. The splitting and finishing process, local voltage, frequency and workshop conditions should also be provided.
1.Medium-Pile Fabric Range
The TD2886 is intended for pile fabrics with a finished pile height of 5 to 25 mm after splitting, cutting and finishing.
2.Double-Layer Knitting Structure
Two fabric layers are knitted and connected by pile yarns. The connected fabric can then be split to create two pile surfaces.
3.Multiple Plush Applications
The machine can be used for plush toy material, faux fur fabric, blankets, carpets, coral fleece and PV plush fabric programs.
4.Oil-Immersed Cam Mechanism
The cam mechanism works inside the oil system to manage lubrication of the moving components during production.
5.Electronic Yarn and Fabric Control
Electronic yarn let-off and fabric take-up can coordinate yarn delivery and finished fabric movement according to the knitting plan.
