Disk Plucker FA002D

main feature :

Disk Plucker FA002D as first equipment of blowroom could be designed to handle various classes of cotton and man-made fibers measuring up to 76cm. Equipped with sawtooth rollers, high effectively to "plucks" the fibers. The internal rollers are divided into three groups, from wide to narrow, ensuring uniform "plucking" of the fibers into smaller tufts for optimal blending and cleaning in the next process.

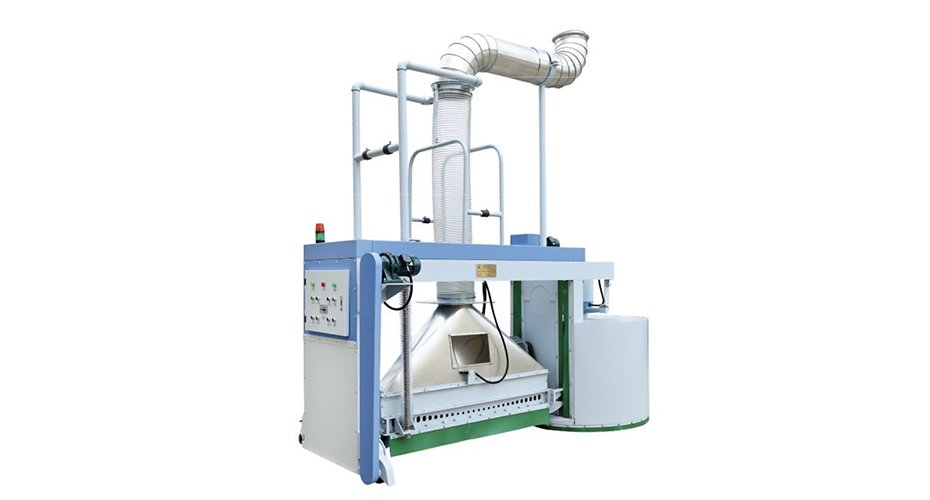

FA002D Disk plucker
FA002D Disk plucker
002D
02

Product details

FA002D disk plucker is an important machine in blowing-carding line. It is applicable for kinds of raw cotton. Cotton content chemical fiber, middle and long chemical fiber, generally two set of plucker are put into production in parallel. Plucking beater go down interval and rotate with carriage to pluck cotton sequence. Cotton plucked is transported to the next machine via duct.

1.This disk plucker machine is the first process in the whole blowing carding line.

2.It's applicable to pluck various kinds of raw cotton and polyester of the

3.length ≤76mm,and then convey them to the next process through airflow.

Main technical parameters

Production (kg/h)

800-1000kg

Loading capacity (kg)

4000 (2 sets)

Outer wall diameter (mm)

4760

Inner wall diameter (mm)

1300

Speed of carriage (r/min)

1.6-2.2

Beater speed (r/min)

740

Blade extension from grid (mm)

2.S-7.5

Rail diameter (mm)

5123

Height (mm)

3864

Power (kw)

4.1

Net weight (kg)

About 1600

Weight (kg)

Weight (kg)About 80
