Working mode | External warp for movable frame loom |
Power mode | Electric, 100W×36V×5Ax18000 rpm, DC motor, manual, small amount of trial knot |
Warp knotting range | 2S-200S, 20D-3000D |
Speed regulation mode | Rotary stepless speed regulation |
Working range | 1m-4m and other different specifications |
FAQ

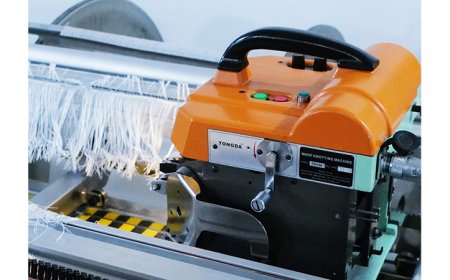

Q1: Which looms can use the TD188 automatic warp tying machine?
A1: The TD188 is intended for warp preparation on air jet, water jet, high-speed rapier and small rapier looms. The frame width and machine arrangement should be confirmed according to the loom and warp data.
Q2: Which yarns can be processed on the TD188?
A2: The machine can work with cotton yarn, ply yarn, rayon, synthetic filament and mixed-fiber yarns. Actual compatibility depends on yarn count, denier, ply, twist, hairiness, sizing condition and warp density. Yarn samples are recommended before the machine plan is confirmed.
Q3: What information is needed for a TD188 quotation?
A3: Please provide the loom type and model, working width, yarn material, yarn count or denier, ply, twist, sizing condition, total warp ends, warp density and beam details. Middle East buyers should also confirm the local input voltage, transformer arrangement and required spare parts.
Product Advantages
1.Multiple Shuttleless Loom Applications
The TD188 can serve warp preparation for air jet, water jet, high-speed rapier and small rapier looms. The final arrangement should match the loom width, warp density and yarn data.
2.Working Width of 1 to 4 m
The movable frame covers published warp widths between 1 and 4 m. This range supports narrow, standard and wide loom preparation within the confirmed machine plan.
3.Knotting Rate of 60 to 600 Knots per Minute
Rotary speed control allows the operating rate to be set between 60 and 600 knots per minute. The working rate can be matched with yarn count, surface condition and warp density.

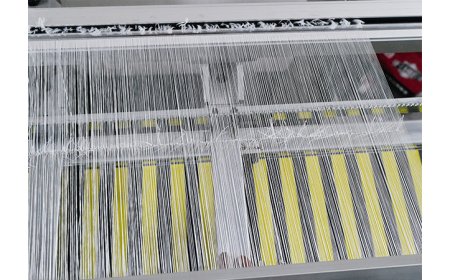

4.Double-Head Yarn Clamping
The double-head clamp holds each warp yarn individually during knot formation. This arrangement supports yarns with different fineness levels, ply structures and fiber blends.
5.Empty-Knot Monitoring and Electronic Counting
The machine monitors three empty-knot conditions and pauses the knotting cycle when they are detected. Electronic counting helps operators track completed knots during warp preparation.
