TD2886 Digital High Speed Double Needle Bar Raschel Machine
main feature :
TONGDA digital high-speed double needle bar raschel machine ensures stable operation and high efficiency for producing complex and high-value warp knitted fabrics.
Product details
CHARACTERISTIC
All oil-immersed cam mechanism, to reduce wear and the cam is durable. Opt to use electronic yarn let-off, electronic take-up, so that the yarn let-off is more stable.
APPLICATION
After cutting and finishing the fabric can be formed medium plush which height is 5-25mm. Its plush is fullness, soft, wool yarn into a circle and not easily detached from the base fabric. The machine is widely used in plush toys, furcoat, plush carpets, blankets and other products, such as flano, coral velvet, Kirin cashmere, circle fleece, PV velvet, simulation fur.

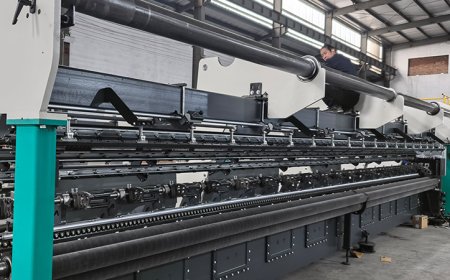

Strong Stability
Due to the fixed needle plate, the fabric is held tightly and stably, which helps maintain the long-term stable operation of the machine and reduces the failure rate.

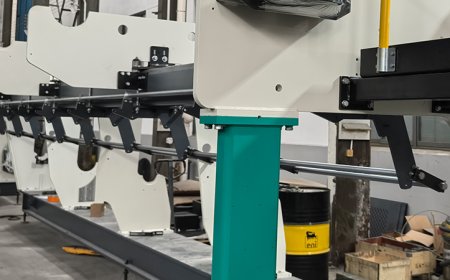

Easy Operation & Maintenance
The swingable design of the shaping plate bed facilitates the replacement of needle tongues, simplifying the operation and maintenance process and improving work efficiency.

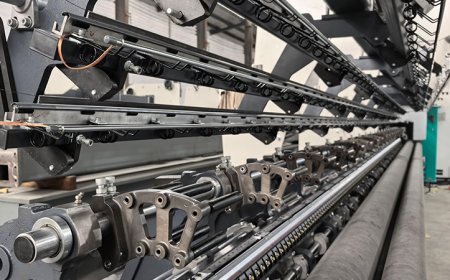

High Degree of Automation
Combined with electronic weft insertion and laser yarn break automatic stop system, the machine boasts a higher level of automation, ensuring safety and production continuity during high-speed operation.
Main technical parameters
Needle type | Latch needle |
Gauge | E16 E18 E22 |
Working width | 90"100"110"138" |
Guide Bar No. | 6 |
Double pile height | 8-50mm |
Main drive | Oil-immersed cam |
Max speed | 800 rpm |
Pattern drive | GB1,GB2,GB5,GB6 use mechanical traverse,GB3 and GB4 use electronic traverse.
|
Yarn let-off device | Two roller roller active let-off(optional:electronic let-off)
|
Fabric take-up | Change gear traction box(optional:electronic traction)
|
Batching device | Independent batching device |
Main motor power | 5kw(90"、100"、110")7.5kw(138") |
Q1: What products can the TD2886 make?
A1: The TD2886 can produce medium-pile fabric for plush toys, faux fur products, blankets, plush carpets and home textiles. Fabric programs may include coral fleece, PV plush and other synthetic pile structures.
Q2: Is the TD2886 the same as a 3D spacer fabric machine?
A2: No. The TD2886 is mainly intended for pile fabric that is split, cut and finished to create a soft surface. A 3D spacer machine produces two fabric surfaces connected by spacer yarns and normally retains the connected structure.
Q3: What data is needed for a TD2886 quotation?
A3: Please provide the target fabric sample, ground yarn, pile yarn, yarn denier, finished pile height, fabric width, fabric weight, stitch density and planned output. The splitting and finishing process, local voltage, frequency and workshop conditions should also be provided.
1.Medium-Pile Fabric Range
The TD2886 is intended for pile fabrics with a finished pile height of 5 to 25 mm after splitting, cutting and finishing.
2.Double-Layer Knitting Structure
Two fabric layers are knitted and connected by pile yarns. The connected fabric can then be split to create two pile surfaces.
3.Multiple Plush Applications
The machine can be used for plush toy material, faux fur fabric, blankets, carpets, coral fleece and PV plush fabric programs.
4.Oil-Immersed Cam Mechanism
The cam mechanism works inside the oil system to manage lubrication of the moving components during production.
5.Electronic Yarn and Fabric Control
Electronic yarn let-off and fabric take-up can coordinate yarn delivery and finished fabric movement according to the knitting plan.
