ZCN-TT&ZCL-TT Series Wool Gill Box/Mixing Machine
main feature :
Wool Gill Box is suitable for preliminarily processed wool, chemical fiber, down and blended fibers. It mainly carries out combining, drafting and mixing to prepare uniform fiber strips for spinning.
Product details

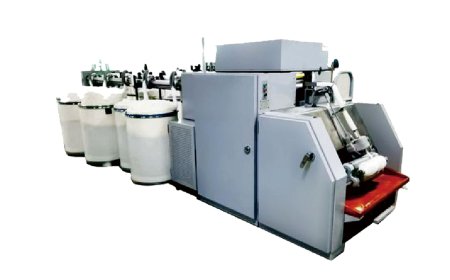

Low Speed Mixing Machine

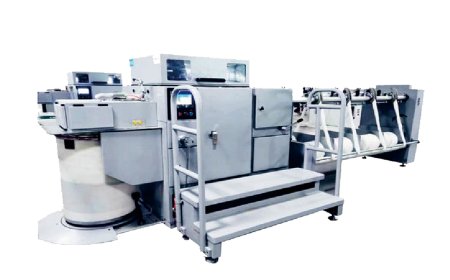

Gill Box Machine

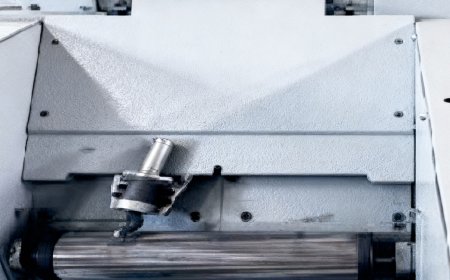

High-Speed Chain-Type Fully Electronic Leveling Gill Box

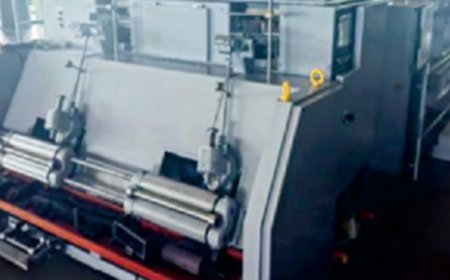

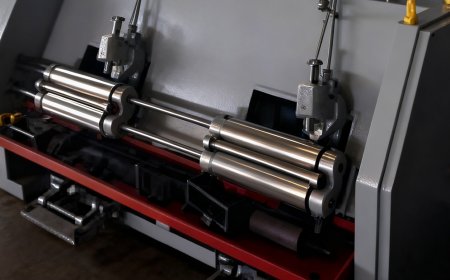

Low-Speed Double-Head Mixing Machine
Main technical parameters
First Gill Box ZCN-TT
Can delivery type | External automatic can change |
Delivery can diameter | 1000 mm |
Delivery can height | 1200 mm |
Delivery type | 1 can,1 piece |
Can change | Automatic |
Feeder | Suitable for cans |
Number of slivers combined | 10 pieces |
Electronic automatic leveler | None |
Lubricator | None |
Card box | Cross-needle plate chain drive |
Feed can height | 1000 mm |
Needle gauge | 9.52 mm |
Needle plate working width | 270 mm |
Number of needle plates | 44(72 upper,72 lower) |
Needle plate type | Insertable needle core |
Delivery rollers | 80 mm(upper),65 mm(lower) |
Drafting roller diameter | 80 mm(upper),30/67.5 mm(lower) |
Nip dstance | Minimum 32 mm |
Draft zone adjustment range | 32-67 mm |
Nip roller pressure | Air pressure,maximum 400 DaN |
Drive | Servo motor+VFD |
Number of motors | 5(feeder,carding box,drafting,drum,fan) |
Total installed power | 16 kW |
Central monitoring | Touch screen |
Suction system | Filter dust box |
Voltage | 380 V,50 Hz,3 ph |
Touch screen language | English/Chinese |
Weight | 3,800 kg |
The 2nd Gill Box ZCL-TT
Can delivery type | External automatic can changer |
Delivery can diameter | 700 mm |
Delivery can height | 1000 mm |
Delivery type | 2 cans,1 sliver |
Can changer | Automatic can changer |
Feed rack | Suitable for cans |
Number of slivers combined | 10 slivers |
Electronic automatic leveler | None |
Lubricating device | None |
Carding box | Cross-needle plate chain drive |
Feed can heght | 1000 mm |
Needle Gauge | 9.52 mm |
Needle Board Working Width | 270 mm |
Number of Needle Boards | 144(72 upper,72 lower) |
Needle Board Type | Insertable |
Sliver Delivery Roller | 80 mm(upper),65 mm(lower) |
Drafting Roller Diameter | 80 mm(upper),30/67.5 mm(lower) |
Nip Distance | Minimum 32 mm |
Drafting Zone Adjustment | 32-67 mm |
Roller Pressure | Air pressure,maximum 400 DaN |
Drive | Servo motor+VFD |
Number of Motors | 5(Feed,Carding Box,DraftingDrum,Fan) |
Total Installed Power | 16 kW |
Central Monitoring | Touchscreen |
Suction System | Filter Dust Box |
Voltage | 380 V,50 Hz,Ph=3 |
Touchscreen Language | English/Chinese |
Weight | 3,800 kg |
The 3rd Gill Box ZCL-TT
Can Delivery Type | External Automatic Can Change |
Sliver Can Diameter | 700mm |
Sliver Can Height | 1000mm |
Sliver Delivery Type | 2 Cans,2 Strips |
Can Change | Automatic |
Feeder | Suitable for Cans |
Number of Slivers Combined | 0 Strips |
Electronic Automatic Leveler | None |
Lubricating Device | None |
Card Box | Cross-needle Plate Chain Drive |
Feed Can Height | 1000mm |
Needle Gauge | 9.52mm |
Needle Plate Working Width | 270mm |
Number of Needle Plates | 44(72 Upper,72 Lower) |
Needle Plate Type | Insertable Needle Core |
Sliver Delivery Roller | 80mm(Upper),65mm(Lower) |
Drafting Roller Diameter | 80mm(Upper),30/67.5mm(Lower) |
Nip Distance | Minimum 32 mm |
Drafting Zone Adjustment | 32-67 mm |
Press Roller Pressure | Air pressure,maximum 400 DaN |
Drive | Servo motor+VFD |
Number of Motors | 5(feeder,carder,drafter,drum,fan) |
Total Installed Power | 16 kW |
Central Monitoring | Touchscreen |
Suction System | Filtered Dust Box |
Voltage | 380 V,50 Hz,3Hz |
