Wool Combing Machine&Wool Gill Box
Leading Technology
Quick Fault Response
High Production Capacity
FB91DZS Screw Type Wool Combing Machine
main feature :
FB91DZS screw type wool combing machine is designed for efficient wool fiber combing and alignment, ensuring stable sliver quality for advanced spinning preparation.
Product details
Suitable for wool fibers, chemical fibers, specialty hair fibers (such as cashmere, mohair), blended fibers, and more.
Suitable for the following fibers: bast fiber (linen, ramie, hemp, etc.)

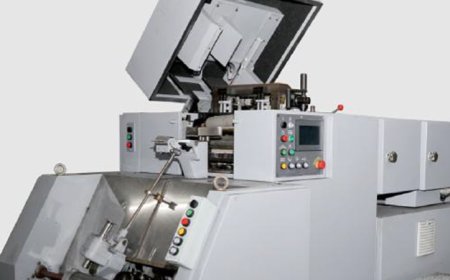

Key Highlight
Ensures superior fiber parallelization and sliver uniformity, matching the high-speed processing standards of the GN series.

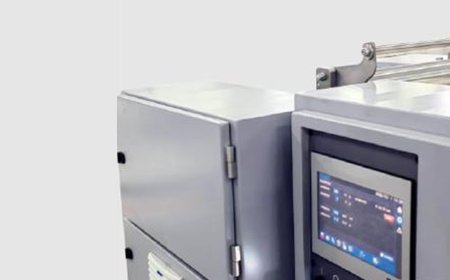

Smart Brain
Upgraded digital control system featuring multi-language presets and proactive maintenance alerts.
Main technical parameters
Model | Gilling FB91DZ01 | Giling FB91DZ02 | Gilling FB91DZ03 | Gilling FB91DZ04 |
Machine Type | N:Without Auto leveller | L:Electronic Auto leveller | P:With Pre-drafting Device | |
Gill Box Type | Screw Gill Box:S(Screw Pitch:7mm,9mm,11mm) | |||
Feeding Specifications | Ball Creel Feeding:Q | a.6-ball feeding b.10-ball feeding c.12-ball feeding | ||
Delivery Specifications | Can Creel Feeding:T Ball Delivery.Q | d.3-can feeding e.10-can feedingf 12-can feeding (Can Diameter:400/600/700/800/1000 mm;Height 900/1000/1100 mm) 1.Single ball delivery 2.Double ball delivery 3.Hollow ball | ||
Can Delivery:T | 3.Single can,single head delivery 4.Single can,double head delivery 5.Double cans,single head delivery 6.Double cans,double head delivery | M:Manual can change A:Automatic can change | ||
Delivery Speed | Screw Type S:30-200 m/min | |||
Feed Weight(Max.) | Screw Type S:240g/m | |||
Front Gauge | 1st Gilling:Screw Type S:22-65mm | |||
Delivery Weight(Min.) | 30g/m | |||
Number of Screw Heads | 2 | |||
Faller Bar Beats per Minute | 2000 beats/min | |||
Draft Ratio | Screw Type S:30-200 m/min | |||
