Flax Wet Spinning Machine FX516

main feature :

Flax wet spinning frame World latest model FX516 can be used in making flax spun yarns between 5.5 - 54Nm, wer processing in hemp as well. Have stepped over mechanical & computerized automatic controlling , now, enter into industry 3.0 version. Intelligent module and synchronized control tomake sure that, the main shaft, drafting shaft, feeding roller shaft, and lifting shaft, 4 shafts are under control by computer mathematical modeling.

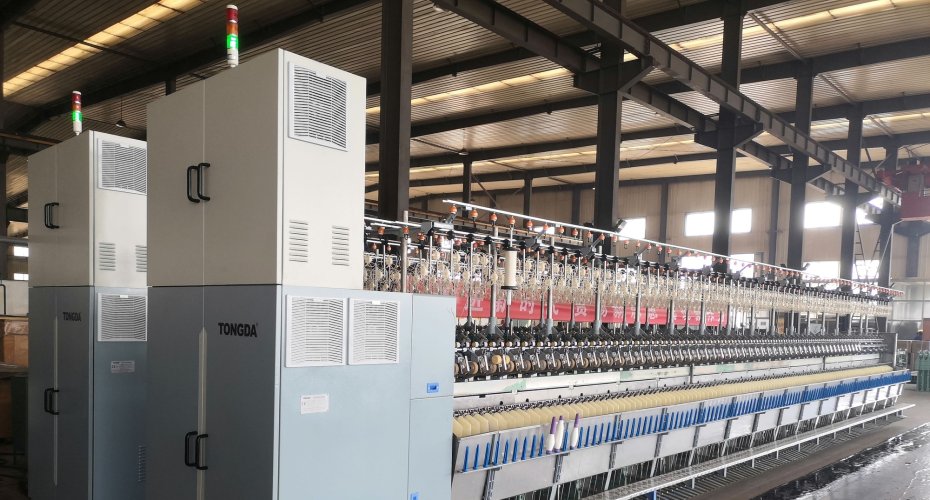

Flax wet spinning 主图
_0005_img_v3_006h_a954c40d-2a20-4a4a-ab7d-660b9e3e44cg
_0000_L1060045
_0004_L1030099
_0003_L1030104

Product details

The gearbox drive system of the spinning frame has been simplified into five units, which include the speed reducer motor and the servo motor driven by a frequency converter servo driver to achieve synchronous linkage and an intelligent control system.


  •



    The FX516 flax wet spinning machine features high-tech E-cam and E-drafting systems and an oblique wheel headstock. The draft roller adopts a bearing type, and the other two rows of the roller are also made of copper bearing types. It is equipped with three automatic devices, including an adjustable length auto doffing system, a ring plate automatic reset system, and an automatic stop system after doffing with automatic adjustment of the rear end yarn, without a crank.

  •



    The machine is also equipped with an auto oil dripping device, and a Japanese Panasonic PLC is used to control and display data. Stainless-steel parts have been added to the original FX508 standard, making it better than the FX505. The foot pedal has been replaced with an aluminum alloy pattern plate, and the rear baffle plate is made of stainless steel. The machine requires manual replacement of gears, but the rest of the accessories are the same as the original F508.

Main technical parameters

Spindle gauge

88mm

No.of spindle

256

Type ring

PG2-6274

Type spindle

D3501.D4501

Metric No

5_5~54Nm

Draft ratio

8.5-36

Lifting

210mm

Twists

350-800T/m

Speed of spindle

5000-8000rpm

Draft system

Single zong , single apron , two-wsy cylindet

Twist firection

Right

Creel

Suspended and seated spindles

Main motor

15/7kw

Overall dimension

12328(L)x1525(W)x2230(H)mm
