Blowroom
Complete clean and open cotton machines
Complete clean and open cotton machines
Excellent Machines
Boost your spinning efficiency
Alpha Series Foreign Fiber Separator
main feature :
Foreign fiber separator is designed to efficiently remove impurities and foreign fibers from cotton, wool, and other textile fibers, ensuring clean and high-quality fiber preparation.
Product details
The foreign fiber separators are designed according to the characteristics of full opening of raw cotton and fast cotton flow in the blowing carding process of cotton textile mills. This equipment is only used as a part of the cotton passage of the blowing carding unit, and no change is made to the blowing process. The equipment occupies a small area and is easy to install.

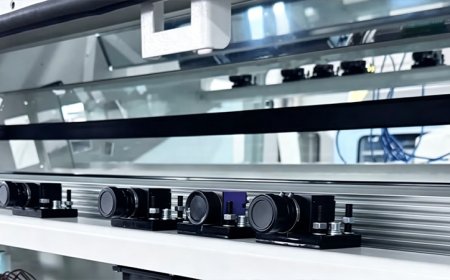

Precise Identification
Multi-spectral camera array with AI algorithm co-developed with Tsinghua University. Detects even tiny, hidden foreign fibers with zero omissions.
Efficient Waste Rejection
Innovative Laval nozzle tech from aerospace engineering. 2.3g single spray removes impurities thoroughly while minimizing quality fiber loss.

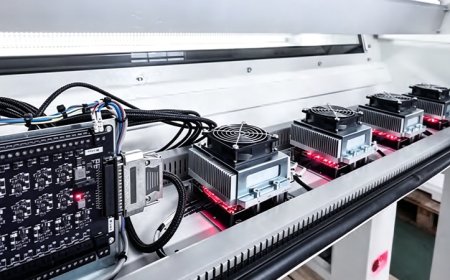

Powerful AI Computing
Top-tier NVIDIA chips deliver super computing power. Local edge computing ensures fast response and rock-solid operational stability.

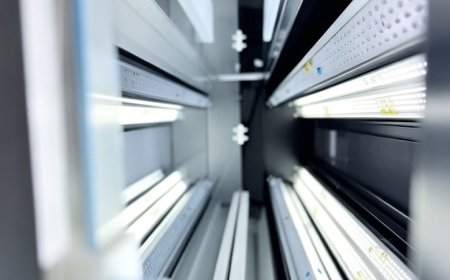

Compact & Durable
50,000-hour ultra-bright light source for low maintenance. Small footprint, easy installation, fits existing blowing process without modification.
Main technical parameters
Item | Alpha-1 Alpha-2 | Alpha-3 Alpha-4 |
Pipeline width | 1200mm 1200mm | 1600mm 1600mm |
Power | 1.5kW 1.5kW | 2.1kW 2.1kW |
Voltage | 380V 380V | 380V 380V |
Max.output | 1000kg/h 1000kg/h | 1000kg/h 1000kg/h |
Multi-spectral Cameras | 6 12 | 16 20 |
Al computing power | 201 TOPS 402 TOPS | 536 TOPS 670 TOPS |
Illumination | Customized High-Uniformity | Hybrid Array Lght Source |
Light source lifespan | 50000h 50000h | 50000h 50000h |
No.of valves | 24 24 | 32 32 |
Dimensions | 1800×2336×3922(mm) 1800×2336×3922(mm) | 2200×2336×3922(mm) 2200×2336×3922(mm) |
Area | 1800×910(mm) 1800×910(mm) | 2200×910(mm) 2200×910(mm) |
Weight | 1.1t 1.1t | 1.5t 1.5t |
Inquiry Now
TONGDA Group is a company to provide excellent textile solution with advanced technology including Spinning system, Weaving system, knitting machinery, finishing &Dyeing system，Nonwoven system and the related spare parts.
Our company has a rich product line, and we are always committed to continuous innovation and technological optimization of our products.
