Friction Spinning Machine

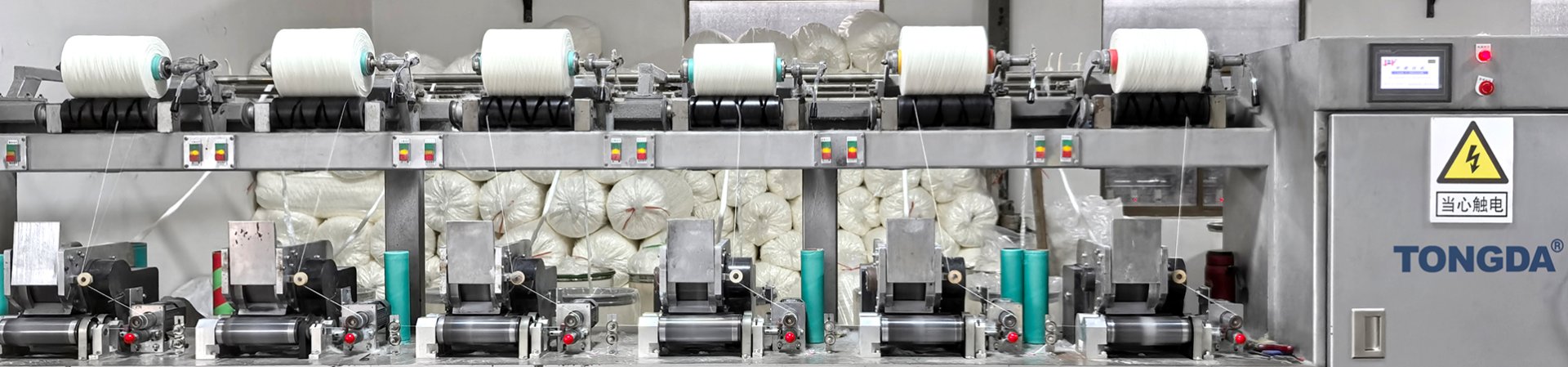

TD1000-6 Friction Spinning Machine
Single Spindle Controllable
Frequency Conversion Drive
Can Make Core-Spun Yarn
Friction Spinning Machine TD1000-6
main feature :
Friction Spinning Machine TD1000-6 is suitable for pure cotton, waste cotton, polypropylene, polyester, acrylic aramid, core-spun varn and other fbers, suitable for spinning 0.5Ne-3Ne ma-terials, widely used in flter materials, water fltration, water treatment,aramid bulletproof vests, mop yarn, brake belts of ships and trucks, etc.
Product details
Friction Spinning Machine TD1000-6 is suitable for pure cotton, waste cotton, polypropylene, polyester, acrylic
aramid, core-spun varn and other fbers, suitable for spinning 0.5Ne-3Ne ma-terials, widely used in flter materials, water fltration, water treatment,aramid bulletproof vests, mop yarn, brake belts of ships and trucks, etc.

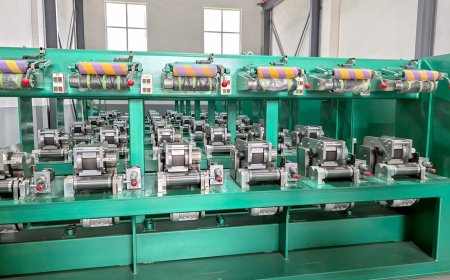

Rack structure
The frame has reasonable and stable structure, and is easy to adjust vertically and horizontally,simple and decent.

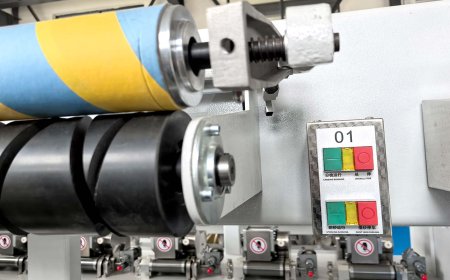

Guiding bar
The technology of drafting to feed by elevated trolley is applied in conjunction with optical auto-stop for breakage prevention to make the feed quality stable and reliable. Unexpected draft is minimized meanwhile to prevent re-feeding of fiber.

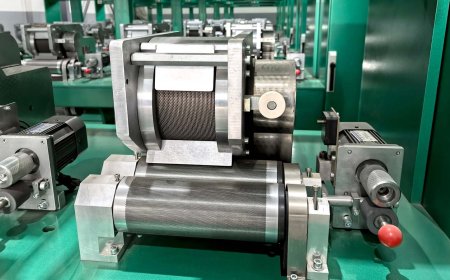

Draft
Dual roller groove rotary holding.Upper roller reduces Vibration,increases pressure for stable driving. Minor draft ratio helps fberextension. Lower roller has anti winding device.Manual switch at draft-to -feed unit for manual feeding or clearing congested wool tops.

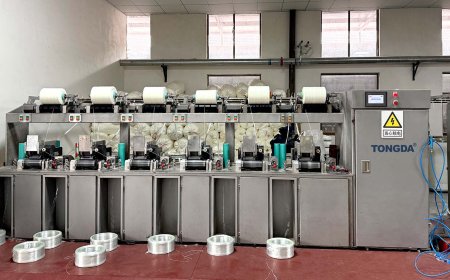

Fiber input
The unique large fber input mechanism is particularly TONGDA Application Showcase Main technical parameters Spinneret (spindle) per machime suitable for spinning thick or extraordinary thick yarn,which increases the yarn yield up to a level which is much beyond the capacity of the other models of machine.

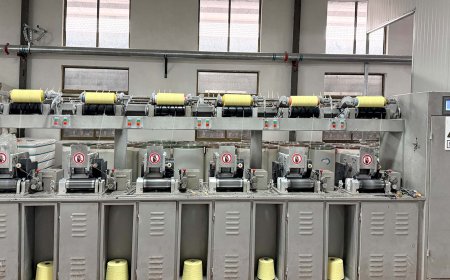

Twisting mechanism
The twisting dust cage, made of quality materials with an anti-static coating,is light, hard, breathable and rotates flexibly.This boosts twisting effciency,ensuring stable and strong yarn. Supported by double bearing seats, it suits high-speed rotation and has a longer service life.

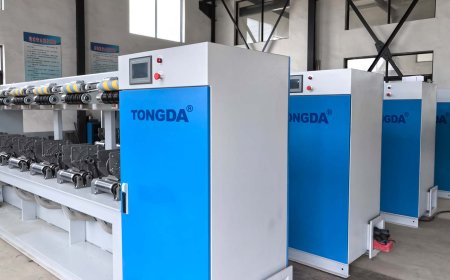

Negative pressing and dust removing
Negative pressure sources, channels, and ports are well-allocated to ensure even negative pressure effciently. The port negative pressure difference is ≤5%,Exhaust removes and collects dust at each spinneret for collective discharge.A gettering box can be set up according to fber types.

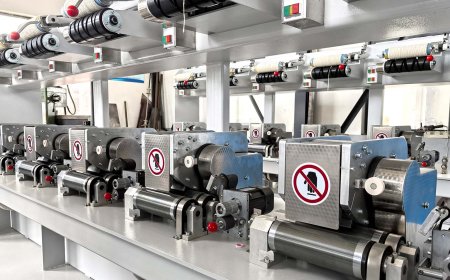

Output and winding
Independent output device enables adjustment ofwinding force randomly.winding force randomly. Winding groove drum has two options of bake lite and alloy.
Main technical parameters
| Spinneret (spindle) per machine | 6 |
| Spinneret (spindle) pitch | 660mm |
| Main frame contour size (LxWxH) | 4180mm x818mm x1699mm |
Electrical cabinet contour size (LxWxH) | 818mm x 350mm x 1699mm |
| Net machine weight | 2.68t |
| Production covering area about (600mm can is used) | 6000mm x 6180mm |
| Feed quantity | ≤35g/m |
Feeding can specification： | diameter 200-600mm， height 900 mm or 1100 mm. |
| Draft unit： | Two roller pairs with microscale draft, draf ratio ≤1.05 |
| Output unit: | Max output speed of 239m/min max diameter of output is 8mm |
| Resultant yarn specification: | max width of resultant yarm is 268mm.max span of resultant yarn is 200mm, max weight of the resultant yar is 9kg. |
| Power source： | three phase altrnating current 380V 50HZ |
Q1: What raw materials can the TD1000-6 friction spinning machine process?
A1: The TD1000-6 can process pure cotton, waste cotton, polypropylene, polyester, acrylic, aramid and selected blended fibres. It is designed mainly for coarse, bulky and technical yarns within an approximate range of 0.5–3 Ne. Final suitability depends on fibre length, fineness, cleanliness, feed form and the required yarn structure.
Q2: Can the TD1000-6 produce core-spun yarn?
A2: Yes. The machine can be configured for selected core-spun yarn applications. Please provide the core material, core-yarn count, sheath-fibre material, covering ratio, target yarn diameter and required strength. A raw-material and spinning test is recommended for aramid and other high-performance fibres.
Q3: What information is required to obtain a TD1000-6 quotation?
A3: Please provide your raw material, fibre specifications, target yarn count, yarn structure, end-product application, required production capacity, feeding-can size, package requirements, factory voltage and installation country. For recycled or technical fibres, representative raw-material samples should be supplied so that the feeding, drafting, twisting and dust-removal configuration can be evaluated.
Product Advantages
Key Advantages of the TD1000-6 Friction Spinning Machine
The TD1000-6 is a six-position friction spinning machine designed for producing coarse, bulky and core-spun yarns from virgin, recycled and technical fibres. It is suitable for industrial yarn applications that require flexible raw-material processing, high fibre input and controlled package winding.
1.Wide Raw-Material Compatibility
The machine can process pure cotton, waste cotton, polypropylene, polyester, acrylic, aramid and selected blended fibres. It supports the production of approximately 0.5–3 Ne coarse yarn and selected core-spun yarn structures, subject to raw-material and yarn testing.
2.High Fibre Input for Extra-Coarse Yarn
A specially designed large fibre-input mechanism supports feed quantities of up to 35 g/m. The six-position arrangement and maximum output speed of up to 239 m/min make the machine suitable for thick yarns that exceed the processing range of many conventional spinning systems.
3.Stable Feeding and Controlled Drafting
The elevated feed trolley works with an optical stop system to detect material breaks and reduce irregular feeding. A two-roller drafting unit, anti-wrapping lower roller and microscale draft ratio help maintain stable fibre delivery and simplify the removal of blocked material.
4.Efficient Friction Twisting System
The lightweight twisting cage uses an anti-static surface and breathable structure to support efficient fibre collection and yarn formation. Double bearing supports improve rotational stability and help extend the service life of the twisting assembly.
5.Balanced Dust Removal and Independent Winding
Optimised negative-pressure channels maintain a pressure difference of no more than 5% between spinning positions. Dust and fly are collected for central discharge, while the independent output and winding system allows winding force to be adjusted according to the yarn structure and package requirement.
