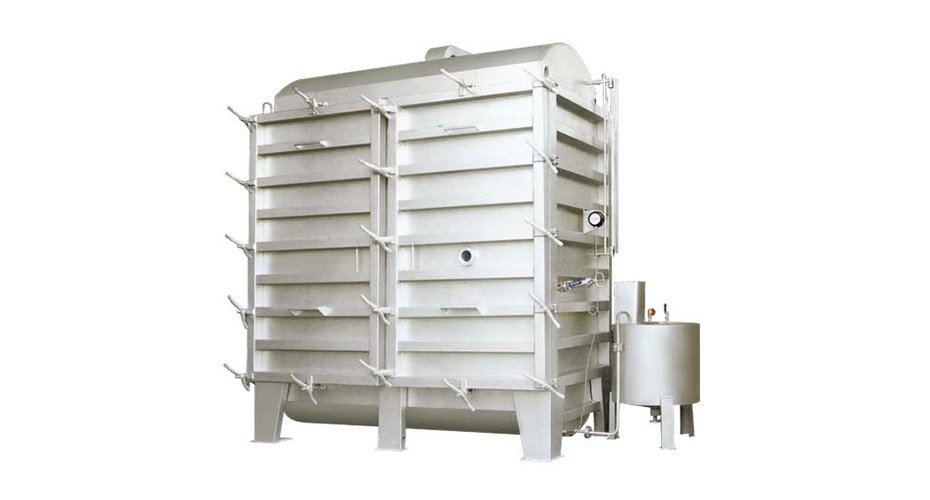

Hank Yarn Dyeing Machine TDY
main feature :
The Hank Yarn Dyeing Machine TDY comes equipped with a reliable PLC control system and a clear display of the water line. The machine's design is convenient for adding and removing yarns, as well as cleaning the jet pipe. It also boasts aesthetically pleasing appearances and safety features.
Product details
It is suitable for dealing with cotton flax, wool, man-made hairs,terylene and blending twisted yarm ahead and later. Whenmodel Y is packed with yarns, it could make several processes ofdyeing finished, such as swelling, refining, bleaching, dyeing, and pliability etc.
The distance between one and another yarn bar is from 426 to 855 millimeters, So it is suitable for dyeing different hank yarms.
It is equipped with precise and reversing controller to enssure that inside of hank yarns could be averagely dyed by changing automation circulation direction of dying.
Circulation water pump is well designed to fit for dyeing crafts of different kinds of hank yarns with changes in speed by mucch more leather belt wheels of degrees.
Model Y could reduce the deflection of crafts vat by being used two series machines.
The body of machine and other parts getting in touch with dyeare made of excellenl stainless steel, which has high erosion-resisting ability.
High-efficiency axial-flow pump made of stainless steel is equipped with sealed mechanical device.
Be equipped with two sets.
Diversion block makes dyes circulation inside well-distributed.
Be equipped with material adding pumps which are made ofexcellent stainless steels.(excluding those models which under Y20) The material adding vat is equipped with, chum-dasher, aidding materials,oppo site washing back and forth and cleaning devices (devicunder Y-200 don't need to churn-dasher) Safe and convenient device getting samples.
Rising curve is controlled by semi-automation computer.
Fully auto control of color bucket.
The main pump uses frequency conversion control.
Material adding pumps and barrels are used in those modlels under Y20 Rated material feeding system.
Conveyance trolley and yarn hang box.
The highest work temperature: 98°C
Rising rate of temperature: About 30minutes ranging form 20°C to !98°C according to the steamy pressure 6kg/cm?.
Falling rate of temperature: About 10minutes ranging form 98°Cto 80°C according to the steamy pressure 3kg/cm?.
Main technical parameters
Model | Carrying amount | General power | Standard size | Three-layer type | |||||
L(mm) | W(mm) | H(mm) | Carrying amount | L(mm) | W(mm) | H(mm) | |||
Y-5 | 2.2 | 1.1 | 1235 | 820 | 1937 | ||||
Y-10 | 4.5 | 1.1 | 1235 | 900 | 1937 | ||||
Y-20 | 9 | 1.1 | 1400 | 1050 | 2080 | ||||
Y-30 | 14 | 2.25 | 1714 | 1125 | 2050 | ||||
Y-50 | 23 | 2.25 | 1714 | 1326 | 2050 | ||||
Y-100 | 45 | 2.95 | 2417 | 1357 | 2155 | ||||
Y-200 | 90 | 4.75 | 2830 | 1637 | 2210 | ||||
Y-300 | 140 | 5.5 | 2815 | 1590 | 3150 | 170 | 2815 | 1590 | 3410 |
Y-400 | 185 | 7 | 2905 | 1880 | 3160 | 235 | 2905 | 1880 | 3420 |
Y-600 | 275 | 9 | 3510 | 2178 | 3305 | 340 | 3510 | 2178 | 3565 |
Y-800 | 360 | 12.5 | 3550 | 2490 | 3310 | 440 | 3550 | 2490 | 3570 |
Y-1000 | 455 | 12.5 | 3775 | 2490 | 3310 | 550 | 3775 | 2490 | 3570 |
Y-1200 | 545 | 13.5 | 3910 | 2760 | 3570 | 650 | 3910 | 2760 | 3830 |
Y-1000x2 | 910 | 25 | 6935 | 2550 | 3310 | 1100 | 6935 | 2555 | 3570 |
Y-1200 x 2 | 1090 | 33 | 7105 | 2830 | 3570 | 1300 | 7105 | 2830 | 3830 |
FAQ
Q1: Which yarn materials can the TDY hank dyeing machine process?
A1: The TDY is designed for cotton, flax, wool, acrylic, polyester and blended twisted yarn in hank form. It can handle bulking, scouring, bleaching, dyeing and softening at a published working temperature of 98°C.
Q2: What hank sizes can be loaded into the TDY?
A2: The published spacing between the hank rods is 426 to 855 mm. The final machine configuration should match the hank loop length, yarn count, weight per hank and planned batch weight.
Q3: What information is needed for a TDY quotation?
A3: Please provide the fibre type, yarn count, hank loop length, weight per hank, total batch weight, process stages and required temperature. For a Middle East project, also provide the local voltage and frequency, steam pressure, cooling-water temperature, water hardness, drainage conditions and workshop space.
Product Advantages
1.Flexible Hank Rod Spacing
The spacing between hank rods covers 426 to 855 mm, helping the machine configuration match different hank loop lengths and yarn loading needs.
2.Forward and Reverse Liquor Circulation
A reversing controller changes the direction of dye liquor circulation. This arrangement promotes liquor contact across the hank load during processing.
3.Several Processes in One Yarn Loading
The TDY can carry out bulking, scouring, bleaching, dyeing and softening without removing the yarn between these process stages.
4.Axial-Flow Pump and Flow Diversion
An axial-flow circulation pump with a mechanical seal works with a flow-diversion block to guide dye liquor through the yarn load.
5.Stainless Steel Wetted Parts and Handling Equipment
Parts in contact with dye liquor are made of stainless steel. Yarn carriers and loading trolleys can support hank loading, unloading and movement around the dyehouse.
