High Speed Rapier Loom
High Speed Rapier Loom
Accurate control
Strong beating up
Super motor drive structure
Leno for selvage structure
High speed weaving
High-Speed Rapier Loom R450
main feature :
The High-Speed Rapier Loom R450 is suitable for weaving cotton, wool, linen, chemical fiber, blended fabric;It is equipped with a motor driven by an inverter, featuring electric weft selection and detection. It also includes advanced intelligent software programming, a double back beam structure, and digital adaptive brake technology.
Product details
Accurate control
Digital loop control servo electronic let off and take up to achieve the cnstant tension weaving.
Strongbeatingup
Powful Bilateral conjugate cam for beating up.
Theoptimal fabricquality
Digital control positioning stop/run. Intelligent auto pick finding. Auto sation for weft breakageand warp breakage. Special function to make all heald frame in levelingposition when weft or warp breaks.
Thefast fault detection
Intelligent fault display, can accurately determine the fault reason, and provide the test scheme.
Themost convenient management
Auto statistics the output for 4 shifts and total output can be controlledvork and change the fabric pattern quickly.

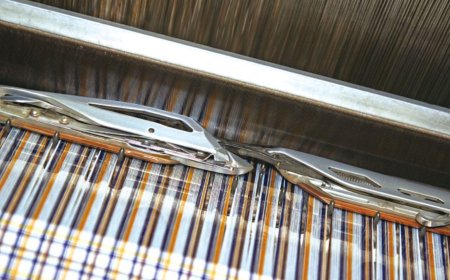

Weft Insertion System
Adopting small shedding, small rapier head, small stroke, good for high speed running and reducing noise.

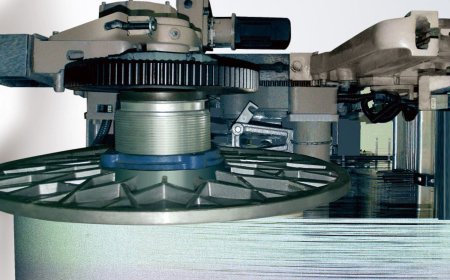

Configurable
Loom can be equipped with Double warp beam or multi-warp beam. (Front & back, left & right, up & down.)
Main technical parameters
Q1: What fabrics can the R450 rapier loom weave?
A1: The R450 can be arranged for cotton, wool, linen, synthetic fiber and blended fabrics. Typical applications include apparel fabric, yarn-dyed fabric, decorative fabric, upholstery fabric and other light or heavy woven materials.
Q2: What reed widths and operating speeds are available?
A2: Published reed widths include 190, 210, 220, 230, 250, 260, 300, 320, 340, 360 and 380 cm. The design speed is 550 rpm, while the stated operating range is 400 to 450 rpm. Actual speed depends on yarn, width, density, fabric weight and pattern.
Q3: What information is needed for an R450 machine proposal?
A3: Please provide the fabric name, yarn type, yarn size, finished width, warp density, weft density, fabric weight, weave structure, weft colours, warp beam quantity and planned output. Local voltage, frequency, roll diameter and workshop dimensions should also be provided.
1.Broad Yarn Range
The R450 can handle cotton yarn within 3 to 80S, filament yarn within 10 to 3300D and man-made fiber yarn within 5 to 1000 tex. It can be arranged for cotton, wool, linen, synthetic fiber and blended fabrics.
2.Compact Rapier Motion
The small shed, compact rapier head and short rapier stroke support continuous weaving. The published design speed is 550 rpm, with a stated operating range of 400 to 450 rpm.
3.Beating System for Different Fabric Weights
A separated sley and double-sided conjugate cam control the beating motion. Single or double back-beam arrangements can be prepared according to the fabric weight and warp plan.
4.Dobby and Weft Colour Options
The electronic dobby supports up to 20 heald frames. The electronic colour unit can handle 4, 6 or up to 16 weft colours for patterned and yarn-dyed fabrics.
5.Multiple Warp Beam Arrangements
The R450 can use a single, double or multiple warp beam arrangement. Servo electronic let-off and take-up coordinate warp tension, fabric movement and pick density.
