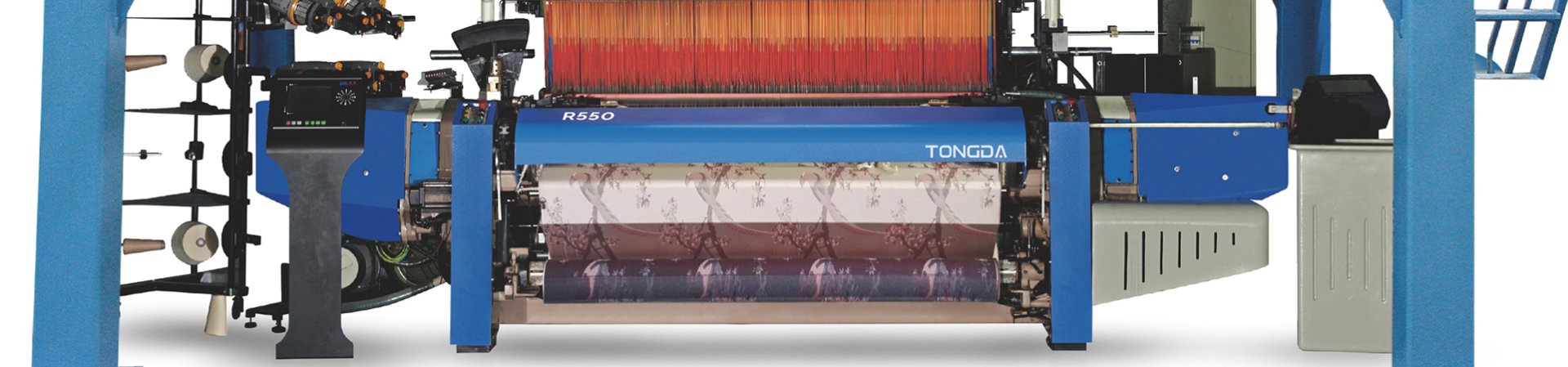

High Speed Rapier Loom
High Speed Rapier Loom
Accurate control
Strong beating up
Super motor drive structure
Leno for selvage structure
High speed weaving
High-Speed Rapier Ultra-Wide Loom TD668
main feature :
High Speed Rapier Ultra-Wide Loom TD668 designed for ultra-wide fabric,a high-performance, high-intelligenceequipmentup to 1000CM.
Product details
High Speed Rapier Ultra-Wide Loom TD668 designed for ultra-wide fabric,a high-performance, high-intelligenceequipmentup to 1000CM.
Main technical parameters
| Main drive | Switched reluctance motor is directly driven, according to the actual load output torque size, compared with thetraditional loom energy saving 20-30%. |
| weft insertion | The space four-bar linkace crives the rapier wheel to move back and forth throuoh the sector cear The weft is fed from theeft side and handover in the middle. It optimizes the ovnamic balance of the weft insertion mechanism. reduces the momenof inertia of the weft insertion mechanism, and ensures the high-speedperformance of the weft insertion mechanism. |
| Beating up | Conjugate cam beating up,Separate slay,Strengthen the rigidity of beating up and increase the beating up forceMoving balance is better for high speed weaving. |
| Shedding | Lower Electronic Dobby , with 20 pcs heddle frames at mostEasy to change and save the pattern and weave.Trial weave and Piece by piece inspection function . Digital setelectronic heald leveling time. |
| Let off | Servo electronic let-off, digital closed-loop control constant tension weaving, From full beam to empty beam.the tension fluctuation is small. |
| take up | Servo electronic take-up, Variable weft density weaving can be realized. |
| pick finding | AUTO pick finding.When weft finding, loom depart with dobby and Main motor drive the dobby directly, to get an accurateaction to find weft then ensure there is no wrong pattern in fabric, helping to eliminate the starting mark. |
| color selecting | Stepper motor control rotary high speed electronic weft selector4-16 colors. |
| Heald frame link | Top-adiust Heald frame linkrod system.Height adiustment entirely can be done above the heald frame. easv foinstallation.Automatic Heald leveling time adjustment and Automatic Heald leveling function. |
| Control system | The main servo and host computer adot Ethercat communicaion. the whole machine adont 32-bit CPU microcomputerintellicgent control, break warp, break weft empty weft, mult-weft, positioning stop, automatically detect fault and display fault.The fabric pattern, tension, weft density and other process parameters are input by the panel or USB input or wireless input parametersand according to set parameters operation, stop, output, efficiency and other loom self-statistics, each control work is accurate and sensitiveand can realize the industra internet of thinas, the cioud monitoring equipment operation and the colecton data active upoad platform anthe on-line inteligent diagnosis and carries on the alarm push function, the remote debugging program, can be used mobile phones, aptopsand other mobile monitoring. |
| lubricating & Cooling | Drive oil way by single oil pump motor.Closed forced circulation lubrication system and Forced water cooling system,forced lubrication and cooling functions, ensure the machine normal temperature rise. |
| Reed width | 380cm、400cm、420cm、460cm、480cm、520cm、540cm、680cm、最大可达1000cm |
| Speed | 680CM 机经济转速 160-220转/分钟。 680CM economic speed 160-220 rpm. |
Q1: What widths and operating speeds are available for the TD668?
A1: Published reed widths include 380, 400, 420, 460, 480, 520, 540 and 680 cm. Project widths can reach 1000 cm after engineering review. Published speed data lists 160 to 220 rpm for the 680 cm model. Speed for other widths must be confirmed according to the fabric and machine plan.
Q2: What fabrics can be woven on the TD668 ultra-wide loom?
A2: The TD668 is intended for ultra-wide fabric projects. Typical project enquiries include industrial fabric, geotextile, agricultural fabric, filter fabric and other large-format woven material. Suitability depends on yarn type, fabric weight, density, width and required strength.
Q3: What information is needed for a TD668 project proposal?
A3: Please provide the yarn type, finished width, warp density, weft density, fabric weight, weave structure, weft colours, warp tension, roll diameter and planned output. Factory width, foundation data, lifting capacity, voltage, frequency and cooling-water conditions should also be provided.
1.Wide Reed Space Range
Published reed widths include 380, 400, 420, 460, 480, 520, 540 and 680 cm. Project widths can reach 1000 cm after technical review.
2.Centre Weft Handover
The spatial four-bar drive moves the rapier wheels, with the weft yarn transferred at the centre of the shed. This layout is designed for long weft travel across wide reed spaces.
3.Dobby and Weft Colour Options
The lower electronic dobby can work with up to 20 heald frames. An electronic colour unit supports 4 to 16 weft colours for patterned wide fabrics.
4.Electronic Warp and Cloth Control
Servo electronic let-off uses closed-loop tension control across the warp. Servo electronic take-up supports changes in pick density according to the weaving plan.
5.Lubrication and Cooling System
Direct motor drive, closed forced-circulation lubrication and forced water cooling support the long-width machine structure. The control panel displays process and fault data for operating checks.
