TDS4 4 Guide Bars High Speed Tricot Machine
main feature :
TONGDA high-speed tricot machine with guide bars offers stable operation and high productivity for fine and high-density warp knitted fabrics.
Product details
It is for polyester, spandex, acrylic fiber, blended yarn and other raw materials. This machine can produce plain fabrics, elastic fabrics, and various types of plush fabrics, which can be used for garment, home textiles, and industrial fabrics.

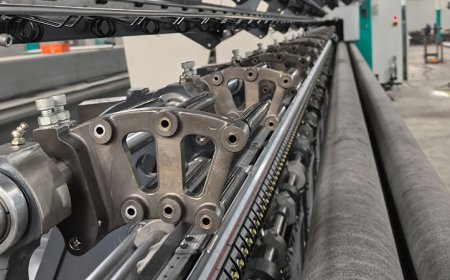

Stable & Durable Operation
Crank linkage main drive, combined with forced pressure lubrication and oil temperature control, ensures long-term reliable performance.

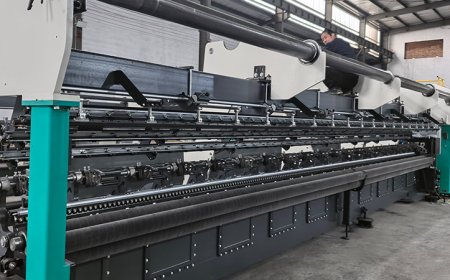

Precision Material Handling
Electronic yarn let-off and fabric take-up systems guarantee consistent tension and uniform fabric quality.

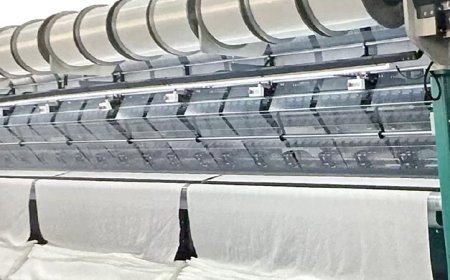

High Production Efficiency
A maximum speed of 2000 rpm, paired with 4 guide bars, enables fast and efficient manufacturing of complex fabrics.
Main technical parameters
Needle type | Compound needle |
Gauge | E24 E28 E32 |
Guide Bar No. | 4 |
Main drive | Crank linkage |
Max speed | 2000 rpm |
Pattern drive | Pattern disk(Optional:Electronic control) |
Yarn let-off device | EBA Electronic yarn let-off |
Fabric take-up | Electronic take-up |
Oil supply | Independent batching device with bristles |
Optional device | Broken yarn automatic stop device |
Q1: What fabrics can the TDS4 tricot machine produce?
A1: The TDS4 can produce plain, elastic and plush warp-knitted fabrics. Applications may include garment fabric, home textile material and industrial textile products. The applicable fabric depends on yarn, gauge, lapping plan and finishing process.
Q2: What is the difference between the TDS3 and TDS4 tricot machines?
A2: The TDS3 uses three guide bars and has a published mechanical speed of 2200 rpm. The TDS4 uses four guide bars and has a published mechanical speed of 2000 rpm. The fourth guide bar provides an additional yarn-lapping path for fabric structures that require another yarn arrangement.
Q3: What data is needed for a TDS4 machine quotation?
A3: Please provide the yarn material, yarn denier, fabric use, finished width, fabric weight, courses, wales, elasticity, gauge, lapping plan and planned daily output. Voltage, frequency, workshop temperature, beam data and fabric-roll requirements are also needed.
Product Advantages
1.Four-Guide-Bar Arrangement
The TDS4 uses four guide bars to provide separate yarn-lapping paths. This arrangement supports plain, elastic and plush warp-knitted fabric structures.
2.Three Gauge Options
E24, E28 and E32 gauge plans are available. The gauge can match the yarn denier, fabric weight, stitch density and required surface structure.
3.Electronic Yarn Let-Off and Take-Up
EBA electronic yarn let-off manages yarn delivery at the beams. Electronic fabric take-up coordinates fabric movement after loop formation.
4.Pattern Control Options
The machine can use a pattern disk or an electronic pattern arrangement. The applicable system depends on the fabric repeat, guide-bar movement and production plan.
5.Crank Drive and Oil Control
The crank-linkage main drive works with forced-pressure lubrication and oil-temperature control. These systems manage lubrication conditions during continuous machine operation.
