| Model | TDHKS-3/4 |
| Needle model | medium stroke comcompound groove needle |
| model | E28、E32 |
| Working width | 294"、340"、360" |
| Guide bar number | 3、4 |
| Max speed | 2200(rpm) 、2100(rpm) |
| Warp Let-off manner | EBC electronic let-off |
| Moving system | EL or Cam |
| Draw-off motion | Electronical Thicker roller |
| Automatic stop infrared device | mechanic draw -of (electronicforoption) |
| Beam spec | φ535×535mm(φ21"×21"),Φ765×535mm(φ30"×21")Φ1016×535mm(φ40"×21") |
| Cank linkage box lubrication | Inifiaie pressing lubicate and oilcicling constant temperature conto system |
| Main power | 11kw、11kw、11kw |
| Slow moving motor power | 0.75kw |
| Terry motion | medium stroke compound needle,needle core,sinker
spandex device |
|
FAQ
Q1: What is the difference between the TDHKS three-bar and four-bar versions?
A1: The three-bar version uses three guide bars, while the four-bar version adds another guide bar for an additional yarn-lapping path or fabric structure. The suitable version depends on the yarn plan, fabric design, elasticity and required operating speed.
Q2: Which yarns and fabrics can the TDHKS-3/4 process?
A2: Yarn plans may include polyester filament, nylon, acrylic, polyester textured yarn, spandex and approved blends. Applications can include regular tricot, elastic fabric, napped fabric, lining material, curtains, mosquito netting, mattress fabric, shoe material and industrial textile material.
Q3: What data should a buyer provide for a TDHKS-3/4 proposal?
A3: Please provide the yarn material, yarn denier, fabric use, finished width, fabric weight, courses and wales, elasticity, gauge, guide-bar quantity, lapping plan and required daily output. Local voltage, frequency, workshop temperature, installation area and beam-handling conditions are also needed.
Product Advantages
1.Three- or Four-Guide-Bar Layout
The TDHKS platform offers three-guide-bar and four-guide-bar versions. The guide-bar arrangement can match the yarn-lapping plan, fabric structure and pattern scope.
2.E28 and E32 Gauge Options
E28 and E32 gauge plans support fine tricot structures made with filament and approved elastic yarns. The applicable gauge depends on yarn denier, fabric weight and the target sample.

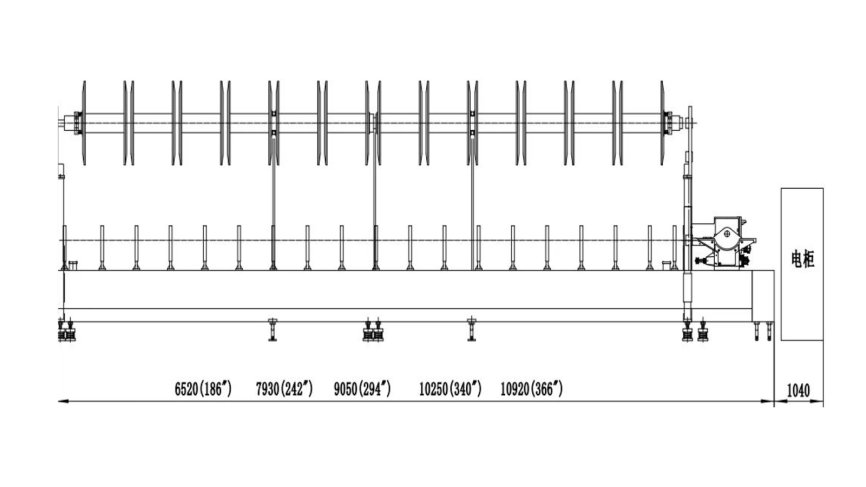

3.Wide Working Widths
Published working widths include 294, 340 and 360 inches. These width plans support broad-width household, apparel and industrial textile programs.
4.Electronic Warp and Fabric Control
EBC electronic let-off manages yarn delivery at each warp beam. Electronic fabric take-up coordinates the finished fabric movement according to the knitting program.

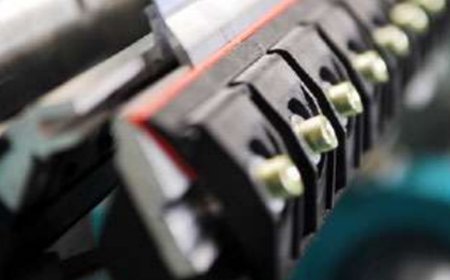

5.Lightweight Moving Parts and Oil Control

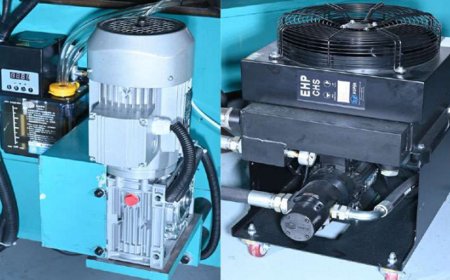

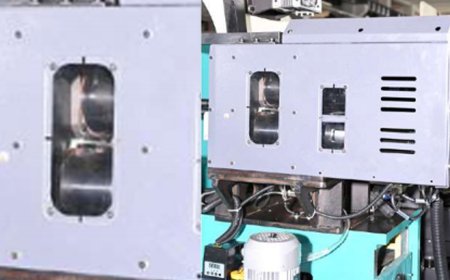

Carbon-fiber needle-bed components and magnesium-alloy knitting parts reduce moving mass. The crank mechanism uses pressurized lubrication with oil circulation and temperature control during production.
