High-Temperature. High-Pressure Dyeing machine TD241C

main feature :

The TD241C High-Temperature. High-Pressure Dyeing machine features advanced technology, including a balanced circulation pump and a reversing heat exchanger. This ensures high efficiency, energy savings, and a long lifespan. The machine is capable of catering to various cheese dyeing requirements and has a reverse mechanism for forward and backward circulation of the dye liquor as per technological needs.

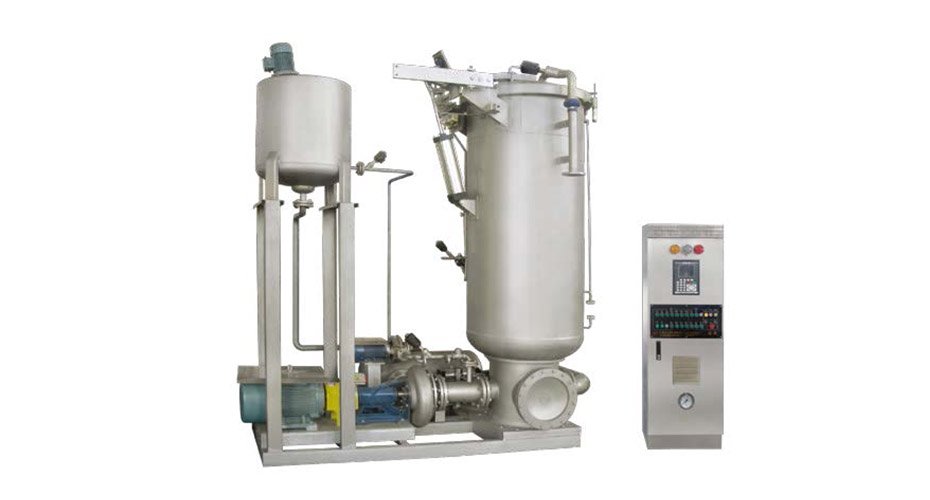

-1_0000_TD241C HIGH-TEMPERATURE. HIGH-PRESSURE DYEINGMACHINE

Product details

Adoption of high-efficient balanced circulation pump and reversing heat exchanger integrating apparatus creates features of compaact structure.

Has the high efficiency, the province energy, the life to be lonig. Can meet the needs which each kind of pony roll yarn dyes.

Equipped with reverse mechanism to180°C realize forwaard and back ward circulation of dye liquor according to technological requirement;

Adopting pressurized form and air cushion form (or pressurized by using auxiliary feed pump);

Nick sealing and self-sealing by internal pressure;

High automation, computer temperature control, full-autormatic control of dyeing process including water in, water out, temperatture rise, thermal insulation, temperature drop, washing, etc;

Timing and quantitative regulation of yarn feed and stream inpbut by proportional control valve; Proportion control valve designvaries depending on our customers' choice.


Main pump motor drive for frequency inverter control allowslimitless flow control to save energy consumption on starting and load-relievingoperation Pressure material: Durable SUS321 (or 316L);Our product designvaries

depending on our customers' choice.

Our products are maade of corrosion resistant steel grades and have a long service life.

Safety interlock for cover using pressure controller and temperature controller to control locking pin on the cylinder opening. Tthe cover can be opened only when pressure is "0" and temperature below 80°C;

High temperature liquor discharge system with no instantarheous negative pressure produced providing safer liquor drainage;

The outdoors-installed heat exchanger is designedfor a direct connection with the main pump, thus giving a compact arrangerment.

This design allows higher heat efficiency and lower energy consumpticn,and low bath ratio, short piping.

Free choice of components and high-speed screen frame unloading allows lower labor intensity.

Main technical parameters

Type

Gauze layer

Pony roll gauze quantity

Biggest load capacity

Pump output

TD241C-43

3

12

12

5.5

TD241C-43

6

24

24

5.5

TD241C-53

36

36

7.5

TD241C-70

54

54

11

TD241C-85

108

108

15

TD241C-90

114

114

15

TD241C-105

144

144

18.5

TD241C-120

216

216

22

TD241C-145

324

324

30

TD241C-166

414

414

37

TD241C-186

540

540

45

TD241C-43

8

32

32

7.5

TD241C-53

48

48

11

TD241C-70

9

81

81

15

TD241C-85

162

162

18.5

TD241C-90

171

171

22

TD241C-105

216

216

22

TD241C-120

324

324

30

TD241C-145

486

486

45

TD241C-166

621

621

55

TD241C-186

810

810

75

TD241C-200

972

972

90

TD241C-90

12

228

228

30

TD241C-105

288

288

37

TD241C-120

432

432

45

TD241C-145

648

648

55

TD241C-166

828

828

90

TD241C-186

1080

1080

110

TD241C-200

1296

1296

132

TD241C-226

1608

1608

160
