High-Temperature High-Pressure dyeing Machine TD241E

main feature :

High-Temperature High-Pressure Dyeing Machine TD241E features a compact structure and high efficiency due to its balanced circulation pump and reversing heat exanger. It has long lifespan, low energy consumption, and high automation. The machine controls all aspects of the dyeing process, including temperature rise, thermal insulation, and washing. It also has a reverse mechanism for forward and backward circulation of dye liquor as per technological requirements.

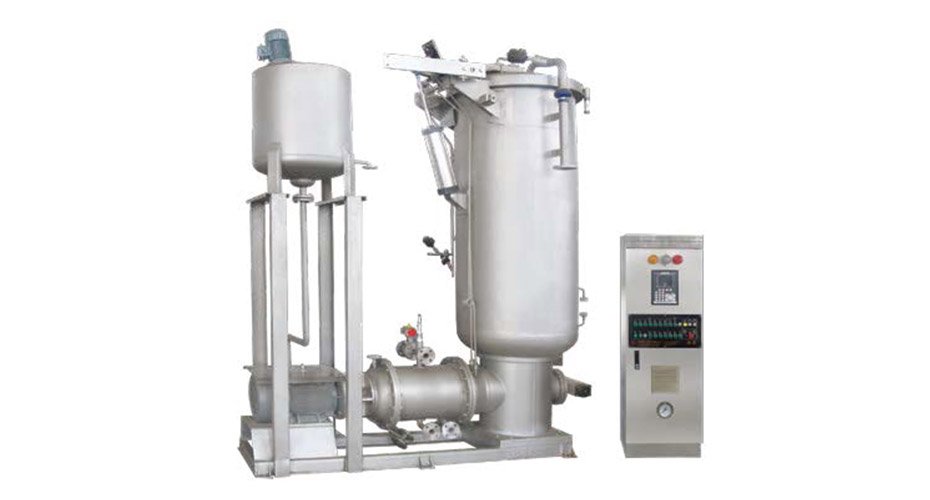

-1_0000_TD241E HIGH-TEMPERATURE, HIGH-PRESSUREDYEING MACHINE

Product details

Adoption of high-efficient balanced circulation pump and reversiing heat exchanger integrating apparatus creates features of compact structure.

Hasthe high efficiency, the province energy, the life to be long.

Cain meet the needs which each kind of pony roll yarn dyes.

Equipped with reverse mechanism to180°C realize forwaard and back ward circulation of dye liquor according to technological requirement.

Adopting pressurized form and air cushion form (or pressurized Iby using auxiliary feed pump).

Nick sealing and self-sealing by internal pressure.

High automation, computer temperature control, full-automatic control of dyeing process including water in, water out, temperature rise, thermal insulation, temperature drop, washing, etc.

Timing and quantitative regulation of yarn feed and stream irput bypro portional control valve; Proportion control valve design variesdepending on our customers' choice.


Main pump motor drive for frequency inverter control allows limitless flowcontrol to save energy consumption on starting and load-reelieving operation Pressure material: Durable SUS321 (or 316L);Our product desigrvaries

depending on our customers' choice. Our products are made of corrosion resistant steel grades and have a long service life.

Safety interlock for cover using pressure controller andtemperature controller to control locking pin on the cylinder opening. The coover can be opened only when pressure is "0" and temperature below 80°C;

High temperature liquor discharge system with no instantaneous negative pressure produced providing safer liquor drainage;

The outdoors-installed heat exchanger is designed for adirectconnection with the main pump, thus giving a compact aarrangement.

This design allows higher heat efficiency and lower energy consumption,and low bath ratio, short piping.

Free choice of components and high-speed screen franme unloading allows lower labor intensity.

Main technical parameters

Type

Gauze layer

Pony roll gauze quantity

Biggest load capacity

Pump output

TD 241E-43

3

12

12

5.5

TD 241E-43

6

24

24

5.5

TD 241E-53

36

36

7.5

TD 241E-70

54

54

11

TD 241E-85

108

108

15

TD 241E-90

114

114

15

TD 241E-105

144

144

18.5

TD 241E-120

216

216

22

TD 241E-145

324

324

30

TD 241E-166

414

414

37

TD 241E-186

540

540

45

TD 241E-43

8

32

32

7.5

TD 241E-53

48

48

11

TD 241E-70

9

81

81

15

TD 241E-85

162

162

18.5

TD 241E-90

171

171

22

TD 241E-105

216

216

22

TD 241E-120

324

324

30

TD 241E-145

486

486

45

TD 241E-166

621

621

55

TD 241E-186

810

810

75

TD 241E-200

972

972

90

TD 241E-90

12

228

228

30

TD 241E-105

288

288

37

TD 241E-120

432

432

45

TD 241E-145

648

648

55

TD 241E-166

828

828

90

TD 241E-186

1080

1080

110

TD 241E-200

1296

1296

132

TD 241E-226

1608

1608

160
