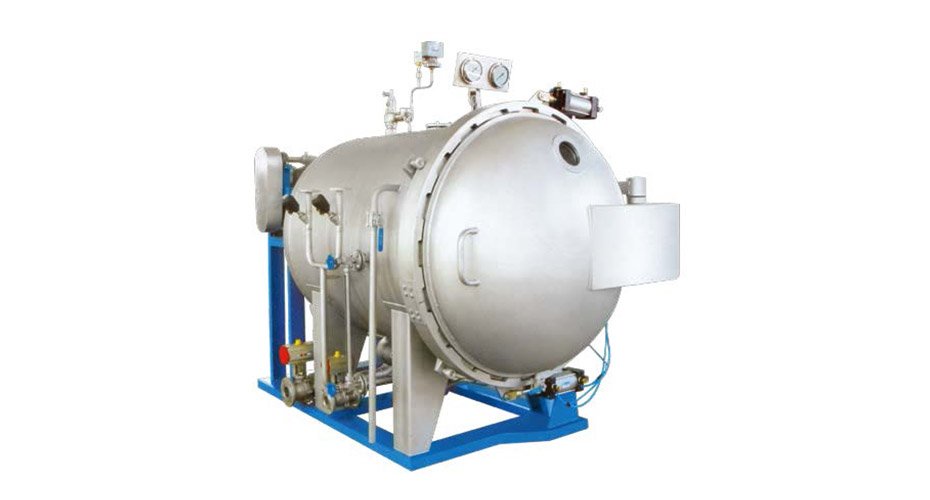

High Temperature High Pressure dyeing Machine TDGS
main feature :
The High Temperature High Pressure dyeing Machine TDGS is constructed with stainless steel for durability. It features efficient nozzle pipes, yarn poles, and a color bucket with stirring, heating, circulation, cleaning, and feeding capabilities.
Product details
Bleaching, scouring, dyeing, rinsing and post-treatment ofhank,thread and tape, embroidery thread of various natural and synthetic fibers as well as pure silk.High erostion proof stainless steel materials made for tthe machine body.
Durable nozzel pipe and hold set.
Yarn pole transmittion set with high efficiency.
Pumping of great flowage and low height of lift.
Stirring, heating,circumflence,clansing,and feeding set in 1the color bucket.
Outlay heat exchangeer of high efficiency.
Water level Indicator.
Tools assist to entry and outlet of yarn and cleaning nozzel pipbes.
Flow adjust set.
Full auto or semi-auto PC control system
Frequency conversion control of master pump motor
Rated material feeding system
The 2nd water, and the 2nd disdischarge.
Full auo control of color bucket
Max work temperature: 140°C
Max work pressure: ≤0.4Mpa
Temperature rising speeding about 5°C/min With steam pressure 6kg/m
Temperature Lowering speed about 4 C/min With cooling water pressure 3kg/cm2
Main technical parameters
Model | Yarn Stick | Motor power (KW) | Effective | Maxximum Working Pressure MPa | Maxximum Application Temperature | Steam Consumption KG/HR | Consumption of Cooling Water 20 20°C/M3/HR |
TDGS-2 | 2 | 3 | 250 | 0.4 | 140 | 60 | 2 |
TDGS-4 | 4 | 5.5 | 700 | 0.4 | 140 | 120 | 4 |
TDGS-6 | 6 | 7.5 | 800 | 0.4 | 140 | 160 | 5 |
TDGS-8 | 8 | 11 | 1000 | 0.4 | 140 | 200 | 7 |
FAQ
Q1: What materials can the TDGS dyeing machine process?
A1: The TDGS is intended for hank yarn, thread, narrow tape, embroidery thread and pure silk made with natural or synthetic fibres. The process plan should be checked against fibre type, yarn count, hank density and dye chemistry.
Q2: Which TDGS models are listed on the product page?
A2: The published range includes TDGS-2, TDGS-4, TDGS-6 and TDGS-8 with 2 to 8 yarn rods. Effective vessel volume ranges between 250 and 1000 litres. Actual batch weight depends on the material form, hank loop length and loading density.
Q3: What data should a buyer provide before quotation?
A3: Please provide fibre type, yarn count, hank loop length, batch weight, thread application, tape width and thickness, process temperature and daily output. Local voltage, steam pressure, cooling-water temperature, water hardness and drainage conditions should also be provided.
Product Advantages
1.Hank Yarn, Thread and Tape Processing
The TDGS can carry out bleaching, scouring, dyeing, rinsing and after-treatment for hank yarn, thread, narrow tape, embroidery thread and pure silk made with natural or synthetic fibres.
2.Large-Flow, Low-Lift Pump
The circulation pump provides high liquor volume at a lower lifting head. Flow settings can be matched with yarn count, hank density and the handling needs of delicate thread or silk.
3.Spray Pipes and Yarn Rod Drive
Spray pipes distribute dye liquor around the loaded material. The yarn-rod drive and support arrangement manage the batch during processing, while loading and pipe-cleaning tools assist daily operation.
4.Integrated Dye Preparation Tank
The dye tank combines stirring, heating, circulation, cleaning and chemical feeding functions. A water-level indicator supports bath preparation and operator checks.
5.Multiple Vessel Sizes
TDGS-2, TDGS-4, TDGS-6 and TDGS-8 cover 2 to 8 yarn rods and effective vessel volumes of 250 to 1000 litres. The stated operating limits are 140°C and 0.4 MPa.
