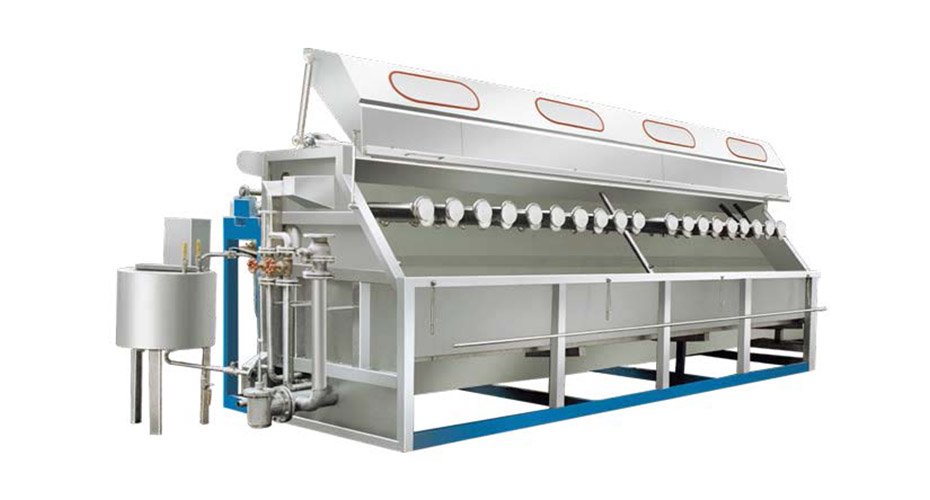

Jet-Type Skein Dyeing Machine TDYC
main feature :
The Jet-Type Skein Dyeing Machine TDYC features a stainless steel body of high quality to resist corrosion. The adjustment mechanism is made from stainless steel of exceptional quality to withstand corrosion. Additionally, the machine includes a stainless steel pump with excellent performance, manufactured with precision by our engineers.
Product details
TDYC Jet-type Skein Dyeing Machine is most suitable fordyeing of single filament, single-strand fine yarn, man-made filament, silkand mercerized cotton yarn, etc. The novel barrage-spilling type yarn jet dyeing tubes can ensure evenness of dyeing without raising defects and yarn seizure or knot forming as well as easily rewinding of dyed yarn. The water pump specially designed with low head andgreat flow and the flow regulator specially equipped allow regulationof quantity of water at will according to quantity of yarn beingdyed and its count.The highest work temperature: 98°C
The rising temperature speed: about 5°C/minute
The falling temperature speed: about 4°C/minute
The body of machine introduces stainless steel with a good qualityto resi sterosion.
The adjutage adopts the be made from stainless steel with agreat quality to resist erosion.
It is a mingling water stainless steel pump with great perkormance,It has sigillating fabrication by engine also.
The barrel of adding material has the churning, heating, circuulating, and cleaning installations.
The reliable PLC control instrument of procedure.
The display of waten line.
The implements are convenient to add yams, to take out yarns,t o clean the jet pipe.
The visible window have beautiful appearances and security.
Main technical parameters
Model | Carrying amount kg | General Power kw | Appearance size | Wight | ||
L(mm) | W(mm) | H(mm) | ||||
TDYC½ | 3 | 1.1 | 1310 | 1950 | 2020 | 820 |
TDYC½×2 | 7 | 1.1 | 1540 | 1950 | 2020 | 1200 |
TDYC-2 | 14 | 1.5 | 1570 | 2500 | 2020 | 1400 |
TDYC-4 | 28 | 3 | 2130 | 2500 | 2020 | 1800 |
TDYC-6 | 42 | 4 | 2580 | 2550 | 2020 | 2400 |
TDYC-10 | 70 | 5.5 | 3740 | 2550 | 2020 | 3000 |
TDYC-20 | 140 | 11 | 6740 | 2600 | 2120 | 4500 |
TDYC-30 | 210 | 15 | 9700 | 2750 | 2220 | 5600 |
TDYC-40 | 280 | 22 | 12850 | 2750 | 2220 | 6800 |
TDYC-60 | 420 | 37 | 18810 | 2960 | 2320 | 11340 |
TDYC-80 | 560 | 45 | 24900 | 2960 | 2320 | 13800 |
Q1: Which yarn materials can the TDYC jet dyeing machine process?
A1: The TDYC is intended for single filament, single-strand fine yarn, man-made filament, silk and mercerized cotton yarn in skein form. Yarn count, skein circumference and weight per skein should be confirmed before the machine model is prepared.
Q2: How does the TDYC jet system help with yarn handling?
A2: Overflow jet tubes guide dye liquor around the loosened skeins. Together with the low-head, high-flow pump and flow regulator, this arrangement helps limit yarn seizure, knot formation and rewinding difficulty.
Q3: What capacity and working temperature are available?
A3: The published model range covers batch capacities of 3 to 560 kg, and the listed working temperature is up to 98°C. The required model should be confirmed using the yarn material, yarn count, skein size, batch weight, process recipe and mill utility conditions.
Product Advantages
1.Overflow Jet Tube Arrangement
The overflow jet tubes guide dye liquor around the skein load. This arrangement is intended to help limit yarn seizure and knot formation while supporting easier rewinding after dyeing.
2.Low-Head, High-Flow Circulation Pump
A stainless steel circulation pump supplies a large liquor flow at a low pump head. This supports dye liquor movement through fine yarn, filament and silk skeins.
3.Water Flow Matched to Yarn Data
The flow regulator allows the water quantity to be matched with yarn load and yarn count. This helps the mill prepare circulation conditions for different batches.
4.Batch Capacities of 3 to 560 kg
The published TDYC range covers small trial batches and larger production batches. The machine model can be matched with the planned batch weight and available workshop length.
5.PLC Control and Practical Cleaning
PLC process control, water-level display and the chemical addition tank support daily process management. The machine arrangement also provides access for yarn loading, unloading and jet-pipe cleaning.
