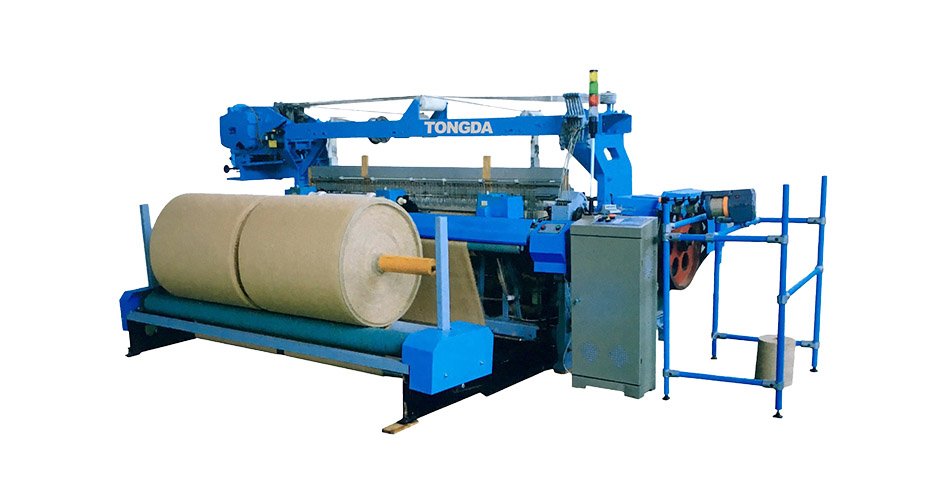

Jute Fabric Rapier Loom TD789
main feature :
The Jute Fabric Rapier Loom TD789 features a flexible dobby arrangement, higher production, smoother and stronger selvedge tuck in system, reducing yarn waste and dust pollution, and easier operation.
Product details
TD789 Model TD789 Rapier Loom is improved on the base of Model 1515 shuttle loom. It has 6 colors weft select color per weft and automatic finding broken weft. It's speed increases very much than the shuttle loom, that the evidently improve unit area output and fabric quanlity. Also its suitability is wide.
Main technical parameters
Model | TD788 |
Reed width (cm) | 180(74") 200(78") 230(90") 250(98") |
280(11 0") 330(130") | |
Rotation speed(R.P.M) | 150-210 |
Weft selection Yarn count | 1-4 Colors |
Dia.of warp beam(mm) | jute yarn 7-60Ne ,Chemical fabric 100-650D |
Dia.of rolling-up(mm) | 0 - 600 0 - 400 |
Number of heddle frame | 8-12 |
Insertion rate(m/min) | 300-400 |
Electrical control | P.L.C |
Motor power(KW) | 1.5-1.8KW |
Weight(kg) | 1700-2200 |
Overall size(mm) | 5400x1 827x2120(8250px/1 30") |
Q1: What jute fabrics can the TD789 produce?
A1: The TD789 can make A-twill sacking, B-twill sacking and hessian plain-weave fabric. Published information also refers to 23-inch and 27-inch sack-cloth products. The final fabric programme depends on yarn count, width, weight, density and dobby arrangement.
Q2: Does the TD789 need an air compressor?
A2: No air compressor is required for rapier weft transfer. The factory still needs the correct electrical supply and should confirm any auxiliary utility needs according to the final machine arrangement.
Q3: What details are needed for a TD789 machine proposal?
A3: Please share the sack type, finished sack width, fabric width, jute yarn count system, fabric weight, warp density, weft density, A-twill, B-twill or hessian weave, selvedge type and planned daily output. Please also confirm the voltage, frequency, workshop dimensions and spare-parts needs.
Product Advantages
1.Multiple Jute Fabric Constructions
The TD789 can make A-twill, B-twill and hessian plain-weave fabric on one loom platform. This allows a jute mill to plan several sack-cloth products with one machine type.
2.23 and 27 Inch Sacking Fabric
Published TD789 information refers to 23-inch and 27-inch jute sacking products. The final loom plan should match the required fabric width, sack size, cutting allowance and seam allowance.
3.Flexible Dobby Arrangement
The flexible dobby arrangement supports different jute fabric structures. The dobby type, number of heald frames and weave cycle should be confirmed according to the sacking or hessian specification.
4.Controlled Tuck-In Selvedge
The tuck-in system forms the fabric edge without a conventional shuttle-type selvedge arrangement. It helps manage edge appearance and limits excess yarn at the fabric sides.
5.Rapier Weft Transfer Without Compressed Air
Rapier weft transfer does not require an air compressor. This simplifies factory utility planning and removes the compressed-air requirement associated with air-jet weaving.
