TD288 Digital High Speed Double Needle Bar Raschel Machine
main feature :
TONGDA medium pile warp knitting machines deliver stable performance and uniform pile formation for producing medium pile warp knitted fabrics.
Product details
CHARACTERISTIC
All oil-immersed cam mechanism, to reduce wear and the cam is durable. Opt to use electronic yarn let-off, electronic take-up, so that the yarn let-off is more stable.
APPLICATION
After cutting and finishing the fabric can be formed medium plush which height is 5-25mm. Its plush is fullness, soft, wool yarn into a circle and not easily detached from the base fabric. The machine is widely used in plush toys, furcoat, plush carpets, blankets and other products, such as flano, coral velvet, Kirin cashmere, circle fleece, PV velvet, simulation fur.

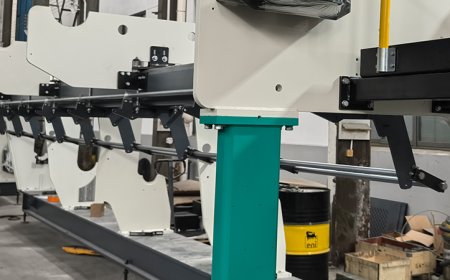

Easy Operation & Maintenance
The swingable design of the shaping plate bed facilitates the replacement of needle tongues, simplifying the operation and maintenance process and improving work efficiency.

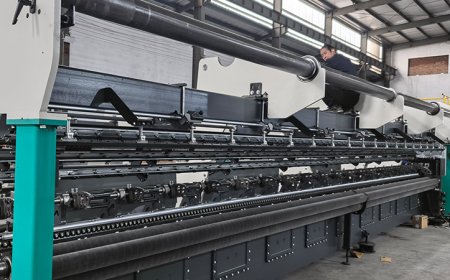

Strong Stability
Due to the fixed needle plate, the fabric is held tightly and stably, which helps maintain the long-term stable operation of the machine and reduces the failure rate.
High Degree of Automation
Combined with electronic weft insertion and laser yarn break automatic stop system, the machine boasts a higher level of automation, ensuring safety and production continuity during high-speed operation.
Main technical parameters
Needle type | Latch needle |
Gauge | E16E18 E22 |
Working width | 90"100"110"138" |
Guide Bar No. | 5 |
Double pile height | 8-50mm |
Main drive | Oil-immersed cam |
Max speed | 850 rpm |
Pattern drive | N-pattern drive,chain link or pattern disk(Optional: Electronic Control)
|
Yarn let-off device | Two roller roller active let-off(optional:electronic let-off)
|
Fabric take-up | Change gear traction box(optional:electronic traction)
|
Batching device | Independent batching device |
OMain motor power | 5kw(90"、100"、110")7.5kw(138") |
Q1: What fabrics can the TD288 warp knitting machine make?
A1: The TD288 is intended for medium-pile warp-knitted fabrics. Applications include flannel-style plush, coral fleece, faux fur, blanket fabric, plush carpet and material used for plush toys.
Q2: What does the 8 to 50 mm double-pile height mean?
A2: The published data lists 8 to 50 mm as the double-pile height between the two knitted ground layers. It is not the final one-side pile height. The finished pile is affected by fabric splitting, brushing, shearing and heat setting.
Q3: What fabric data is needed for a TD288 machine proposal?
A3: Please provide the fabric name, fabric sample or photo, usable width, gauge, finished pile height, ground yarn, pile yarn, fabric weight, stitch density, planned working hours, voltage and frequency. Please also state whether splitting, brushing, shearing and heat-setting equipment is available.
1.Medium-Pile Fabric Range
The published double-pile setting covers 8 to 50 mm. This range can be used for several plush constructions according to the yarn plan and finishing method.
2.Several Width and Gauge Options
Working widths include 90, 100, 110 and 138 inches. E16, E18 and E22 gauges are available for different yarn sizes and fabric structures.
3.Five Guide Bar Arrangement
The five guide bars provide the yarn paths needed for the ground layers and pile connection. The lapping plan is prepared according to the required fabric.
4.Pattern Formation Options
The TD288 can use an N-pattern drive, chain links or pattern discs. Electronic pattern control can also be included in the machine configuration.
5.Oil-Immersed Cam Main Drive
The main knitting motion uses an oil-immersed cam drive. The listed machine speed is 850 rpm, while the actual operating value depends on yarn and fabric data.
