Application & Features

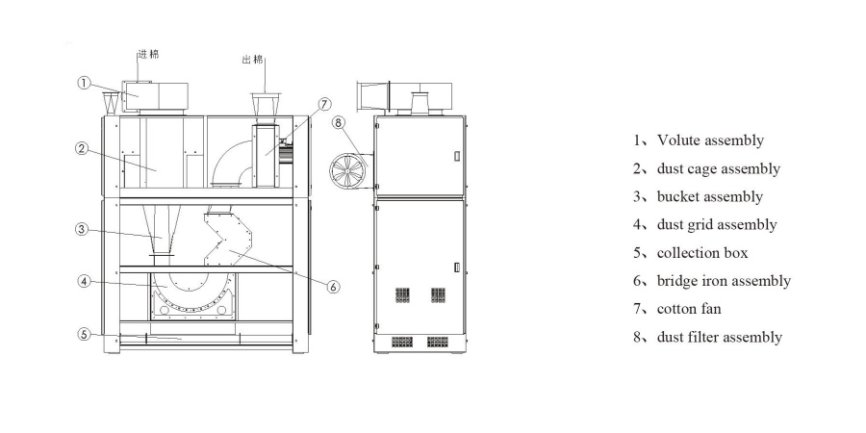

1. Before the cotton flow enters the multi-function air flow tower, it enters the dust cage from the volute first, decompresses the high pressure cotton flow output by the cotton grab machine, and removes short velvet and fine dust, and the cotton flow falls freely into the cotton bucket.

2. The cotton flow inhales the dust grid parts, using the centrifugal effect of the cotton flow through the 180-degree curved pipe to remove impurities larger than the fiber, while reducing the loss of spinnable fibers.

3. Through the cotton flow impact dust rod, further remove the heavy impurities, short velvet, fine dust in the cotton flow, impurities from the dust bar gap into the collection box, and make the cotton flow to get secondary decompression regulation.

4. After the cotton flow is sucked into the iron parts of the bridge, if there are iron chips and iron blocks in the cotton flow, it will be sucked out. Under the action of the cotton fan, the cotton flow will be input into the subsequent machine.

5. Set up the air conditioning and exhaust air adjustment device, can be flexibly adjusted according to the need to ensure the safety, efficient and smooth operation of the cleaning and combing system, improve the quality of the cleaning and combing yarn, reduce the input and operating costs.
