Working mode | External warp for movable frame loom |
Power mode | Electric, 100W×36V×5Ax18000 rpm, DC motor, manual, small amount of trial knot |
Warp knotting range | 2S-200S, 20D-3000D |
Speed regulation mode | Rotary stepless speed regulation |
Working range | 1m-4m and other different specifications |
FAQ

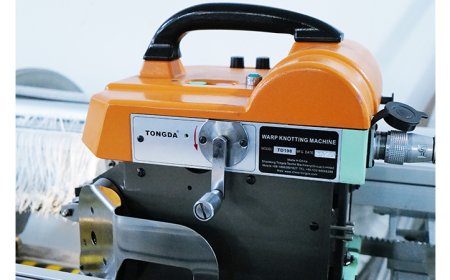

Q1: What does twist and no-twist mean on the TD198 warp knotter?
A1: It refers to the structure of the old and new warp yarns. The machine can be configured for twisted or untwisted yarn during warp tying. It is a warp preparation machine and does not add twist to the yarn.
Q2: What yarn range and working width does this TD198 model cover?
A2: Published data covers 2S–200S spun yarn, 20D–3000D filament yarn and working widths of 1–4 m. The listed peak rate is 600 knots per minute. Actual running rate depends on yarn material, fineness, twist, sizing and warp density.
Q3: What information is needed for a machine proposal?
A3: Please provide the loom type, working width, old-warp yarn, new-warp yarn, count or denier, ply, twist direction, twist level, sizing condition, total warp ends and warp density. Middle East buyers should also share local mains voltage, frequency and the needed 36 V DC supply arrangement.
Product Advantages
1.Twisted and Untwisted Yarn Capability
The TD198 can be set for warp sheets containing twisted or untwisted yarn. This capability supports beam changes when the old warp and new warp have different yarn structures.
2.Simple Knotting Mode Change
The yarn mode can be changed through a straightforward machine setting. This helps operators prepare the knotter when the yarn construction changes between weaving plans.
3.Broad Yarn Fineness Coverage
Published data covers 2S–200S spun yarn and 20D–3000D filament yarn. Real yarn samples should be tested when the material has unusual twist, coating, sizing or elasticity.
4.Movable Frame for 1–4 m Warp Sheets
The external-warp working mode uses a movable frame for warp widths of 1–4 m. Frame size should match the loom reed space, warp sheet width and mill layout.
5.Rotary Stepless Rate Control
The operator can set the knotting rate in line with yarn fineness, twist and warp density. The listed peak rate is 600 knots per minute under the proper yarn and setup conditions.
