PP&PE leno loom
High-Performance-Weaving-machine
Have a wide range of uses.
High efficiency,low material consumption and simple operation.
High-performance design.
Onion Bag Leno Fabric Weaving Machine TDP-501
main feature :
Onion Bag Leno Fabric Weaving Machine TDP-501 boasts a sturdy frame and loom body, equipped with an electric feeder and automatic weft density adjustment. This ensures easier production and maintenance, making it more efficient.
Product details
Economic configurations use mechanical feeder and weft density change by gear.
Strong frame and loom body,electronic feeder and automatic weft density change ensure smooth running,high efficiency and better fabric quality. This design cuts the production cost and makes the operation and maintenance much easier.
TDP-501 is a new type water jet loom,which could be uesd to produce leno of PP or PE.The final products can be used into packaging of onion, garlic, fruits etc.
Main technical parameters
1、Main motor power | 150CM Reed~ 2.2 KW |
2、 Speed | 150CM Reed/350~450 rpm |
3、Fabric Range | Fabric weight：10～70gsm (According the the yarn quality) |
Weft density: 1~3/inch Warp density: 6/inch | |
Max weft yarn width: 4mm Min weft yarn thickness: 0.05mm | |
Weft feeding is electronic ROJ feeder from Italy | |
4、Take up | A、 Out of the loom |
B、 Maximum take up diameter: 1500 mm | |
5、Output (in 24 hours based on 6 mesh/according to customer yarn) | 3000-3600M |
6、Water Consumption (in 24 hours/ Recyclable) | 5~7m³ |

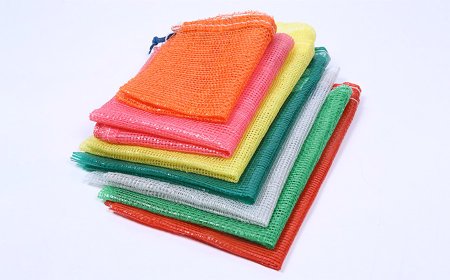

Q1: What bags can be made using TDP-501 leno fabric?
A1: The woven PP or PE leno fabric can be used for onion, garlic, potato, citrus and other fruit or vegetable bags. Bag size, carrying load and ventilation depend on the fabric weight, mesh structure, tape yarn and later cutting and sewing process.
Q2: What are the main working specifications of the TDP-501?
A2: The standard published data lists a 150 cm reed width, 2.2 kW main motor, 350 to 450 rpm speed and a fabric weight range of 10 to 70 gsm. Output is 3000 to 3600 m per 24 hours under the stated 6-mesh condition.
Q3: What data is needed before preparing a TDP-501 machine plan?
A3: Please provide the packed product, required bag size, carrying weight, PP or PE tape data, fabric weight, mesh count, color, finished roll size and daily output. Please also state whether cutting, sewing, drawstring or label equipment is needed.
1.Leno Fabric for Produce Bags
The TDP-501 weaves PP or PE leno fabric used for onion, garlic, potato, citrus and other produce bags. The open leno structure allows air movement around packed agricultural products.
2.Lightweight Fabric Range
The stated fabric weight range is 10 to 70 gsm. Published weaving data includes a weft density of 1 to 3 picks per inch and a warp density of 6 ends per inch.
3.Defined Tape Yarn Range
The loom can handle weft tape up to 4 mm wide, with a stated minimum tape thickness of 0.05 mm. Final yarn data should match the required bag weight and carrying load.

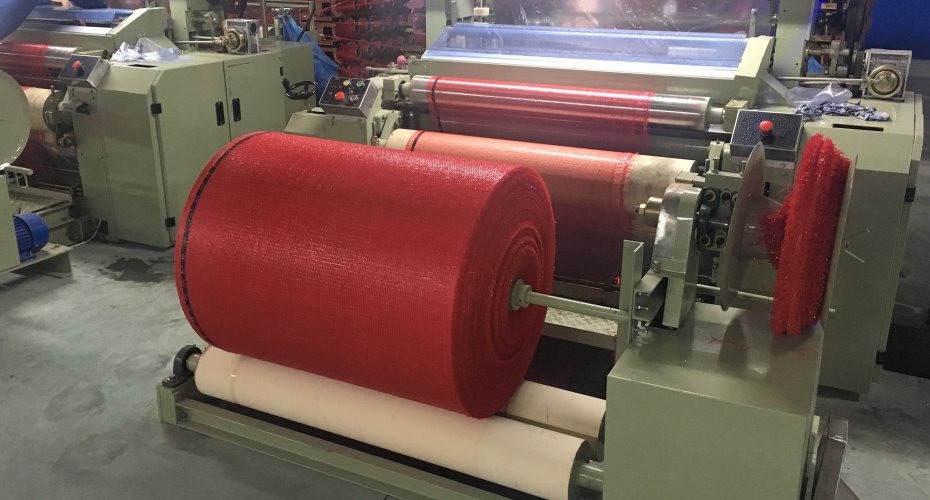

4.Large Fabric Roll Collection
Fabric take-up is placed outside the loom, with a maximum roll diameter of 1500 mm. This arrangement supports longer production runs before roll replacement.
5.Documented Output and Water Use
Published output is 3000 to 3600 m per 24 hours under a 6-mesh fabric condition and suitable yarn data. Recyclable process water use is listed as 5 to 7 m³ per 24 hours.
