Blowroom
Complete clean and open cotton machines
Complete clean and open cotton machines
Excellent Machines
Boost your spinning efficiency
FA115 Opener
main feature :
FA115 opener is designed for efficient fiber opening and separation, ensuring optimal preparation for subsequent textile processing stages.
Product details
Application
The machine is used for further opening and cleaning cotton of various grades or man-made fibre below 76mm. The remarkable opening and cleaning effect could be obtained. FA115, having excellent opening effect, can be used for cotton or man-made fibre.
Main Features

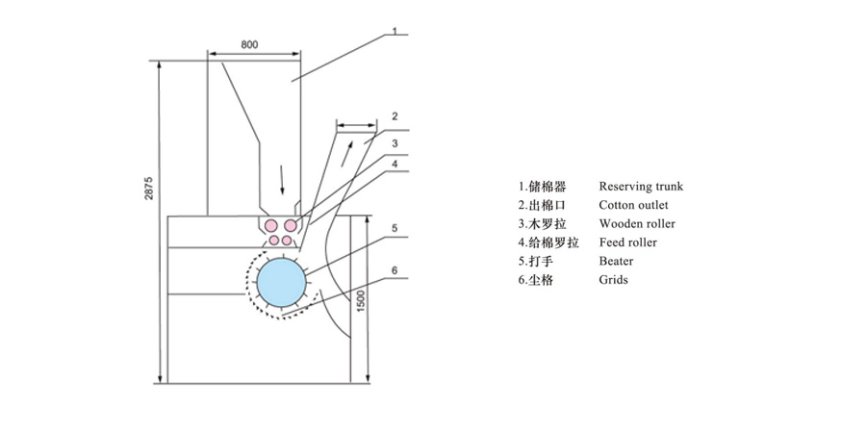

It is installed with an adjusting plate and infrared photocell device in the reserving trunk to automatically control the height of cotton.The special grid bars device is nice and convenient. An automatic sucking droppings pipe can be equipped in the front of the machine according to user's demand.
Main technical parameters
Model | FA115 |
Output(kg/h) | 800 |
Machine Width(mm) | 1200 |
Dia.of beater (mm) | 600 |
Type of beater | Gill pin |
peed of beater | 480、540、600 |
Dia.of feed roller(mm) | 76 |
Grid type | Adjustable triangular grid bar |
Power(kw) | 3.55 |
Overall dimensions(L×W×H.mm) | 1776X1580X2875 |
Net weight(kg) | About 1800 |
