| Reed Width | 360CM | 420CM | 460CM | 480CM |
| Effective Width | 350CM | 410CM | 450CM | 470CM |
| Weft Insertion | 1Nozzle,1 Pump |
| Weft Insertion | Plunger Type Positive Cam System |
| Weft Insertion | Ring Nozzle Stabilizer system |
| Measuring and weft storage | Electronic feeder |
| Weft density change | Electronic pick change |
| Motor Power | 3.7KW | 4.5KW | 4.5KW | 4.5KW |
| Auxiliary Power | 0.7 kw -1.5 kw |
| Speed | 300-400rpm |
| Shedding | Crank Shedding at bottom |
| Let-off | Electronic let off |
| Take-up | Electronic Take-up Motion |
| Selvage | Leno selvage or tuck in |
| Fabric Yarn Range | Yamn Fabric: 25-180gsm (Up to the yarn quality) |
| Fabric Yarn Range | Max weft yarn width: 6.5mm
Min weft yarn thickness: 0.015mm |
| Fabric Yarn Range | Weavina dense: 6-16/Inch |
| Reed Width | A (mm) | A2 (mm) | B1(mm) |
| 3600mm | 4330mm | 4930mm | 245 |
| 4200mm | 4930mm | 5530mm | 245 |
| 4600mm | 5330mm | 5930mm | 245 |
| 4800mm | 5530mm | 6130mm | 245 |
| The size of C is according to the warp plate diameter and quantity required |
FAQ
Q1: What products can the TD908XL weaving loom make?

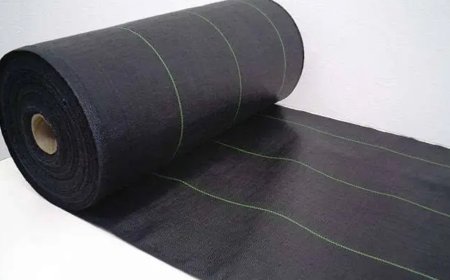

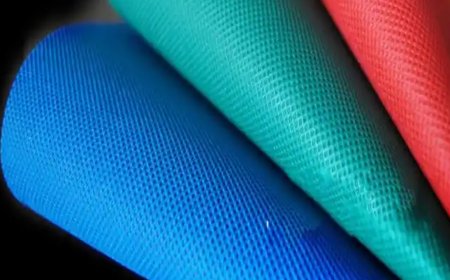

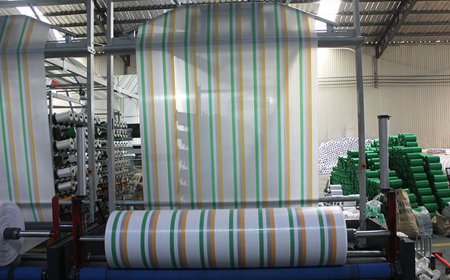

A1: The TD908XL can make PP and PE woven materials such as tarpaulin base cloth, greenhouse shade fabric, ground cover fabric, geotextile and plastic packaging fabric. Final use depends on the tape yarn, fabric weight, weave density and later finishing process.
Q2: What working widths and fabric weights are available?
A2: Reed widths are 360, 420, 460 and 480 cm, with effective fabric widths of 350, 410, 450 and 470 cm. Published fabric weight data covers 25 to 180 gsm, and the stated density range is 6 to 16 picks per inch.
Q3: What data is needed before preparing a TD908XL machine plan?
A3: Please provide the finished product, PP or PE material, tape width, tape thickness, fabric weight, warp and weft density, finished width, edge type, roll diameter and planned daily output. Local voltage, frequency, water conditions and workshop dimensions should also be provided.
Product Advantages
1.Wide Fabric Width Options
The TD908XL has reed widths of 360, 420, 460 and 480 cm. The related effective fabric widths are 350, 410, 450 and 470 cm, supporting wide tarpaulin base cloth and shade fabric production.
2.PP and PE Tape Yarn Compatibility
The loom works with PP and PE flat yarn, split film yarn and related plastic yarn types. Published fabric data covers 25 to 180 gsm, with a maximum weft tape width of 6.5 mm and a minimum tape thickness of 0.015 mm.
3.Electronic Yarn and Density Control
Electronic warp let-off, electronic fabric take-up and an electronic weft feeder coordinate yarn delivery during weaving. Electronic pick adjustment helps manage fabric density within the stated range of 6 to 16 picks per inch.
4.Box-Type Frame and Crank Shedding
The reinforced box-type machine body supports wide-width weaving. Bottom crank shedding and operating speeds of 300 to 400 rpm are used for the planned plastic woven fabric structure.
5.Selvage and Product Options
Leno selvage or tuck-in edge arrangements are available. The loom can make tarpaulin base cloth, woven shade fabric, ground cover fabric, geotextile and other PP or PE woven materials.
