| Reed Width | 230 CM | 260CM | 280CM | 300CM | 420CM |
| Effective Width | 220 CM | 250CM | 270CM | 290CM | 410CM |
| Weft nsertion | 1 Nozzle,1 Pump |
| Weft nsertion | Plunger Type Positive Cam System |
| Weft nsertion | Ring Nozzle Stabilizer system |
| Measuring and weft storage | Mechanicalstorage drum pooling (Economic) |
| Measuring and weft storage | Electronic Rotary Drum Pooling |
| Weft densily change | by Gear |
| Weft densily change | Inverter Automatic Change |
| Motor Power | 2.8KW | 3KW | 3.4KW | 3.7KW | 4.5KW |
| Auxiliary Power | 0.7 kw-1.5 kw |
|
|
|
|
| Speed | 450-750 RPM | 400-600 RPM | 350-550 RPM | 300-450 RPM | 260-350 RPM |
| Shedding | Crank Shedding at bottom (Economic) | Crank Shedding at boltom |
| Shedding | Positive Cam Shedding at top | Crank Shedding at boltom |
| Let-off | Mechanical Let-Of Motion |
| Take-up | Electronic Take-up Motion |
| Max Winding Diameter:1500mm |
| Fabric Yarn Range | Yamn Fabric: 25-180gsm (Up to the yarn quality) |
| Fabric Yarn Range | Max weft yarn width: 6.5mm
Min weft yarn thickness: 0.015mm |
| Fabric Yarn Range | Weaving dense: 6-16/Inch |
| Reed Width | A (mm) | A1 (mm) | A2 (mm) | B1 (mm) | B2 (mm) |
| 2300 mm | 3030 | 3325 | 3630 | 245 | 315 |
| 2600 mm | 3330 | 3625 | 3930 | 245 | 315 |
| 2800 mm | 3530 | 3825 | 4130 | 245 | 315 |
| 3000 mm | 3730 | 4025 | 4330 | 245 | X |
| 4200 mm | 4930 | 5225 | 5530 | 245 | X |
The size of C is according to the warp plate diameter and quantity required |
FAQ

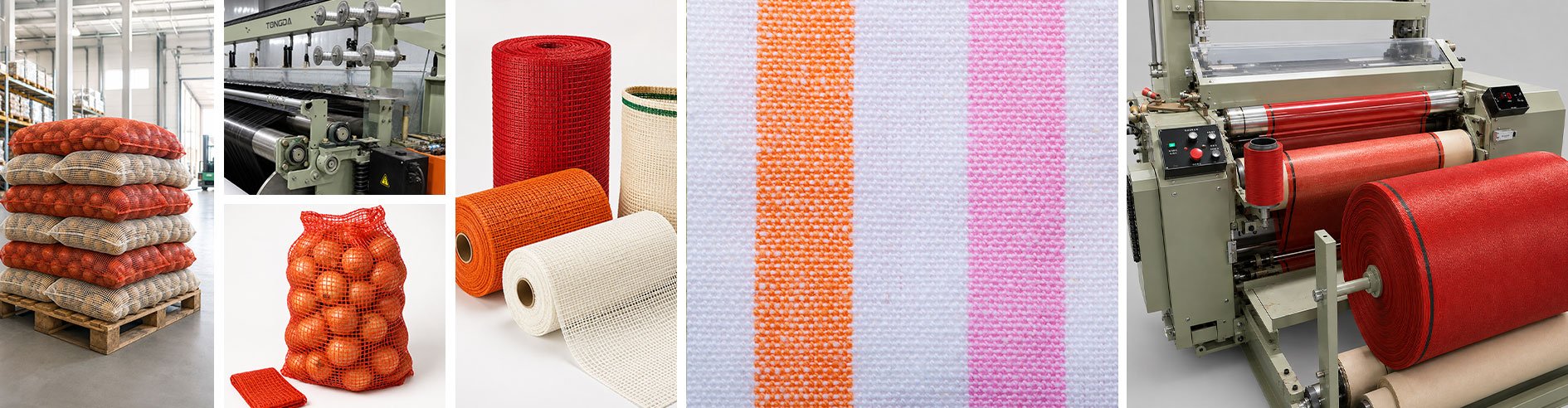

Q1: What products can the TD908 fabric weaving machine make?
A1: The TD908 can make PP and PE flat woven materials such as agricultural ground cover, weed control cloth, geotextile base fabric, tarpaulin base cloth and plastic packaging fabric. Final suitability depends on tape yarn size, fabric density, weight and finishing needs.
Q2: What are the main specifications of the TD908?
A2: Published TD908 data lists a reed width of 230 cm, an operating speed of 450 to 750 rpm, mechanical warp let-off, inverter-based weft density adjustment and a single-pump, single-nozzle arrangement.
Q3: What data is needed before preparing a TD908 machine plan?
A3: Please provide the finished product, PP or PE material, tape yarn width, tape thickness, fabric weight, warp density, weft density, finished width, edge type, roll diameter and planned daily output. Local voltage, frequency, water conditions and workshop dimensions should also be provided.
Product Advantages
1.Standard 230 cm Reed Width
The TD908 uses a 230 cm reed arrangement for flat PP and PE woven fabric. The final working width should be confirmed according to the fabric edge and weaving plan.
2.Operating Speed of 450 to 750 rpm
The published machine speed is 450 to 750 rpm. Actual operating speed depends on tape yarn condition, fabric density, product weight and water-jet settings.
3.Mechanical Warp Let-Off
Mechanical warp let-off manages warp yarn delivery during weaving. The system is suited to regular PP and PE fabric programs that use a confirmed yarn and density range.
4.Inverter-Based Density Adjustment
The machine uses inverter control to manage weft density. This allows the weaving parameters to match agricultural ground cover, geotextile base cloth and plastic packaging fabric.
5.Single-Pump and Single-Nozzle Arrangement
The TD908 uses one pump and one nozzle for weft yarn delivery. This arrangement works with the 230 cm machine format and the planned PP or PE tape yarn specification.
