Reciprocating Bale Plucker FA017

main feature :

The reciprocating bale plucker FA017 series as the first process of blowroom &card is suitable to each kind of cotton and chemical, viscosefibre length less than 76mm. The pluck arm, mounted with twobeaters can lift and revolve 180 degrees. The pluck arm movedto and back to pluck fibre above bale. The fibre plucked are sucked into the front feeder by air current throught transport product for further process

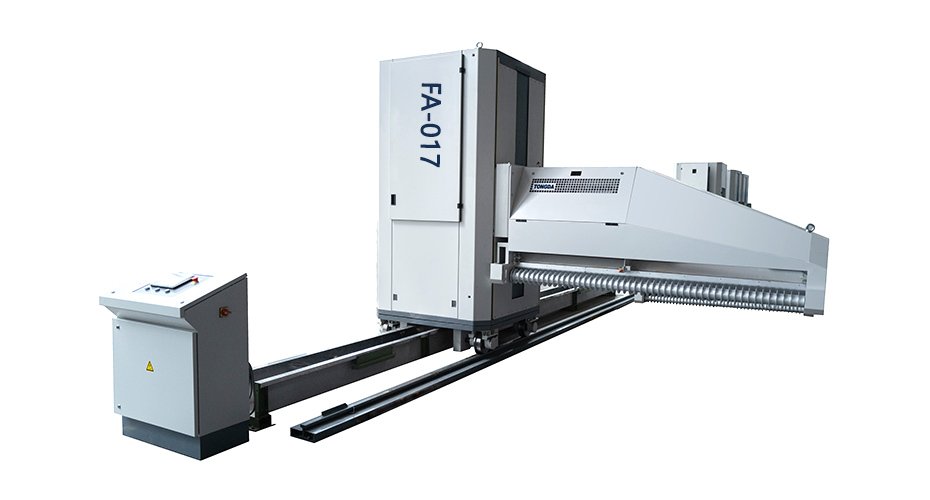

FA017 Reciprocating Bale Plucker
FA017 Reciprocating Bale Plucker
17
17-1
17-3
17-2

Product details

FA017 series bale plucker as the first process of blowroom &  card is suitable to each kind of cotton and chemical, viscose  fibre length less than 76mm. The pluck arm, mounted with two  beaters can lift and revolve 180 degrees. The pluck arm moved  to and back to pluck fibre above bale. The fibre plucked are  sucked into the front feeder by air current throught transport  duct for further process.

For two plucker beaters, no matter plucker carrier moves either forward or backward, one plucker beater always plucks in clockwise, but another plucks in anticlockwise. Beater hanging device driven by motor rises up anticlockwise plucking beater.

The height can be adjusted according to requirements in order to prevent beater more plucking in depth and keep the load of two beaters basic equal in working to reduce abrasion of spare parts such as belt and bearings etc. Dual saw-blade beater plucks flock evenly up and down with high and small dispersion rate in order to achieve plucking block finely, little and evenly from beginning in blowing-carding line technology.

Intermittent vertical stroke of detacher can be adjuster steplessly within the range of 0.1~19.9mm/times. The travel speed of plucker carrier is adjusted by frequency inverter at 5~15m/min.


Main technical parameters

Milling depth (mm)

0. T20 (adjustable)

Basic length of machine (mm)

20400

Maximum length 52000

Maximum bale height (mm)

1600

Pluck roller

Control by pulley or inverter

Total power (kw)

7.5

Net weight (kg)

7000


Working width (mm)

2300

1700

Production (kg/h)

1500

1000

Effective plucking width (mm)

2300

1700

A (mm)

6362

5162
