Ring spinning machine FA1569

main feature :

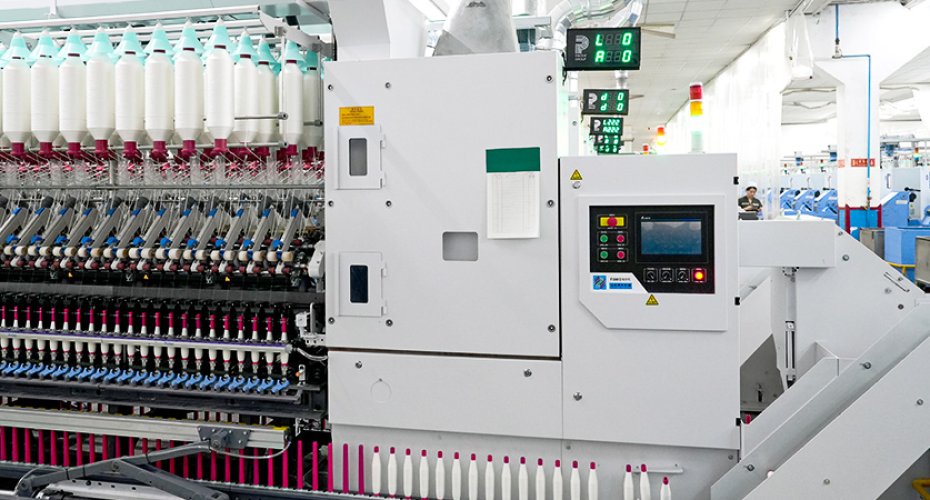

Ring spinning machine FA1569 boasts quick installation, doffing, and dual suction technologies at both the headstock and tailstock. It also features intelligent spinning, reducing energy consumption by 10% compared to current rings. This series of super long ring spinning frames caters to customer demands for long, automated, easy-to-control, and labor-saving equipment, specially designed for high-quality production.

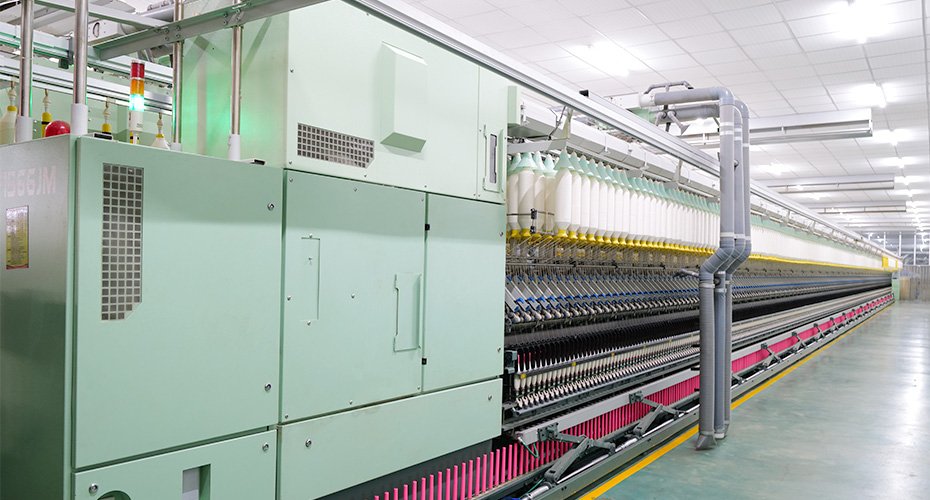

_0003_L1070003
_0003_L1070003
_0002_L1070017

Product details

  • SUPER LONG

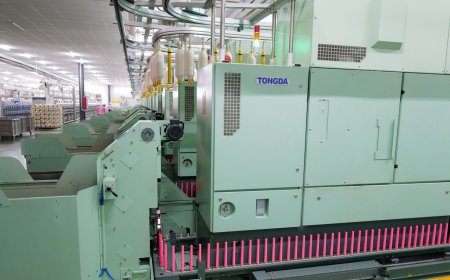

    SUPER LONG

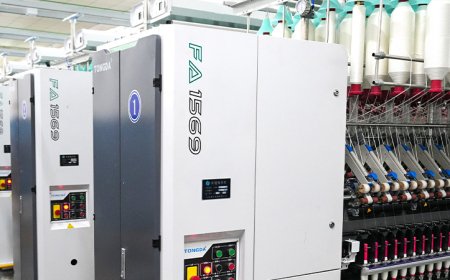

    Spindle unit from 612 to 1824 spindles,prolonged by unit every 36 spindles each. NEW TYPE OVER-PROLONGATION FRAME One-piece intermediate frame,and high-precision spindle rail can meet the requirement of high speed spinning.

  • QUICK-INSTALLING TECHNOLOGY

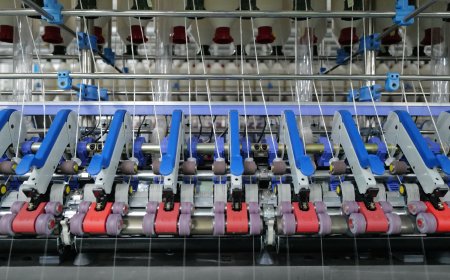

    QUICK-INSTALLING TECHNOLOGY

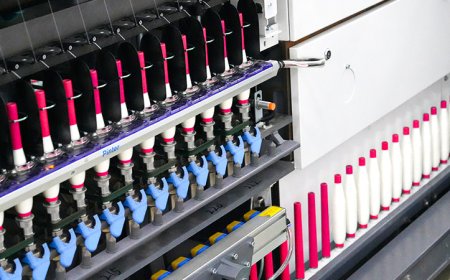

    Quick-installing can be realized by positioned pin and hole. ADJUSTMENT FREE FOR COLUMN OF RING LIFT IT IS A DOMESTIC INNOVATION DUAL-SUCTIONING AT BOTH HEADSTOCK AND TAILSTOCK

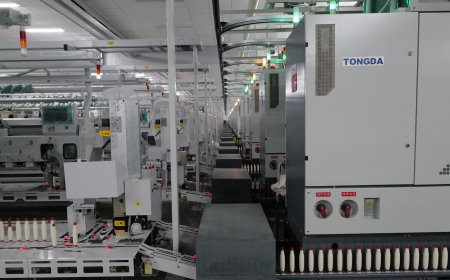

  • NEW TYPE OVER-PRSYNCHRONIZING TECHNOLOGYFOR INTERMEDIATE DRIVE FOR BOTTOM ROLLEROLONGATION FRAME

    NEW TYPE OVER-PRSYNCHRONIZING TECHNOLOGYFOR INTERMEDIATE DRIVE FOR BOTTOM ROLLEROLONGATION FRAME

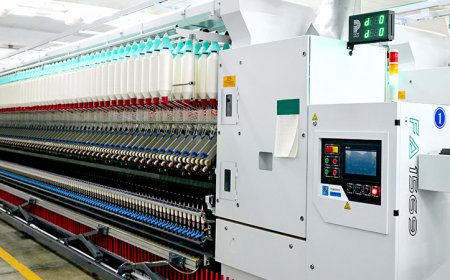

    To be suitable for spinning different category of yarns. QUICK-DOFFING TECHNOLOGY Doffing duration 3 mins

  • ELECTRONIC DRAFTING SYSTEMIS PRECISE AND STABLE

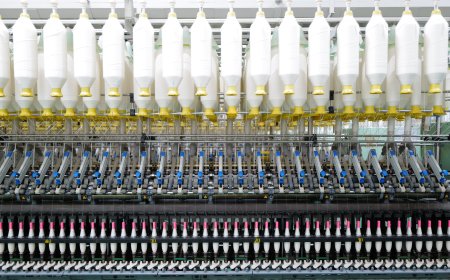

    ELECTRONIC DRAFTING SYSTEMIS PRECISE AND STABLE

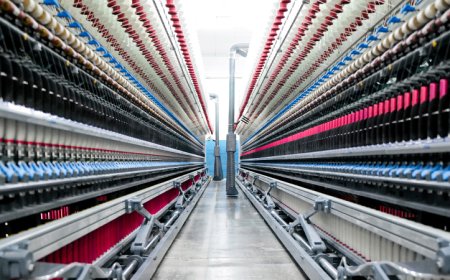

    Adopt high-precision controlling technology,it has the same precise level with mechanical transmission system; Bottom rollers can be stopped first, then started in order to improve the auto-doffing performance with less end-breaks INTELLIGENT SPINNING EXPERT SYSTEM Yarn data can be stored,standard design for u-shape connection, failure illustrated on screen

  • High Speed Package

    High Speed Package

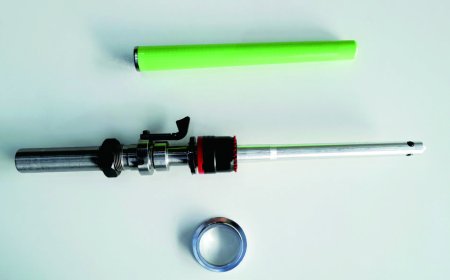

    The highest speed for ring spinning equipped with TONGDA TD8100 Spindle, Bearing steel ring cup PG1-3854, TONGDA super light bobbin spindle speed can reach 25000 rpm plus Production capacity increasing 10% More Energy consumption will be reduced by 7%-10% Low noise level which is 3-5dB lower than othermachines

  • Inside the spindle

    Inside the spindle

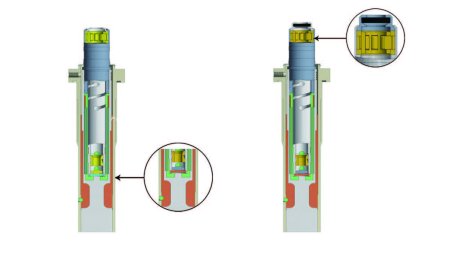

    1.Due to special double elasticity structure design, under high-speed spinning conditions, the spindle tube has multi-level shock-absorbing and noise-reducing functions. 2.Multi-level shock absorption can effectively reduce the pressure on the bearings and extend life time of the spindles, under high-speed spinning conditions. 3.Under the same working conditions, compare with other types of spindles, energy consumption is reduced by 7%-10% with TD8100. 4.At a mechanical speed of 25,000rpm, after testing, the noise of this spindle is 3-5dB lower than other type of spindles. 5. Spindle wharve diameters are available in various specifications: 18.5, 19, 19.5, 20.5 6. Equipped with suitable packages, spindle speed can reach 25000 rpm Plus. 7. Can be equipped with new model yarn grippers. 8. A special sealing structure(patent) is installed with high-quality lubricating oil, and the oil changing cycle is more than 12 months.

Main technical parameters

Spindle gauge

70

Spindle number

from 612-1824.expanded by unit 36 spindles each

Roller

Φ27XΦ27XΦ27orΦ27XΦ30XΦ27 box length 6 spindles

Lift

160,180(with aluminum spindle)

Ring diameter mm

38,40,42,45(PG type)

Suitable for fiber length

less than 40mm,40-51mm.51-60mm

Suitable for yarn density Tex(Ne)

36.4-4.86(16-120)

Suitable for Twist(turns per meter)

230-3000(Wharf diameter 19)

Twist direction

Z with singletension disc,Z and S with dual tension disc

Draft

Total draft 10-60(standard),total draft10-80(optional)

Spindle speed r/min

12000-25000(mechanical speed with inverter)

Spinning driving

driving by disc

Drafting type

3-lineroller,cradle apron(short)plus bottom apron (long).top weighting

Lifting type of ring plate

arm by electronic lifting

Twisting type

by electronic twisting

Doffing type

Auto-doffing

Bobbin lifting rate when doffing

>99.5%

Tube inserting rate

100%

None-endbreak rate when auto-doffing finished

≥97%(for medium count yarn)

Auto-doffng duration

3 minutes
