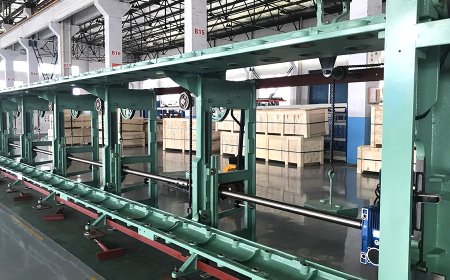

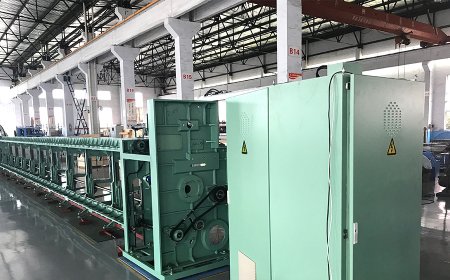

Roving Frame Simplex Spinning Machine FA471

main feature :

Roving Frame Simplex Spinning Machine FA471 automatic doffing roving machine employs intelligent automation control. The spinning process, which includes drafting, twisting, winding, and forming, is controlled by a four-motor linkage mode. This machine was designed with a new concept, offering high standards and developing a new generation of smart, automatic doffing roving machines. It includes features such as spinning molding, exchange, automatic generation head spinning, and more, achieving full process automation control. This results in reduced operating noise and improved part service life.

-2_0000_L1010354
-2_0000_L1010354
-2_0001_L1010367
-2_0002_L1010363

Product details

  •



    FA471 Roving frame simplex spinning machine has three-shaft linkage computerized type high speed suspend flyer roving frames adopt the advanced computer numerical control technique,getting rid of the cone drum structure,mechanical forming and direction transposition structures of former flyer frames.

  •



    The automaticity is high, simplicity of operator, services conveniently, depth wool spinning customer high praise.

  •



    The optimization design new differential mechanism he change transmission stressful condition, increased the design manufacture precision, the solution vibrates in a big way, elevates, the oil leak to be serious warm, the bearing easy to damage technical difficult problem.

Main technical parameters

Suitable for square fiber length

60-200mm

Drawing multiple

4-16

Viscosity range

10-40twist/m

The scope of Article

0.3-1g/m

Feeding range

5-15g/m

Constant speed

the maximum mechanical speed 1200RPM

Maximum process speed 900RPM

Drafting system

A complete unit Chinese brand drafting sysrem (spring weighting arm).

Roller diameter(mm)

φ28.5,φ28.5

Top roller diameter(mm)

φ25,φ28

Drafting range

4.2-12

Mechianical spindle speed(r/min)

1600

Twist range(twist/m)

18.0-80

Bobbin dimentions(mm)

φ45×445

Take up package dimentions(mm)

φ152×40
