Series Fine Openers FA117

main feature :

Fine Opener FA117 is made up of top chute, feed unit, beater unit, grid bar adjusting unit, frame unit. It is used together with fiber separator in scutching process and its gill beater, running at certain speed, exclude trash through mutual function of centrifugal force and grid bar. Fully opened and cleaned material are sent to next process and trash separated are sent to dust filtering system.

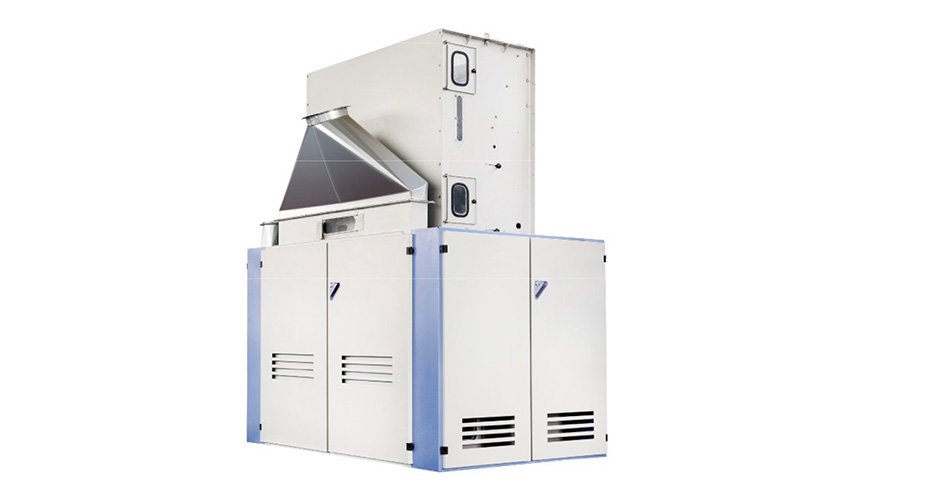

FA117 Series Fine Openers
FA117 Series Fine Openers
117

Product details

FA117 Fine Openers is made up of top chute, feed unit, beater unit, grid bar adjusting unit, frame unit. It is used together with fiber separator in scutching process and its gill beater,running at certain speed, exclude trash through mutual function of centrifugal force and grid bar. Fully opened and cleaned material are sent to next process and trash separated are sent to dust filtering system.


Main technical parameters

Type

FA117

FA117-160

Out put (kg/h)

800

1000

Suitable material

Natural and manmade fiber in Iengthlessthan76mm

Working width(mm)

1060

1600

Feed roller speed (r/min)

18^85, stepless speed adjusting according to output

Gill beater speed (r/min)

480, 540, 600. pulley diameter (Option: Inverter)

changeable accrofing to output

Power installed (KW)

3. 55

5. 1

Profile dimension (L x W x H) (mm)

1560x1520x2870

2100x1520x2870
