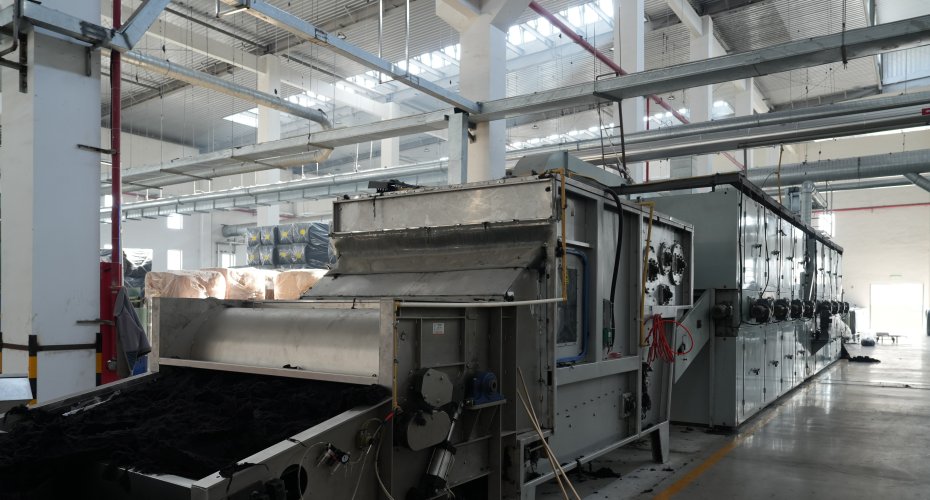

TD-PHG Flat Screen Dryer for Loose Textile Fiber

FAQ

Q1: Which materials can the TD-PHG flat screen dryer process?

A1: It is intended for loose wool, cotton, linen and chemical fiber after dewatering. The fiber type, bulk density, inlet moisture and required outlet moisture should be checked before line planning.

Q2: What are the main working data for this dryer?

A2: The working width is 1760 mm, conveyor travel is 0.538 to 1.211 m/min, steam pressure is listed at 4 kg/cm², and fan speed is 960 rpm. Published moisture regain after drying is no more than 10 percent under stated process conditions.

Q3: What details are needed for a machine proposal?

A3: Please share the fiber type, wet throughput in kg/h, inlet moisture, required outlet moisture, working hours, available steam pressure, power supply, room temperature, factory space and the machines before and after the dryer. Middle East projects should also state the site voltage, frequency, dust level and ventilation plan.

Product Advantages

1. 1.Continuous Material Flow

The moving screen carries loose fiber through the drying section, helping connect dewatering, wet opening, feeding and later baling work in one production line.

2. 2.1760 mm Working Width

The 1760 mm conveyor width provides a broad fiber bed for loose cotton, wool, linen and chemical fiber processing.

3. 3.Variable Conveyor Travel

A travel range of 0.538 to 1.211 m/min lets operators match residence time with fiber type, inlet moisture and fiber-layer depth.

4. 4.Steam Coil Heating

A spiral-fin coil radiator uses steam at a listed working pressure of 4 kg/cm². This heating method fits mills that already operate a central steam system.

5. 5.Defined Outlet Moisture Target

The published data states a moisture regain of no more than 10 percent after drying. Final results depend on inlet moisture, feed mass, layer depth, steam conditions and room climate.
