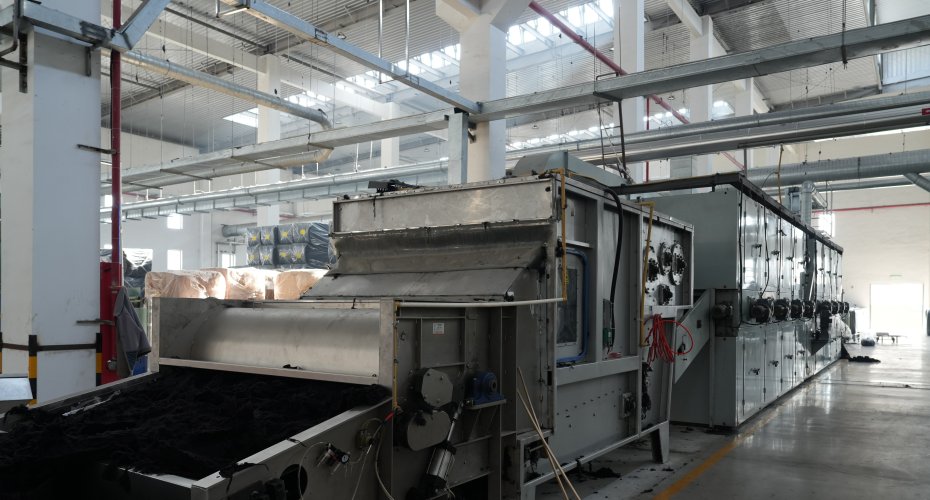

TD-YHG Rotary Screen Dryer for Loose Textile Fiber

FAQ

Q1: Which fibers can the TD-YHG rotary screen dryer process?

A1: The published application covers loose viscose, cotton, linen, wool and chemical fiber. Final settings depend on fiber length, bulk density, inlet moisture, layer condition and the required outlet moisture.

Q2: What is the difference between the TD-YHG and a flat screen dryer?

A2: The TD-YHG uses a rotary screen and beater arrangement, while a flat screen dryer carries fiber on a moving conveyor. The choice depends on fiber handling, wet throughput, inlet moisture and the planned line arrangement.

Q3: What details are needed for a dryer proposal?

A3: Please share the fiber type, wet throughput in kg/h, inlet moisture, required outlet moisture, heating medium, steam data, working hours, power supply and factory space. Middle East projects should also state the site voltage, frequency, room temperature, dust level and ventilation plan.

Product Advantages

1. 1.Rotary Screen Material Movement

The rotary screen moves loose stock through the drying zone while heated air reaches the fiber mass. This arrangement serves wet fiber that requires movement during moisture removal.

2. 2.Beater-Assisted Fiber Separation

The published beater speed is 648 rpm. Beater motion supports fiber separation during drying and helps reduce compact wet clumps before discharge.

3. 3.1800 mm Working Width

The 1800 mm working width provides space for loose viscose, cotton, linen, wool and chemical fiber during continuous processing.

4. 4.Multiple Fiber Applications

The dryer can process several natural, regenerated and synthetic fibers. Final operating data should match the fiber type, bulk density, inlet moisture and required outlet condition.

5. 5.Dyeing Line Connection

The TD-YHG can work with wet opening and fiber feeding equipment after dyeing, bleaching and dewatering. This arrangement supports a connected path toward drying and later baling work.
