Working mode | External warp for movable frame loom |
Power mode | Electric, 100W×36V×5Ax18000 rpm, DC motor, manual, small amount of trial knot |
Warp knotting range | 2S-200S, 20D - 3000D |
Speed regulation mode | Rotary stepless speed regulation |
Working range | 1m-4m and other specifications |
FAQ

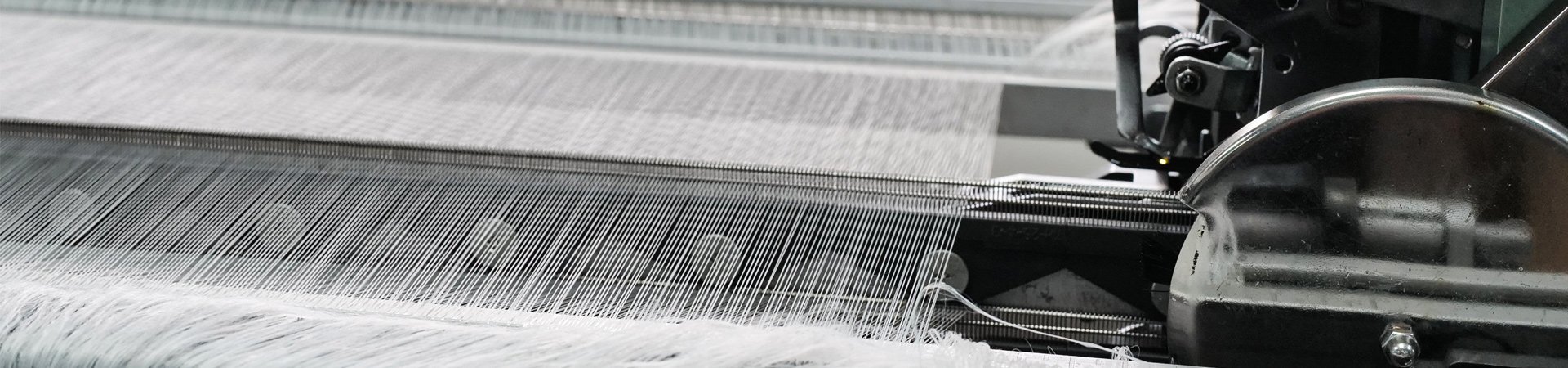

Q1: What is the TD198 automatic warp knotting machine used for?
A1: The TD198 connects a new warp sheet to the remaining warp ends during loom beam change. The tied ends can then carry the new yarn through the current heddles and reed, reducing the need to draw every warp end again.
Q2: What yarn range, working width and knotting rate are published for the TD198?
A2: Published data covers 2S–200S spun yarn, 20D–3000D filament yarn and working widths of 1–4 m. The listed peak rate is 600 knots per minute. Actual running rate depends on yarn material, fineness, twist, sizing and warp density.
Q3: What information is needed for a TD198 machine proposal?
A3: Please provide the loom type and model, working width, old-warp yarn, new-warp yarn, count or denier, ply, twist, sizing condition, total warp ends, warp density and beam details. Middle East buyers should also share local mains voltage, frequency and the needed 36 V DC supply arrangement.
Product Advantages
1.Broad Spun and Filament Yarn Scope
Published data covers spun yarn between 2S and 200S and filament yarn between 20D and 3000D. This range allows the machine plan to cover varied yarn fineness levels after sample confirmation.

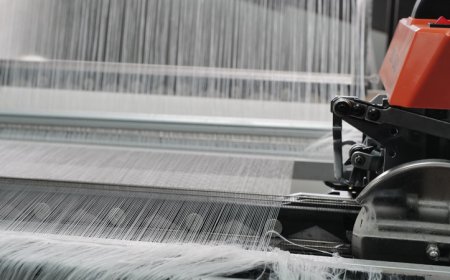

2.Reduced Manual Drawing During Beam Change
The machine ties the new warp sheet to the remaining warp ends. This helps retain the current heddle and reed path when the next weaving plan uses a compatible warp arrangement.
3.Movable Frame for 1–4 m Warp Sheets
The external-warp working mode uses a movable frame for widths between 1 and 4 m. Frame width should match the loom reed space, warp sheet width and workshop layout.

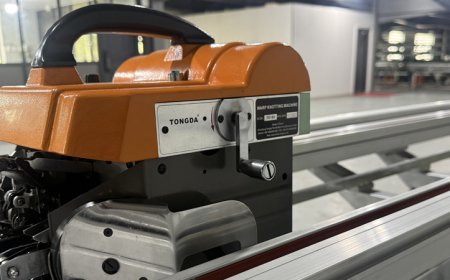

4.Rotary Stepless Rate Control
The operator can set the knotting rate according to yarn fineness, surface condition, sizing and warp density. The listed peak rate is 600 knots per minute under the proper yarn and setup conditions.
5.Low-Voltage DC Drive Arrangement
Published electrical data lists a 100 W, 36 V, 5 A DC drive and a motor speed of 18,000 rpm. Local mains input and the power conversion unit should be confirmed separately for each project.
