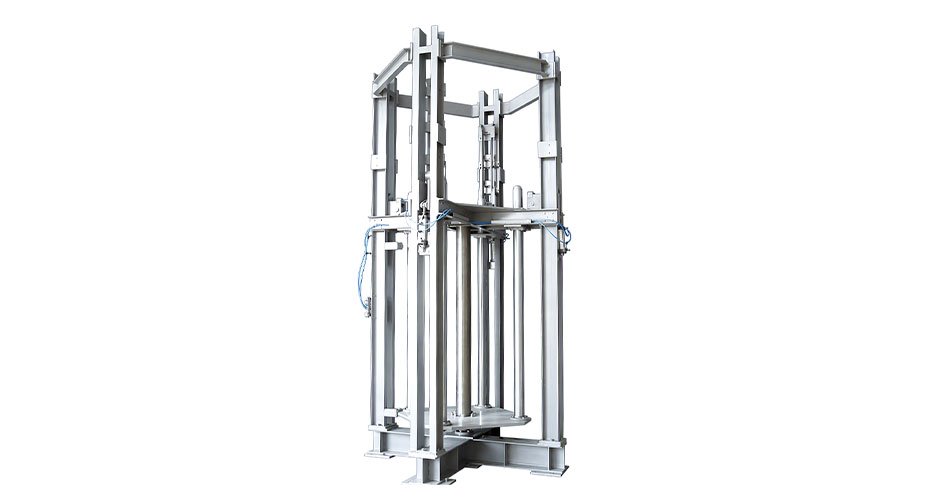

TDB Hydraulic Fiber Cake Tipping Machine

FAQ

Q1: Where is the TDB cake tipping machine used in a loose fiber dyeing line?

A1: The TDB is installed after the dyeing or bleaching stage. It releases the wet fiber cake out of the carrier while retaining the cake form, preparing the material for transfer to the wet opening section.

Q2: What information is needed to confirm carrier compatibility?

A2: Please provide the carrier outer diameter, inner diameter, height, base structure, lifting points, wet cake diameter, cake height, wet weight, required tipping direction and transfer height. Drawings and photos are recommended before machine engineering begins.

Q3: What site data should a Middle East buyer provide?

A3: Please provide the local voltage, frequency, compressed-air pressure, available floor height, foundation conditions, drainage layout and hydraulic station position. Ambient temperature, dust conditions and hydraulic-oil cooling needs should also be checked for hot-climate operation.

Product Advantages

1. 1.Formation-Preserving Cake Release

The machine tips the dyed or bleached fiber cake out of the carrier while retaining its overall form. This prepares the wet cake for controlled transfer to the following opening stage.

2. 2.Hydraulic Handling of Wet Fiber Loads

A 16 MPa hydraulic circuit and a listed hydraulic force of 19,635 kg provide mechanized movement for dense wet fiber cakes. Actual operating load must match the carrier geometry, cake weight and tipping position.

3. 3.Process Link Between Dyeing and Opening

The TDB creates a defined handling step after loose fiber dyeing or bleaching. The released cake can move toward the wet opening section with less direct lifting work.

4. 4.Defined Power and Air Requirements

The published utility data includes 15 kW installed power and 0.6 MPa compressed air. These values help mills prepare the electrical and air connections during line planning.

5. 5.Listed Main-Body Dimensions

The main body measures approximately 2000 × 2000 × 3500 mm and weighs about 2.2 tons. The hydraulic station, maintenance access, transfer area and drainage space must be included in the site layout.
