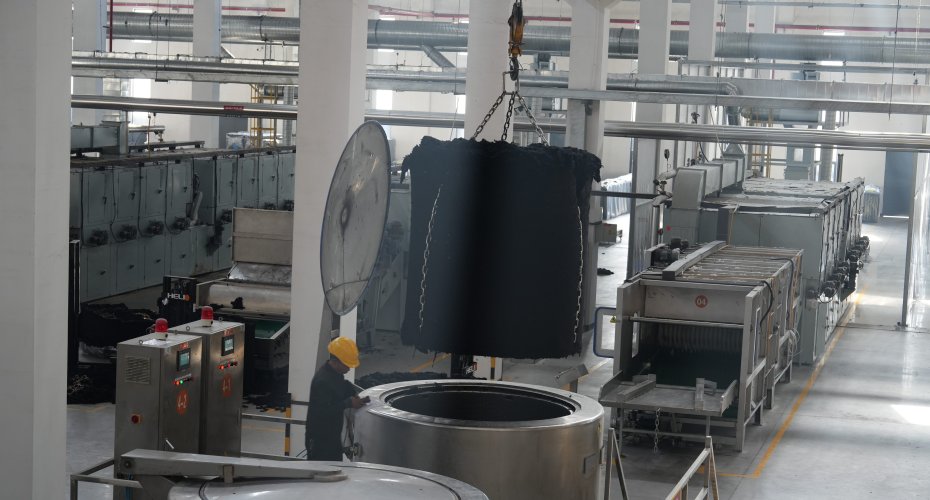

TD-TS HYDRO-EXTRACTOR

main feature :

Suitable for extracting of hank yarns, woven textiles, knits, skinns, piece goods, etc. at high performance with minimum consumption of energy and time.

High quality stainless steel inner drum and outer basket for long service time.

The inner drum features rim, suitable for manual loading and unloading.

Super silence and super balance for excellent working environment.

This extractor uses the gliding support construction. The motor of rotating inner drum of the extractor is mounted on the center of the machine, so that, when the machine rotates at high speed, it does not cause neither noise nor shake.

Advanced inverter control for adjustable rotating speed and low energy consumption.

The extractor, since the moment it starts working, raises its speed slowly and automatically from 10r.p.m. to high speed, due to its electric inverter, so that it keeps the consumption of energy at the minimum level.

The extractor uses electrical brake instead of mechanical brakes thus reduces its mechanical maintenance greatly.

Optional: pneumatic lid opening device for more safe and convenient operation.

Optional: special fabric loading device is made of stainless steel. It is suitable for loading and unloading of knits, woven textiles, etc. for more convenient operation and on damage or pollution to the fabric.

TD-TS-HYDRO-EXTRACTOR

Main technical parameters

ModeDiameter of Basket (mm)

Height of

Basket (mm)

Basket

Contents (ltr.)

Dry (kgs)Wet (kgs)

Motor PoWer

(kw)

Speed rpm
TDCO-800800500250501502.2750-960
TDCO-120012006006501103505.5750-960
TDCO-15001500600100020060010750-960
TDCO-H15001500700120022065010750-960
TDCO-180018008001900320100015600-750
TDCO-H1800180010002350400120018.5600-750
TDCO-200020008002400400120018.5600
TDCO-H2000200010003000450135022600



FAQ

Q1: What textile materials can the TDCO hydro extractor process?

A1: The machine is intended for hank yarns, woven textiles, knitted goods, skeins and piece goods after washing, bleaching or dyeing. Loose fiber processing requires technical confirmation of the basket, carrier and loading method.

Q2: What capacities are available in the TDCO range?

A2: Eight models are listed with basket volumes of 250 to 3000 L. Published dry-load values cover 50 to 450 kg, while wet-load values cover 150 to 1350 kg. The final model depends on material form, liquid retention and batch weight.

Q3: What information is needed for a Middle East project?

A3: Please provide the textile material, dry batch weight, wet batch weight, current moisture level, required moisture level after extraction, loading method, daily batch quantity, local voltage, frequency, drainage conditions and floor plan. Ambient temperature and electrical supply details should also be confirmed before machine engineering.


Product Advantages

  1. 1.Eight Basket Size Options

The TDCO range includes eight models with basket diameters of 800, 1200, 1500, 1800 and 2000 mm. Basket volume options cover 250 to 3000 L for different textile batch requirements.

  1. 2.Defined Dry and Wet Load Data

Published dry-load values cover 50 to 450 kg, while wet-load values cover 150 to 1350 kg. Separate load data helps mills plan handling before and after centrifugal water removal.

  1. 3.Centrifugal Moisture Removal

Basket rotation separates excess water after washing, bleaching or dyeing. Lower moisture entering the next drying stage can reduce the thermal load placed on downstream drying equipment.

  1. 4.Several Textile Applications

The machine can process hank yarns, woven textiles, knitted goods, skeins and piece goods. Material form, batch weight and loading method must be confirmed for each project.

  1. 5.Model-Matched Motor and Speed Data

Motor ratings cover 2.2 to 22 kW, while listed rotational speeds cover 600 to 960 rpm. Each model combines basket size, load data, motor rating and rotational speed for its planned batch range.
