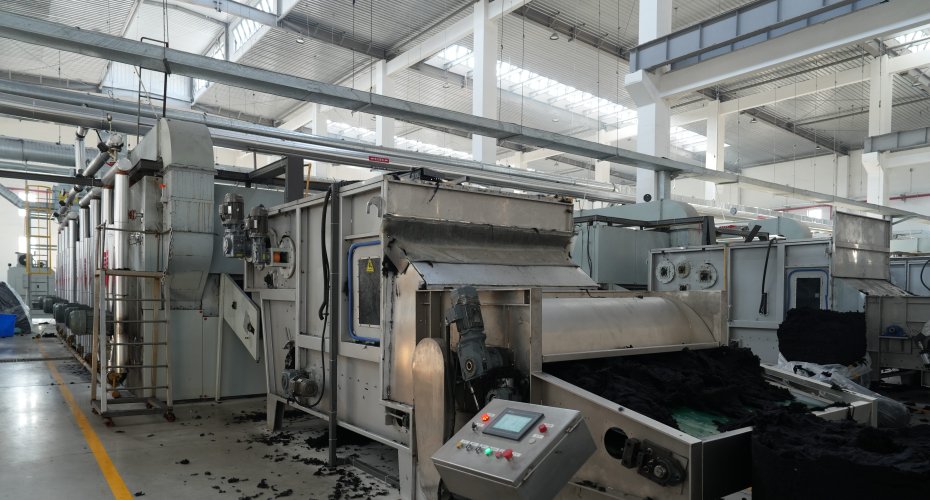

TDG Loose Fiber Feeding Machine for Drying Lines

FAQ

Q1: What is the difference between the TDG feeder and the TDSK wet fiber opener?

A1: The TDSK separates compacted wet fiber after dyeing and moisture removal. The TDG receives opened fiber, levels it across the feeding path and transfers it toward the dryer.

Q2: What is the production capacity of the TDG feeding machine?

A2: The published capacity is 15 tons per day with a working width of 1800 mm. Actual output depends on fiber type, incoming moisture, bulk density, operating hours and the intake capacity of the connected dryer.

Q3: What information is needed for a Middle East project?

A3: Please provide the fiber type, incoming moisture, bulk density, required daily output, upstream discharge height, dryer inlet width, dryer intake, local voltage, frequency and floor plan. Wet-area drainage, workshop temperature and cleaning access should also be confirmed before machine engineering.

Product Advantages

1. 1.1800 mm Fiber Feeding Width

The TDG provides a published working width of 1800 mm for opened wet fiber. This width can be coordinated with the upstream opening section and the dryer inlet.

2. 2.Leveling Rake for Material Distribution

The long-handled leveling rake uses spike elements with 27 mm spacing. It helps spread loose fiber across the feeding path before the material reaches the beater.

3. 3.Eight-Vane Beater Arrangement

The 500 mm beater uses eight vanes with 4 mm polyurethane rubber material. The arrangement assists fiber distribution and transfer toward the drying section.

4. 4.Conveyor and Wet-Area Materials

Published material data includes 1Cr18Ni9Ti and 1Cr18Ni9 steel plate, synthetic-fiber canvas lining and a rubber conveyor belt. These parts are arranged for handling moist textile fiber.

5. 5.Defined Line Capacity and Dimensions

The listed capacity is 15 tons per day. The machine measures 2760 × 2950 × 2255 mm and weighs approximately 3.5 tons, helping mills plan the feeding area and line connection.
