| Model | Layers | Package QTY | Max. Loading (kg) | Total Power (kw) | Lifting Height (mm) |
| TD211 - 22 | 3 | 3 | 3.3 | 3
| 2000 |
| TD211 - 25 | 6 | 6 | 6.6 | 4 | 3860 |
| TD211 - 43 | 4 | 16
| 17.6
| 5.5 | 3200 |
| TD211 - 43 | 6 | 24 | 26.4 | 7 | 3850 |
| TD211 - 53 | 6 | 36 | 39.6 | 7 | 3850 |
| TD211 - 53 | 9 | 54 | 59.4 | 9 | 5000 |
| TD211 - 85 | 9 | 81 | 89.1 | 12.5 | 5050 |
| TD211 - 105 | 9 | 108 | 118.8 | 16.5 | 5100
|
| TD211 - 110 | 9 | 162 | 178.2 | 20 | 5150 |
| TD211 - 120 | 9
| 324 | 356.4 | 38.5 | 5350
|
| TD211 - 120 | 12 | 432 | 475.2 | 38.5 | 6300 |
| TD211 - 130 | 9 | 369 | 405.9 | 46.5 | 5450 |
| TD211 - 130 | 12 | 492 | 541.2 | 46.5 | 6350 |
| TD211 - 145 | 9 | 486 | 534.6 | 46.5 | 5500
|
| TD211 - 145 | 12 | 648 | 712.8 | 56.5 | 6400 |
| TD211 - 166 | 9 | 621 | 683.1 | 76.5 | 5600
|
| TD211 - 166 | 12 | 828 | 910.8 | 76.5 | 6900 |
| TD211 - 186 | 12
| 1080
| 1188 | 92.2 | 6950 |
| TD211 - 200 | 12 | 1296 | 1425.6 | 112.2 | 7000 |
| TD211 - 200 | 15 | 1620
| 1782 | 134.2 | 7800 |
| TD211 - 226 | 15 | 2010 | 2211 | 188 | 8150 |
| TD211 - 226 | 19 | 2546 | 2800.6 | 223 | 9450 |
| TD211 - 256 | 15 | 2490 | 2739 | 223 | 8200 |
| TD211 - 256 | 19 | 3154 | 3469.4 | 263 | 9500 |
FAQ
Q1: What yarn materials can the TDHG rapid dryer process?
A1: The published information focuses on package yarn and refers to pure cotton, chemical-fiber and blended yarn materials. Compatibility with polyester, acrylic, wool, rayon or specialty yarn should be confirmed using the fiber type, package dimensions, winding density and moisture target.
Q2: How does the sealed circulation drying process work?
A2: The yarn carrier is placed inside the drying vessel. Pressure dewatering removes part of the retained liquid, after which circulating hot air carries moisture through the condenser and moisture-separation section. Air circulation continues until the required yarn moisture level is reached.
Q3: What data should be provided before requesting a TDHG dryer proposal?
A3: Please provide the yarn material, package type, package diameter and height, winding density, package quantity, batch weight, initial moisture, required final moisture and planned drying time. Local voltage, frequency, steam conditions, cooling-water temperature, workshop temperature, lifting height and available floor space should also be provided.
Product Advantages

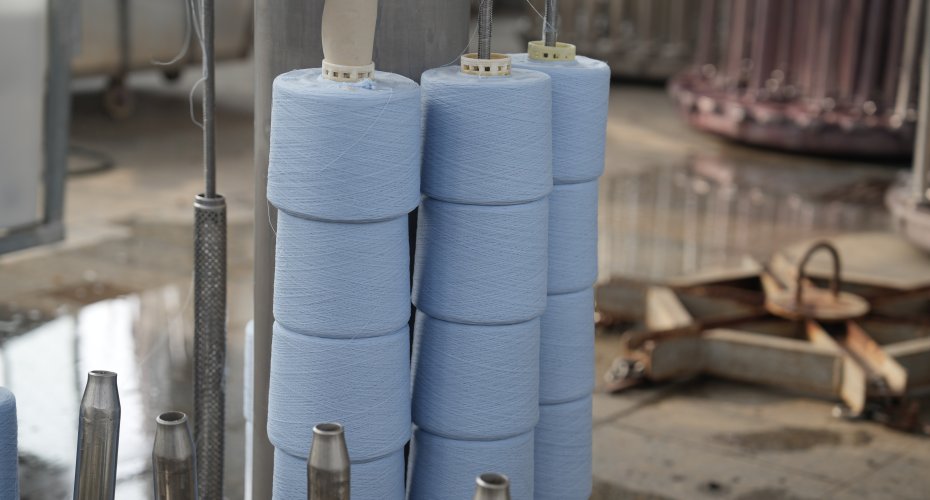

1.Pressure Dewatering and Drying in One Vessel
The package carrier can remain inside the enclosed vessel during pressure dewatering and hot-air drying. This arrangement reduces yarn handling between separate process stages.
2.Sealed Hot-Air Circulation
Hot air circulates through the yarn packages inside a closed vessel. The enclosed circuit limits contact with workshop dust and changing ambient humidity during the drying cycle.
3.Condenser Heat Recovery
The condenser removes moisture carried by the circulating air. Recovered thermal energy can assist clean hot-water preparation for a later dyeing process when the factory utility arrangement permits.
4.Compact Process Footprint
Combining pressure dewatering, air circulation and moisture separation within one system reduces the need for several separate processing areas. Loading, unloading and lifting space should be included in the factory layout.
6.Moisture Control and Yarn Care
The drying temperature decreases as moisture leaves the yarn. Hot air acts on the yarn while moisture content is higher, and evaporative cooling helps manage the yarn condition during the cycle.
